Red cylindrical rotary encoder with radial cable, IP50 rating

Autonics Corp

Autonics Corp E80H30-1024-3-T-24 rotary encoder 1024P/R 12-24VDC IP50

SKU CH-3FMK-4KFKM MPN E80H30-1024-3-T-24

Incremental rotary encoder delivering 1024 pulses per revolution with a 30 mm shaft, totem-pole output and IP50 protection for 12-24 VDC systems

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Precise positioning with 1024 pulses per revolution
  • Reliable 12-24 VDC supply with ±5 % tolerance
  • Fast 200 kHz response for high-speed motion control
  • Rugged IP50 housing resists dust ingress
  • Low 0.0196 N·m starting torque reduces mechanical load

Application fit

The Autonics E80H30-1024-3-T-24 is an incremental rotary encoder built for motion-feedback tasks that require 1024 pulses per revolution. It serves engineers and technicians integrating position sensing into automation, test rigs or motor-control systems operating on 12-24VDC supplies.

Signal and wiring

Totem-pole control output delivers a robust square-wave signal compatible with standard counter inputs, while the radial cable exit simplifies routing in tight panels. The 200kHz maximum response frequency supports speeds up to 3600rpm without losing counts, and the low starting torque of 0.0196N.m reduces load on small shafts.

Mechanical integration

A 30mm hollow shaft slides onto existing motor or actuator shafts, eliminating the need for couplings in many designs. IP50 protection guards against dust ingress in indoor cabinets, and the red aluminium housing resists corrosion in typical industrial environments.

Highlights

  • Precise positioning with 1024 pulses per revolution
  • Reliable 12-24 VDC supply with ±5 % tolerance
  • Fast 200 kHz response for high-speed motion control
  • Rugged IP50 housing resists dust ingress
  • Low 0.0196 N·m starting torque reduces mechanical load

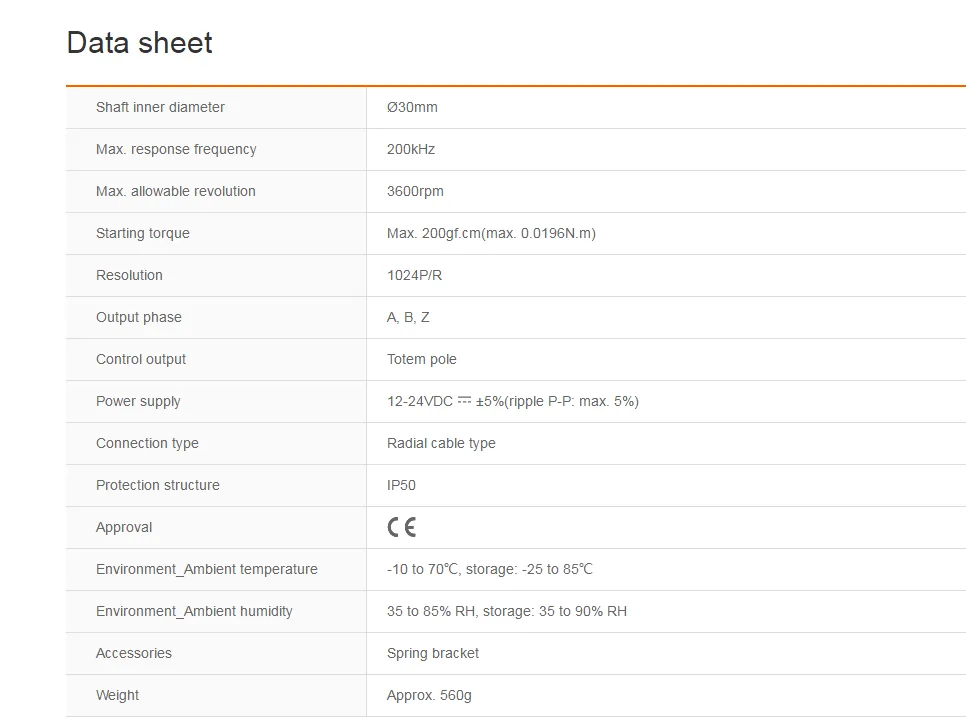

Specifications

BrandAutonics
ModelE80H30-1024-3-T-24
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What maintenance will the Ø30mm shaft need after long runs at 3600rpm?

The encoder is sealed to IP50; the only wear item is the Ø30mm shaft bearing, which should be inspected periodically and replaced if radial play exceeds the 200gf·cm starting-torque spec

Which limit appears first during continuous operation — the 200kHz response frequency or the 3600rpm speed rating?

At 1024 pulses per revolution, 3600rpm generates an output frequency below the 200kHz ceiling, so the 3600rpm mechanical limit is reached before the electronic limit

How much heat and noise does the totem-pole output produce when powered at 24VDC all day?

The totem-pole driver draws only the current required by the 12-24VDC supply; with no internal fan and an IP50 enclosure, audible noise is negligible and heat stays low enough for continuous duty
