Red cylindrical incremental rotary encoder with axial cable and 8mm shaft

Autonics Corp

Autonics Corp E50S8-3600-3-N-24 incremental rotary encoder 3600 P/R NPN 12-24 VDC IP50

SKU CH-AHC1-WRTFP MPN E50S8-3600-3-N-24

Incremental rotary encoder delivering 3600 pulses per revolution with NPN open-collector output for 12-24 VDC systems

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • High resolution 3600 pulses per revolution for precise positioning
  • NPN open collector output simplifies integration with standard PLC inputs
  • Wide 12 to 24 VDC supply range suits common industrial power rails
  • Fast 300 kHz response frequency supports high-speed motion control
  • IP50 rated housing protects against dust ingress in factory environments

Industrial Motion Feedback

The Autonics E50S8-3600-3-N-24 is an incremental rotary encoder that converts shaft rotation into 3600 pulses per revolution. It operates on a 12-24VDC supply and uses an NPN open collector output stage. The unit features an 8mm solid shaft and an axial cable connection rated to IP50 protection.

Suited for precision positioning

Engineers designing servo loops, CNC axes or conveyor synchronisation will value the 300kHz response frequency and 5000rpm mechanical limit. Starting torque stays below 70gf.cm so the encoder adds minimal drag to high-speed spindles. Applications needing absolute position data or hollow-shaft mounting must select a different encoder type.

Resolution drives selection

The fixed 3600P/R resolution sets the smallest detectable angular step for the control system. If the motion controller requires a higher or lower pulse count per turn, this model cannot be reconfigured and another variant must be chosen.

Highlights

  • High resolution 3600 pulses per revolution for precise positioning
  • NPN open collector output simplifies integration with standard PLC inputs
  • Wide 12 to 24 VDC supply range suits common industrial power rails
  • Fast 300 kHz response frequency supports high-speed motion control
  • IP50 rated housing protects against dust ingress in factory environments

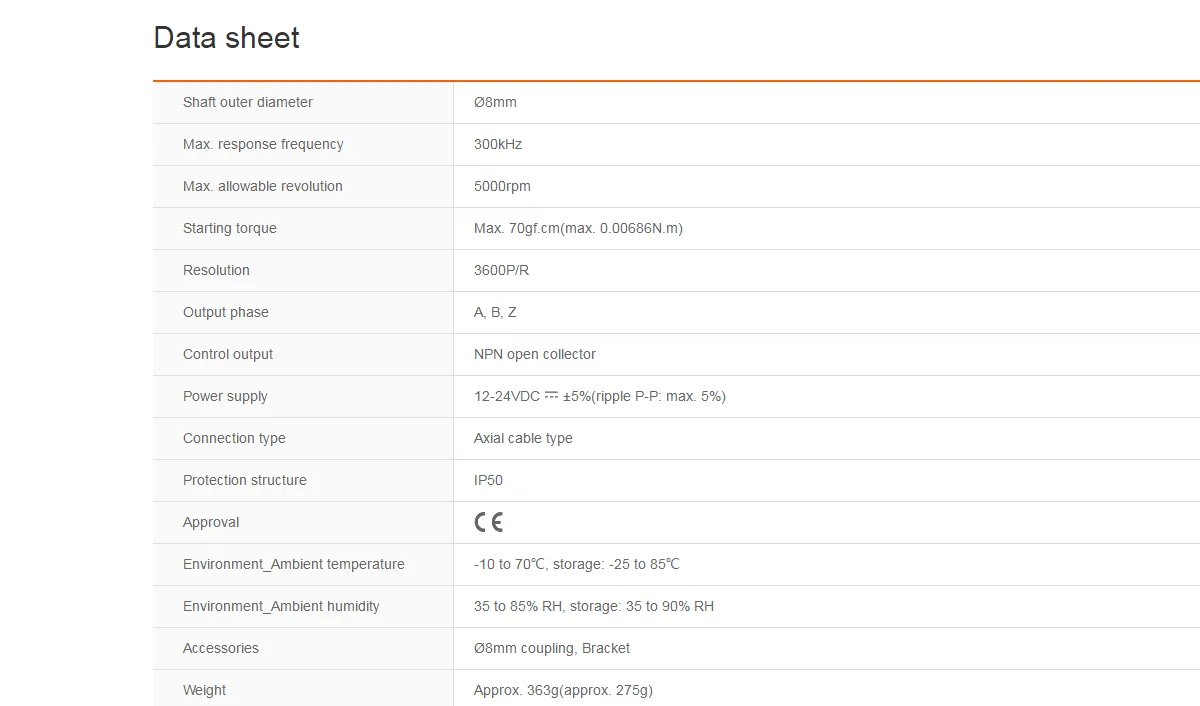

Specifications

BrandAutonics
ModelE50S8-3600-3-N-24
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What does the 300 kHz response frequency limit in practice?

The 300 kHz maximum response frequency caps the usable pulse rate, so shaft speed and resolution must stay within this bandwidth to avoid missed counts.

What shaft size and mounting style does the Ø8 mm shaft require?

The encoder has an 8 mm diameter solid shaft designed for axial cable mounting; a matching 8 mm bore coupling or hub is needed to connect it to the driven shaft.

How is the NPN open-collector output wired, and what supply range applies?

Connect the NPN open-collector outputs to pull-up resistors tied to a 12 to 24 VDC supply within ±5 % ripple; the encoder draws power from the same 12 to 24 VDC source.
