Red cylindrical rotary encoder with axial cable, IP50 rated

Autonics Corp

Autonics Corp E50S8-2500-3-V-5 rotary encoder incremental 2500P/R 5VDC IP50

SKU CH-XPYA-NDR4W MPN E50S8-2500-3-V-5

Incremental rotary encoder delivering 2500 pulses per revolution at 5 VDC with a 300 kHz response frequency and IP50 protection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • High-resolution positioning with 2500 pulses per revolution
  • Fast signal response up to 300 kHz maximum frequency
  • Reliable operation at speeds up to 5000 rpm
  • Low starting torque of only 70 gf·cm for smooth rotation
  • Protected against dust ingress with IP50 rating

Rotary encoder for precision positioning

The Autonics E50S8-2500-3-V-5 is an incremental rotary encoder delivering 2500 pulses per revolution. It operates on a 5 VDC supply with a ±5 % tolerance and provides a voltage control output. The Ø8 mm shaft suits motion-control tasks that require accurate angular feedback.

Thermal and electrical behaviour in normal use

Maximum response frequency reaches 300 kHz while the shaft can spin up to 5000 rpm. Starting torque is limited to 70 gf·cm (0.00686 N·m), keeping mechanical drag low. The IP50 housing protects internal optics from dust ingress during continuous operation.

Axial cable and warranty coverage

An axial cable connection simplifies wiring in tight enclosures by routing the leads parallel to the shaft axis. The unit ships as a single piece in a box and carries a three-year parts warranty with one year of labour coverage. Buyers needing a hollow-shaft or absolute-output encoder should consider other models.

Highlights

  • High-resolution positioning with 2500 pulses per revolution
  • Fast signal response up to 300 kHz maximum frequency
  • Reliable operation at speeds up to 5000 rpm
  • Low starting torque of only 70 gf·cm for smooth rotation
  • Protected against dust ingress with IP50 rating

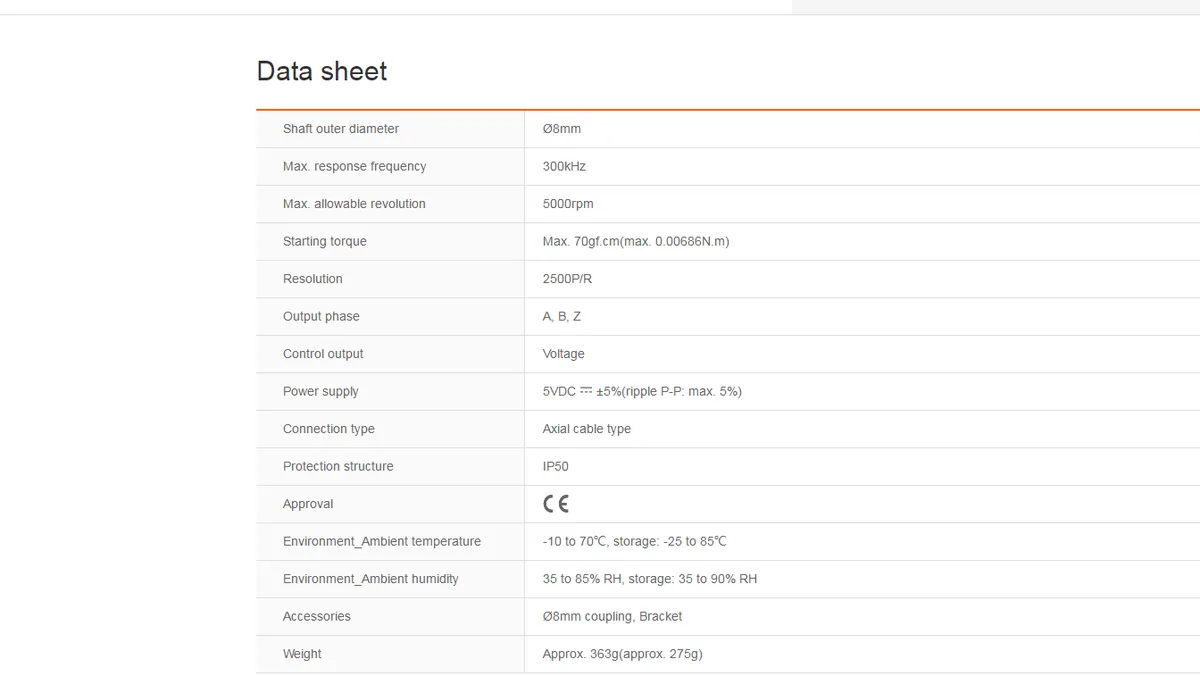

Specifications

BrandAutonics
ModelE50S8-2500-3-V-5
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I mount the E50S8-2500-3-V-5 encoder with its Ø8 mm shaft and axial cable?

Slide the Ø8 mm shaft into the mating bore, secure with a coupling or set screw, then route the axial cable away from moving parts; the step often missed is checking shaft alignment to avoid excess starting torque.

What maintenance will the E50S8-2500-3-V-5 need over time?

Inspect the axial cable for wear and verify the IP50 seal remains intact; the bearing preload is rated for a maximum starting torque of 70 gf·cm (0.00686 N·m), so replace the unit if torque rises above that value.

At what speed does the 2500 P/R resolution hit its electrical limit on this encoder?

The maximum response frequency is 300 kHz, which corresponds to 5000 rpm at 2500 pulses per revolution; sustained operation beyond that speed will lose counts first.
