Red cylindrical rotary encoder with axial cable and Ø8mm shaft

Autonics Corp

Autonics Corp E50S8-1000-3-N-24 1000P/R incremental rotary encoder NPN 12-24VDC IP50 electrician tool

SKU CH-TWX2-PX6Y4 MPN E50S8-1000-3-N-24

Incremental rotary encoder delivering 1000 pulses per revolution with NPN open-collector output, 12-24 VDC supply, 300 kHz response and IP50 protection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Precise positioning with 1000 pulses per revolution
  • Reliable NPN open-collector output for clean signals
  • Operates on 12-24 VDC with 5 % ripple tolerance
  • Handles up to 5000 rpm for high-speed applications
  • IP50 protection resists dust in industrial environments

Autonics 1000P/R incremental encoder

The Autonics E50S8-1000-3-N-24 is an incremental rotary encoder delivering 1000 pulses per revolution. It operates on a 12-24VDC supply and provides NPN open-collector output through an axial cable connection. The unit has an IP50 protection rating and a red finish.

Suited for position feedback in motion systems

This encoder suits engineers integrating position feedback into motor drives, conveyor systems or automation equipment that accept NPN signals. It is not suited for applications requiring absolute position retention after power loss or environments needing higher ingress protection than IP50.

300kHz maximum response frequency

The encoder’s maximum response frequency is 300kHz, which determines the highest rotational speed it can reliably track at full resolution. Buyers must verify that their controller input specification meets or exceeds this figure for the intended operating speed.

Highlights

  • Precise positioning with 1000 pulses per revolution
  • Reliable NPN open-collector output for clean signals
  • Operates on 12-24 VDC with 5 % ripple tolerance
  • Handles up to 5000 rpm for high-speed applications
  • IP50 protection resists dust in industrial environments

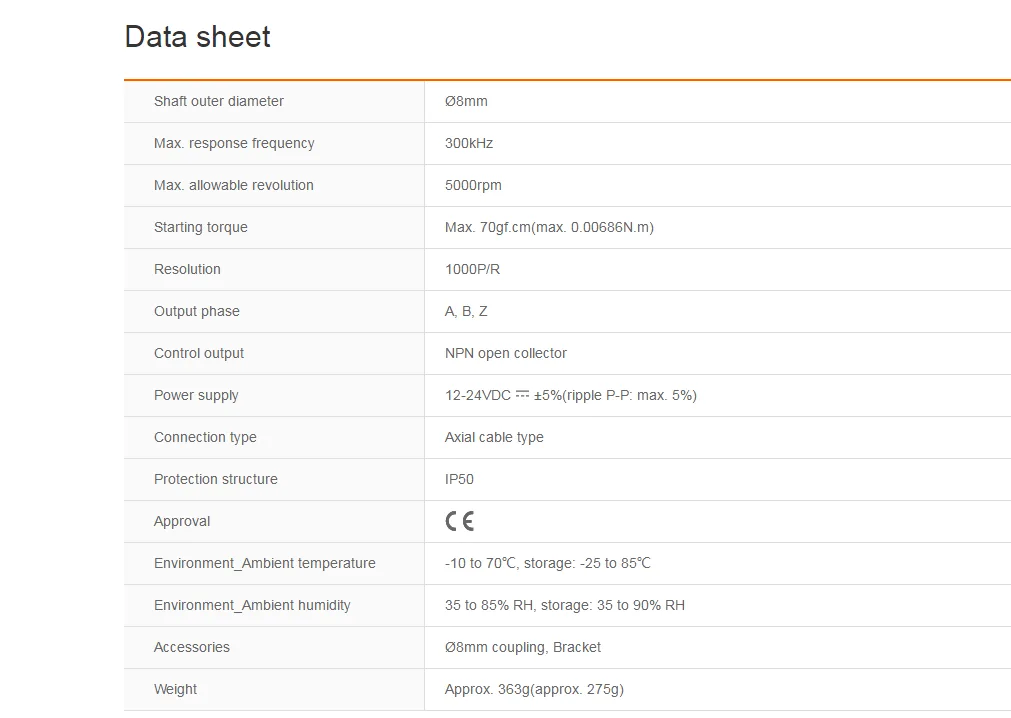

Specifications

BrandAutonics
ModelE50S8-1000-3-N-24
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What comes in the box and do I need a separate cable or connector?

The encoder is supplied as one unit in a box with an axial cable already attached; no extra cable or connector is required for basic installation.

Should I choose the 1000 P/R version or a different resolution for my application?

This model is fixed at 1000 pulses per revolution; select it when that resolution matches the positioning granularity your controller expects.

How does the 300 kHz maximum response frequency affect real-world speed measurement?

At 300 kHz the encoder can reliably track shaft speeds up to 5000 rpm, so the output stays accurate throughout the full mechanical speed range.
