Small red cylindrical rotary encoder with axial cable

Autonics Corp

Autonics Corp E50S8-100-3-T-5 rotary encoder incremental 100P/R 5VDC

SKU CH-64W8-Y1BJX MPN E50S8-100-3-T-5

Incremental rotary encoder delivers 100 pulses per revolution at up to 5000 rpm with 300 kHz response and 5 VDC totem-pole output

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 100 pulses per revolution for precise position feedback
  • Totem pole output ensures reliable 5 VDC signal transmission
  • 300 kHz response frequency supports high-speed motion control
  • 5 000 rpm maximum speed suits demanding rotary applications
  • IP50 rating protects internal components from dust ingress

Incremental rotary encoder for position feedback

This Autonics E50S8-100-3-T-5 encoder delivers 100 pulses per revolution through a totem-pole output. It operates on a 5 VDC supply with a maximum response frequency of 300 kHz. The Ø8 mm shaft supports speeds up to 5000 rpm with a starting torque no greater than 70 gf·cm. An axial cable exits the IP50-rated housing.

Suited for precision motion control.

Engineers building CNC axes, servo loops or measurement rigs that need clean digital quadrature signals will find the resolution and speed rating appropriate. The IP50 seal only blocks particles larger than 1 mm, so environments with fine dust, coolant spray or wash-down cycles should look at higher-rated models.

100 P/R resolution defines positioning granularity

Each full turn produces exactly 100 pulses, setting the smallest detectable angular step. If the application demands finer interpolation or coarser counts, a different resolution variant is required.

Highlights

  • 100 pulses per revolution for precise position feedback
  • Totem pole output ensures reliable 5 VDC signal transmission
  • 300 kHz response frequency supports high-speed motion control
  • 5 000 rpm maximum speed suits demanding rotary applications
  • IP50 rating protects internal components from dust ingress

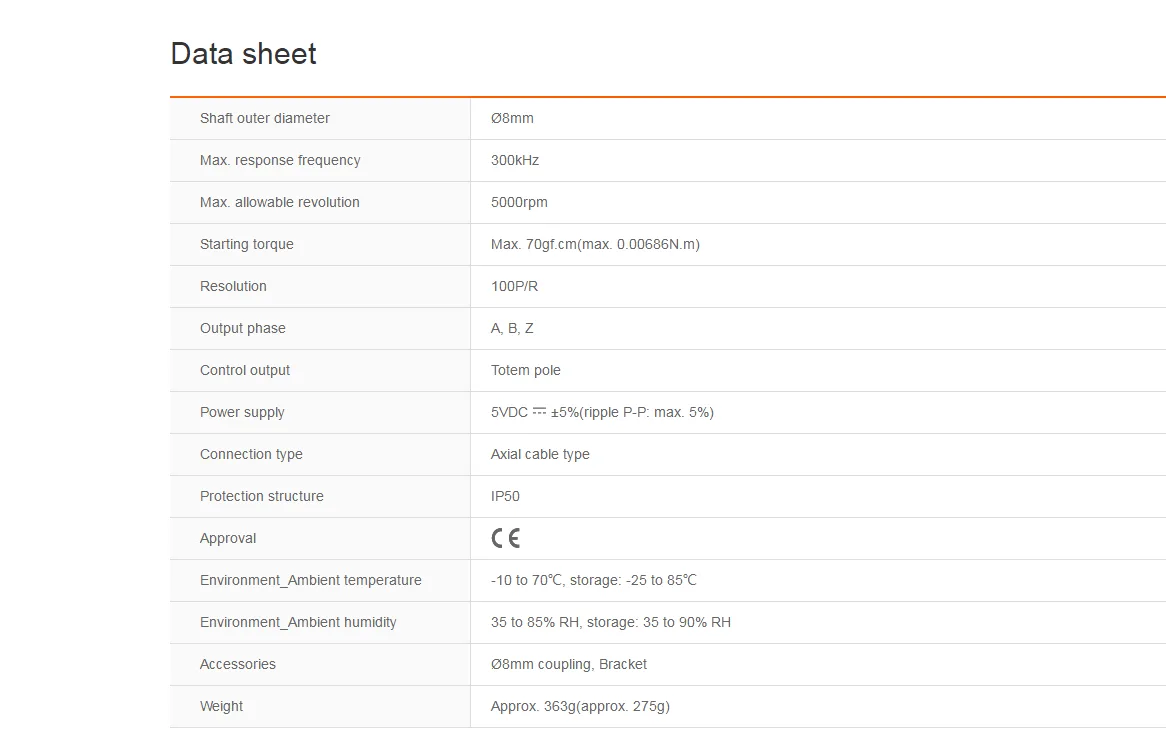

Specifications

BrandAutonics
ModelE50S8-100-3-T-5
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What shaft diameter fits the E50S8-100-3-T-5 encoder?

The encoder accepts a Ø8 mm shaft for direct coupling to a motor or leadscrew.

Which wiring step is often missed when installing this axial-cable encoder?

Connect the three totem-pole output channels to 5 VDC ±5 % power before securing the cable, otherwise the outputs stay low.

How often should the IP50-rated E50S8-100-3-T-5 be inspected for dust ingress?

Check the seals every 5000 operating hours or once a year, whichever comes first, to maintain the IP50 protection.
