Autonics Corp E40S8-600-3-N-24 600 P/R incremental rotary encoder NPN 12-24 VDC
Incremental rotary encoder delivers 600 pulses per revolution with NPN open-collector output on 12-24 VDC supply
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Precise positioning with 600 pulses per revolution resolution
- Reliable NPN open collector output for simple integration
- Wide 12-24 VDC supply range suits varied power sources
- High-speed 300 kHz response frequency captures rapid motion
- IP50 protection structure resists dust ingress in industrial settings
Precision incremental encoder for motion control

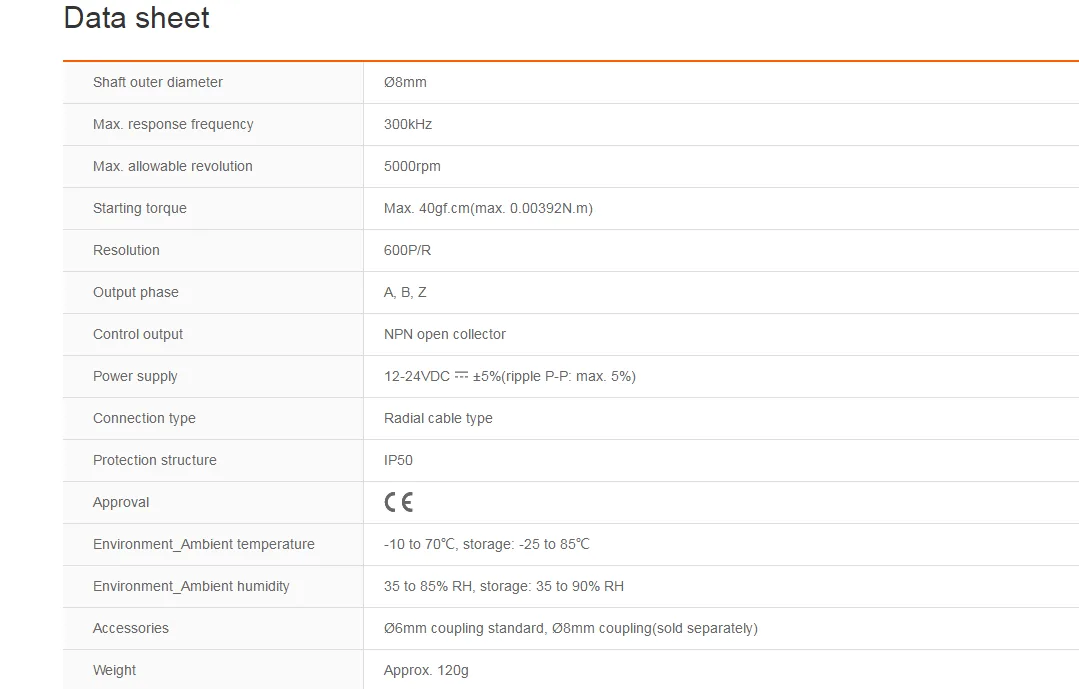

The Autonics E40S8-600-3-N-24 delivers 600 pulses per revolution through an NPN open-collector output. It operates on a 12-24 VDC supply with a 5 percent ripple tolerance. The Ø8 mm shaft supports up to 5000 rpm mechanical speed. IP50 protection suits clean industrial environments.
600 P/R resolution with 300 kHz response headroom
The encoder resolves 600 positions per turn and maintains signal integrity up to a 300 kHz response frequency. Starting torque is limited to 40 gf·cm (0.00392 N·m), reducing load on small drives. At maximum rpm the output frequency stays within the rated bandwidth, so high-speed indexing remains accurate.
Radial cable mount frees panel depth
A radial cable exit routes wiring parallel to the mounting face, saving space behind the panel. The NPN open-collector interface pulls down to common, simplifying connection to PLC inputs or counter modules. The 12-24 VDC range matches standard control-voltage rails without extra regulation.
Highlights
- Precise positioning with 600 pulses per revolution resolution
- Reliable NPN open collector output for simple integration
- Wide 12-24 VDC supply range suits varied power sources
- High-speed 300 kHz response frequency captures rapid motion
- IP50 protection structure resists dust ingress in industrial settings
Specifications
| Brand | Autonics |
|---|---|
| Model | E40S8-600-3-N-24 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
Will the Ø8 mm shaft and 12-24 VDC supply work with my existing 5 V encoder interface board?
The encoder requires 12-24 VDC ±5 % and provides NPN open-collector output; a level-shifter or compatible 12-24 V input board is needed for 5 V logic.
How can I verify the 600 P/R resolution and 300 kHz response are functioning after installation?
Rotate the shaft at up to 5000 rpm and count pulses per revolution with a frequency counter or oscilloscope; 600 pulses per turn and a clean signal up to 300 kHz confirm correct operation.
Does the box include a mating connector or mounting hardware, or must I source them separately?
The unit ships as a single encoder with radial cable; connectors, couplings and mounting brackets are not included and must be purchased separately.
