Red cylindrical rotary encoder with radial cable, 5000 P/R resolution, 12-24 VDC, IP50

Autonics Corp

Autonics Corp E40S6-5000-3-T-24 Rotary Encoder Incremental 5000 P/R 12-24 VDC IP50

SKU CH-E89D-63QMM MPN E40S6-5000-3-T-24

Delivers 5000 pulses per revolution with 12-24 VDC power and IP50 protection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • High-resolution feedback with 5000 pulses per revolution
  • Wide 12-24 VDC supply range suits varied systems
  • Fast 300 kHz response handles high-speed motion
  • Low 40 gf·cm starting torque reduces motor load
  • IP50 protection resists dust in industrial settings

High-Resolution Incremental Encoder

The Autonics E40S6-5000-3-T-24 is an incremental rotary encoder built for motion-control tasks that demand precise position feedback. It delivers 5000 pulses per revolution through a totem-pole output stage, making it suitable for CNC equipment, packaging lines and servo-driven automation where accurate speed and distance data are essential.

Thermals Noise and Power Draw

The unit operates from a 12-24 VDC supply with a 5% tolerance and a maximum ripple of 5%, drawing minimal current in normal operation. Its IP50-rated housing protects internal optics from dust ingress, while the low starting torque of 40 gf·cm (0.00392 N·m) and 300 kHz maximum response frequency keep mechanical drag and electrical noise low during continuous rotation up to 5000 rpm.

Upgrade Path and Fit

This encoder replaces lower-resolution incremental sensors that cannot meet 5000 P/R requirements or that lack a 12-24 VDC totem-pole interface compatible with existing PLC input cards. The jump is worth it when the control loop needs finer position granularity or when the radial cable exit and Ø6 mm shaft match the mechanical envelope without adapter plates. It is not suited for applications requiring absolute position retention after power loss or for environments exceeding the IP50 rating.

Highlights

  • High-resolution feedback with 5000 pulses per revolution
  • Wide 12-24 VDC supply range suits varied systems
  • Fast 300 kHz response handles high-speed motion
  • Low 40 gf·cm starting torque reduces motor load
  • IP50 protection resists dust in industrial settings

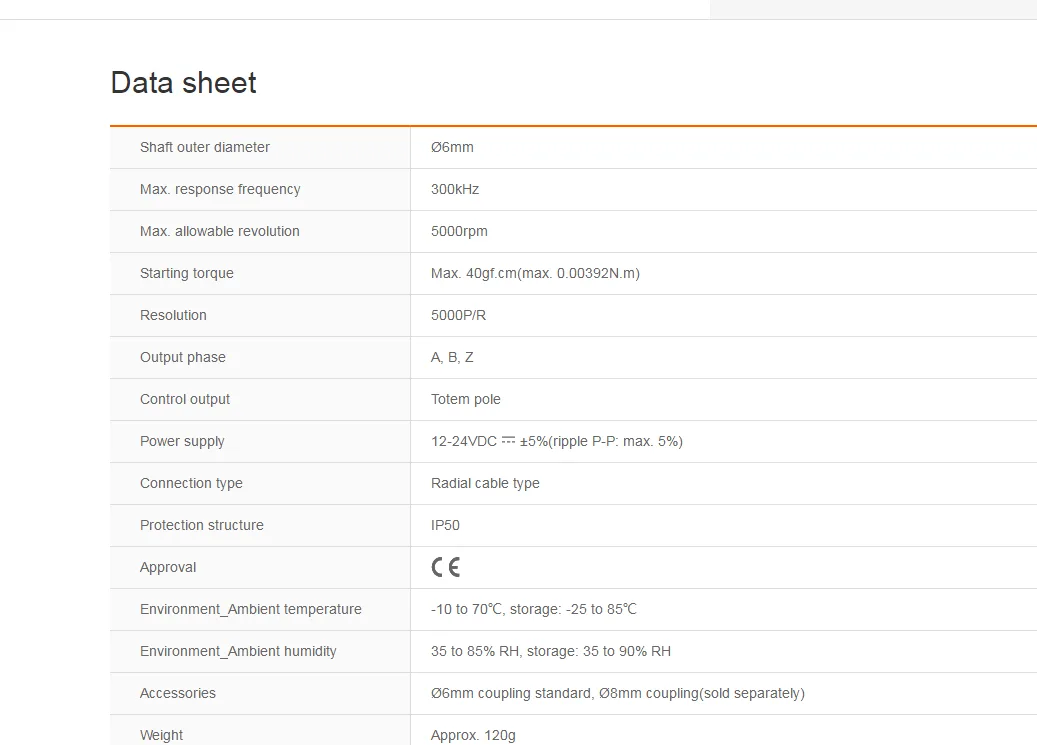

Specifications

BrandAutonics
ModelE40S6-5000-3-T-24
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I install the E40S6-5000-3-T-24 and what is the step people get wrong?

Mount the Ø6 mm shaft and secure the radial cable; the step often missed is keeping the starting torque below 40 gf·cm (0.00392 N·m) so the encoder does not bind.

What maintenance or replacement will the E40S6-5000-3-T-24 need later?

The IP50 rating only blocks solid particles; plan to inspect the cable entry and shaft seal periodically and replace the unit if dust or moisture ingress degrades the 5000 P/R signal.

What limit shows up first on the E40S6-5000-3-T-24 under sustained use?

The 300 kHz maximum response frequency is the first electrical ceiling; it restricts the highest reliable pulse rate before the 5000 rpm mechanical limit becomes relevant.
