Red cylindrical incremental rotary encoder with radial cable and 6mm shaft

Autonics Corp

Autonics Corp E40S6-3600-3-T-24 incremental rotary encoder 3600 P/R 12-24 VDC

SKU CH-MK95-NZ8KZ MPN E40S6-3600-3-T-24

Incremental rotary encoder delivering 3600 pulses per revolution with totem-pole output on a 12-24 VDC supply

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Precise positioning with 3600 pulses per revolution
  • Wide 12-24 VDC supply fits many control systems
  • Fast 300 kHz response suits high-speed feedback
  • Robust 5000 rpm rating handles demanding motion
  • Low 40 gf·cm starting torque reduces motor load

What it is and who uses it

The Autonics E40S6-3600-3-T-24 is an incremental rotary encoder delivering 3600 pulses per revolution for precise position feedback. It suits engineers and technicians building motion-control systems that require accurate speed and angle measurement on a Ø6 mm shaft.

Thermals noise and power draw

The unit operates from a 12-24 VDC supply with a 5 % ripple tolerance and draws minimal current thanks to its totem-pole output stage. Starting torque is rated at 40 gf·cm (0.00392 N·m), so mechanical drag and heat generation stay low even at the maximum 5000 rpm operating speed.

Build integration and clearance

A radial cable connection simplifies wiring in tight enclosures while the IP50-rated housing protects internal optics from dust ingress. The encoder supports a maximum response frequency of 300 kHz, ensuring reliable signal transmission for high-speed automation and test-equipment applications.

Highlights

  • Precise positioning with 3600 pulses per revolution
  • Wide 12-24 VDC supply fits many control systems
  • Fast 300 kHz response suits high-speed feedback
  • Robust 5000 rpm rating handles demanding motion
  • Low 40 gf·cm starting torque reduces motor load

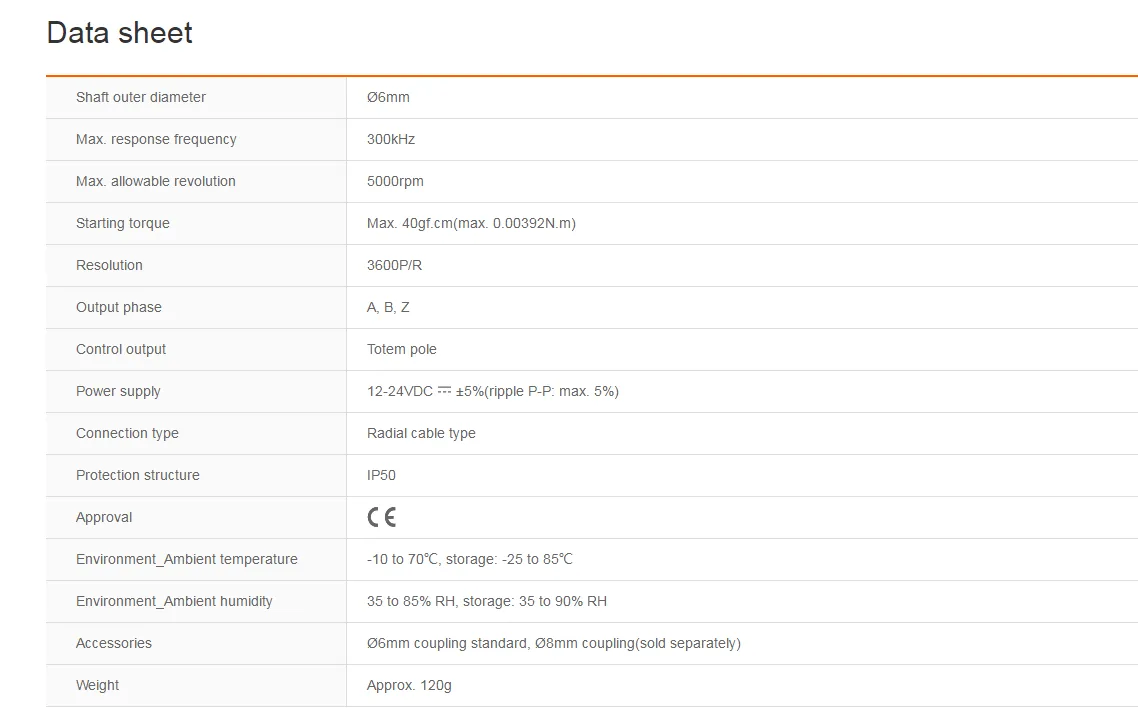

Specifications

BrandAutonics
ModelE40S6-3600-3-T-24
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I mount the Ø6 mm shaft and which wiring step is often missed?

Fit the encoder onto the Ø6 mm shaft and secure it, then connect the radial cable to a 12-24 VDC supply with the correct polarity; the step often missed is verifying the ±5 % ripple limit before powering up.

What maintenance will the E40S6-3600-3-T-24 need after extended operation?

The IP50 housing keeps dust out but not liquids, so periodically inspect the radial cable for wear and clean the shaft seal area; no internal service is required unless the 300 kHz response frequency drops.

At what speed does the 300 kHz response frequency become the limiting factor?

With 3600 pulses per revolution, the 300 kHz ceiling is reached at 5000 rpm, so sustained operation above that speed will lose counts first.
