Autonics Corp E40S6-256-3-N-24 rotary encoder incremental NPN 256P/R 300kHz 5000rpm 12-24VDC IP50
Incremental rotary encoder with 256 P/R resolution, NPN open-collector output, 300 kHz response and 5000 rpm maximum speed
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- 256 pulses per revolution for precise positioning
- NPN open collector output simplifies controller wiring
- 300 kHz response frequency supports high-speed motion
- 12–24 VDC supply range fits common industrial power
- IP50 rating protects against dust ingress
Rotary encoder for position feedback

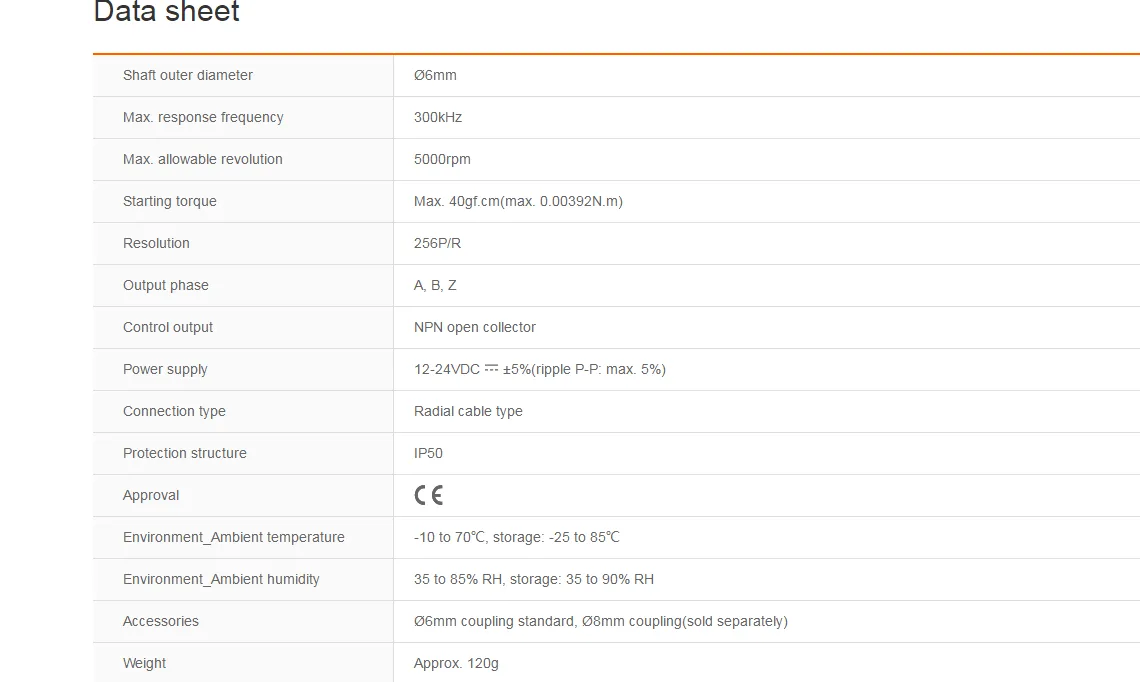

The Autonics E40S6-256-3-N-24 is an incremental rotary encoder with NPN open-collector output. It delivers 256 pulses per revolution and operates on a 12-24VDC supply. The Ø6 mm shaft supports speeds up to 5000 rpm with a starting torque of 40 gf·cm. Protection is rated IP50.
Suits PLC inputs and simple motion control
Engineers integrating position feedback into PLCs, conveyor drives or packaging machines will find the 300 kHz response frequency and radial cable convenient. The unit is not for applications that require absolute position data, higher resolution than 256 P/R, or environmental sealing beyond IP50.
256 pulses per revolution decides fit
The single specification that determines compatibility is the 256 P/R resolution. If the control system expects a different pulse count per turn, this encoder will not match the required scaling.
Highlights
- 256 pulses per revolution for precise positioning
- NPN open collector output simplifies controller wiring
- 300 kHz response frequency supports high-speed motion
- 12–24 VDC supply range fits common industrial power
- IP50 rating protects against dust ingress
Specifications
| Brand | Autonics |
|---|---|
| Model | E40S6-256-3-N-24 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What shaft diameter does the 6 mm encoder shaft fit?
The encoder has a Ø6 mm shaft outer diameter, so it fits a 6 mm bore or coupling.
How do I wire the radial cable without crossing the A and B channels?
Follow the cable colour code for NPN open-collector outputs: typically brown for VCC, blue for GND, black for A-phase, white for B-phase, and orange for Z-phase.
How often should I check the starting torque spec of 40 gf·cm?
Verify the starting torque remains below 40 gf·cm (0.00392 N·m) during routine maintenance; if it rises, inspect bearings and shaft alignment.
