Red cylindrical rotary encoder with radial cable, IP50 rating

Autonics Corp

Autonics Corp E40S6-2000-3-N-24 rotary encoder 2000P/R NPN 12-24VDC IP50

SKU CH-0NRR-Z1K61 MPN E40S6-2000-3-N-24

An incremental rotary encoder delivering 2000 pulses per revolution with NPN open-collector output on a 12-24 VDC supply

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 2000 pulses per revolution for precise positioning
  • NPN open collector output simplifies PLC wiring
  • 12-24 VDC supply fits common control panels
  • 300 kHz response frequency supports high-speed motion
  • IP50 rating protects against dust ingress

Incremental rotary encoder 2000 P/R

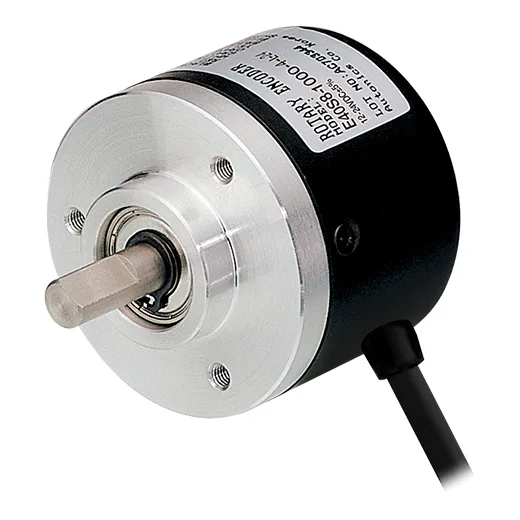

The Autonics E40S6-2000-3-N-24 is an incremental rotary encoder delivering 2000 pulses per revolution. It uses an NPN open-collector output and operates from a 12-24VDC supply with a maximum ripple of 5%. The unit has a Ø6 mm shaft, a radial cable connection and an IP50 protection rating.

Motion-control feedback vs absolute positioning

This encoder suits servo drives, stepper systems and PLC counters that need quadrature feedback for speed or position control. It is not for applications that require absolute position retention after power loss, single-turn absolute data or a serial interface such as SSI or BiSS.

300 kHz maximum response frequency

The 300 kHz response frequency sets the highest usable pulse rate. At the full 2000 P/R resolution the shaft speed must stay below 5000 rpm to avoid lost counts. Systems that need higher bandwidth or finer resolution at speed must select a different encoder.

Highlights

  • 2000 pulses per revolution for precise positioning
  • NPN open collector output simplifies PLC wiring
  • 12-24 VDC supply fits common control panels
  • 300 kHz response frequency supports high-speed motion
  • IP50 rating protects against dust ingress

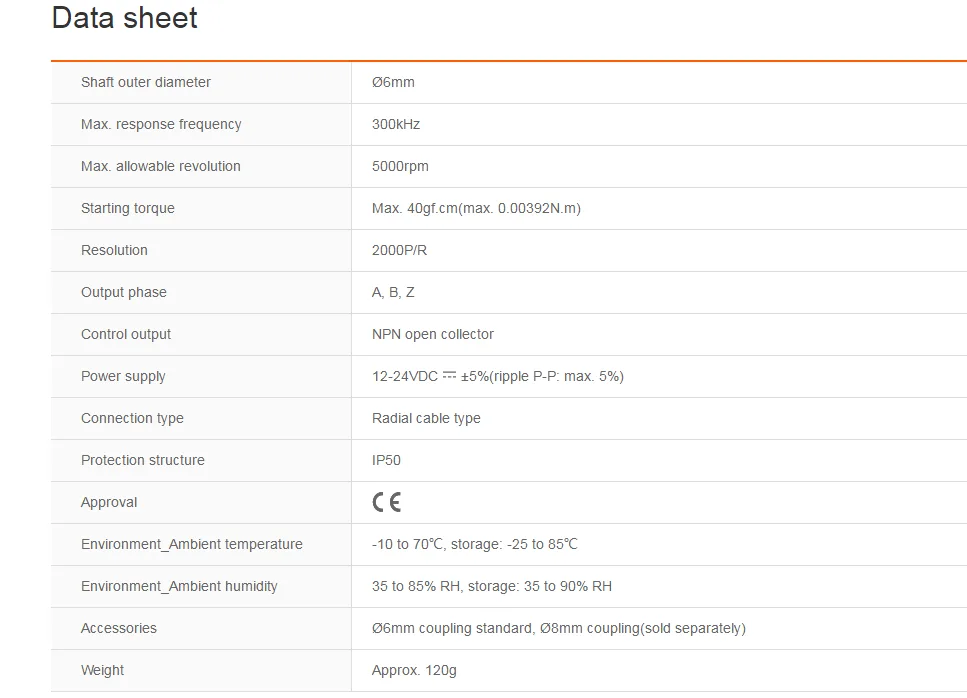

Specifications

BrandAutonics
ModelE40S6-2000-3-N-24
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How can I verify the encoder is working after installation?

Connect the 12-24VDC supply, rotate the shaft up to 5000rpm, and confirm the NPN open-collector output switches cleanly at 2000 pulses per revolution without exceeding the 300kHz response limit.

What comes in the box and what must I source separately?

The box contains one new E40S6-2000-3-N-24 encoder with a Ø6mm shaft and radial cable; you must provide a 12-24VDC power supply and any mounting hardware or coupling required for your application.

Which resolution should I choose for my motion-control task?

This model is fixed at 2000P/R; select it when your controller needs that exact pulse count per revolution and can accept NPN open-collector signals within the 300kHz maximum frequency.
