Red cylindrical rotary encoder with radial cable, Ø6 mm shaft, 100 P/R resolution, 5 VDC totem pole output

Autonics Corp

Autonics Corp E40S6-100-3-T-5 rotary encoder 100P/R 5VDC

SKU CH-5GBH-X2V8W MPN E40S6-100-3-T-5

Incremental rotary encoder delivering 100 pulses per revolution at up to 5000 rpm with 300 kHz response, 5 VDC totem-pole output and IP50 protection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Precise positioning with 100 pulses per revolution
  • Reliable signal integrity from totem-pole output stage
  • Fast response up to 300 kHz for dynamic motion
  • Compact Ø6 mm shaft fits tight assemblies
  • Durable IP50 housing resists dust in industrial use

Incremental rotary encoder

The Autonics E40S6-100-3-T-5 is an incremental rotary encoder that delivers 100 pulses per revolution. It operates on a 5 VDC supply with a maximum response frequency of 300 kHz. A 6 mm diameter shaft and radial cable connection suit panel or machine mounting. The unit is rated IP50 for dust protection.

Suitable applications and limits

This encoder fits position-feedback tasks that require 100 P/R resolution and totem-pole output. It is not for designs needing higher pulse counts, absolute position data, or environmental sealing beyond IP50. Buyers who want more storage, a different output stage, or a hollow-shaft format should look elsewhere.

Decisive specification

The 100 P/R resolution combined with a 300 kHz maximum response frequency determines whether the encoder matches the motion controller’s counting capability. Verify that the controller can process the pulse rate at the intended shaft speed before purchase.

Highlights

  • Precise positioning with 100 pulses per revolution
  • Reliable signal integrity from totem-pole output stage
  • Fast response up to 300 kHz for dynamic motion
  • Compact Ø6 mm shaft fits tight assemblies
  • Durable IP50 housing resists dust in industrial use

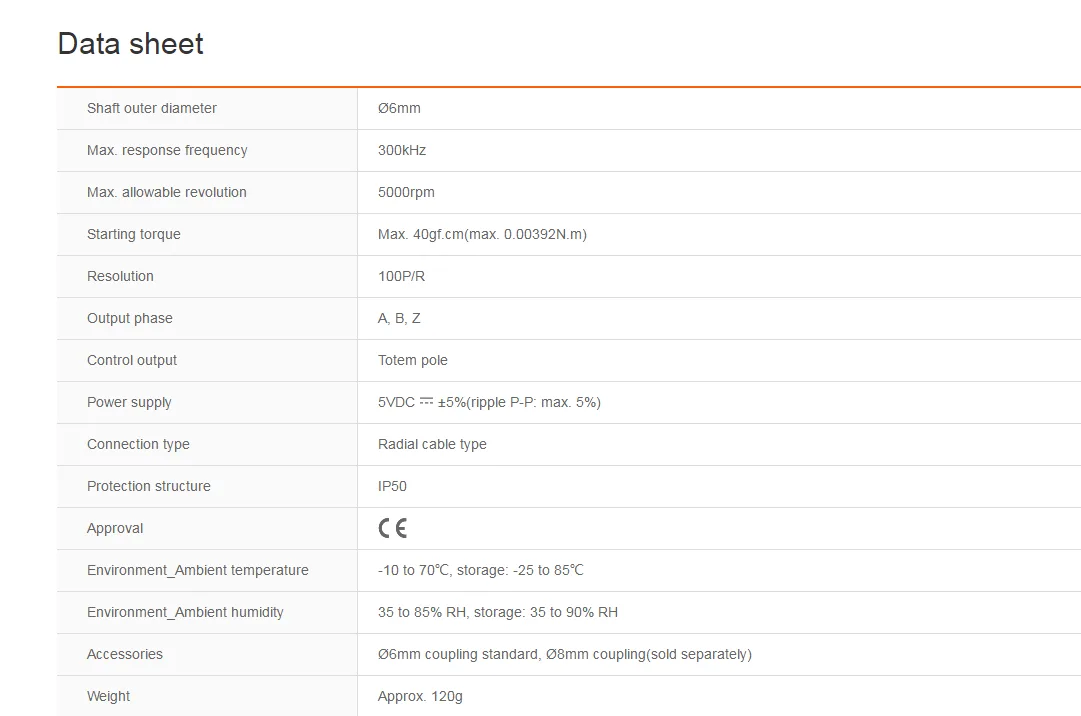

Specifications

BrandAutonics
ModelE40S6-100-3-T-5
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How much power does the E40S6-100-3-T-5 draw when running continuously at 5 VDC?

The encoder operates from 5 VDC ±5 % with a maximum ripple of 5 %; the supply must stay within that window for reliable all-day operation.

What shaft size and cable orientation does the encoder need to fit my existing mounting?

It has a 6 mm diameter shaft and a radial cable exit, so the mounting bracket and cable routing must accommodate those dimensions.

Will the 100 P/R totem-pole output work with my older 5 V logic controller?

Yes, the totem-pole output swings at 5 V levels and the 100 pulses per revolution match controllers expecting that resolution.
