Red cylindrical rotary encoder with radial cable, 800 P/R incremental type

Autonics Corp

Autonics Corp E40H8-800-3-N-24 800P/R NPN 12-24VDC rotary encoder

SKU CH-BQ0Z-G2SDQ MPN E40H8-800-3-N-24

An incremental rotary encoder delivering 800 pulses per revolution with NPN open-collector output for 12-24 VDC systems

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 800 pulses per revolution for precise positioning
  • NPN open collector output simplifies PLC wiring
  • 12 to 24 VDC supply fits standard control panels
  • 300 kHz response frequency supports high-speed feedback
  • IP50 rating protects internals from dust ingress

Incremental rotary encoder with NPN output

The Autonics E40H8-800-3-N-24 is an incremental rotary encoder that delivers 800 pulses per revolution through an NPN open-collector output. It operates on a 12-24VDC supply with a maximum response frequency of 300kHz and a top speed of 5000rpm. The Ø8mm shaft connects via a radial cable and the housing meets IP50 protection.

Suited for position feedback in motion systems

This encoder fits applications needing incremental position or speed feedback with NPN logic, such as conveyor drives, packaging equipment or motor control loops. It is not suitable for designs that require absolute position data, push-pull or line-driver outputs, or a higher ingress-protection rating than IP50.

800 pulses per revolution resolution

The fixed resolution of 800P/R determines the smallest angular step the encoder can report and directly sets the positioning granularity of the control system. Verify that this count matches the controller’s input scaling before purchase.

Highlights

  • 800 pulses per revolution for precise positioning
  • NPN open collector output simplifies PLC wiring
  • 12 to 24 VDC supply fits standard control panels
  • 300 kHz response frequency supports high-speed feedback
  • IP50 rating protects internals from dust ingress

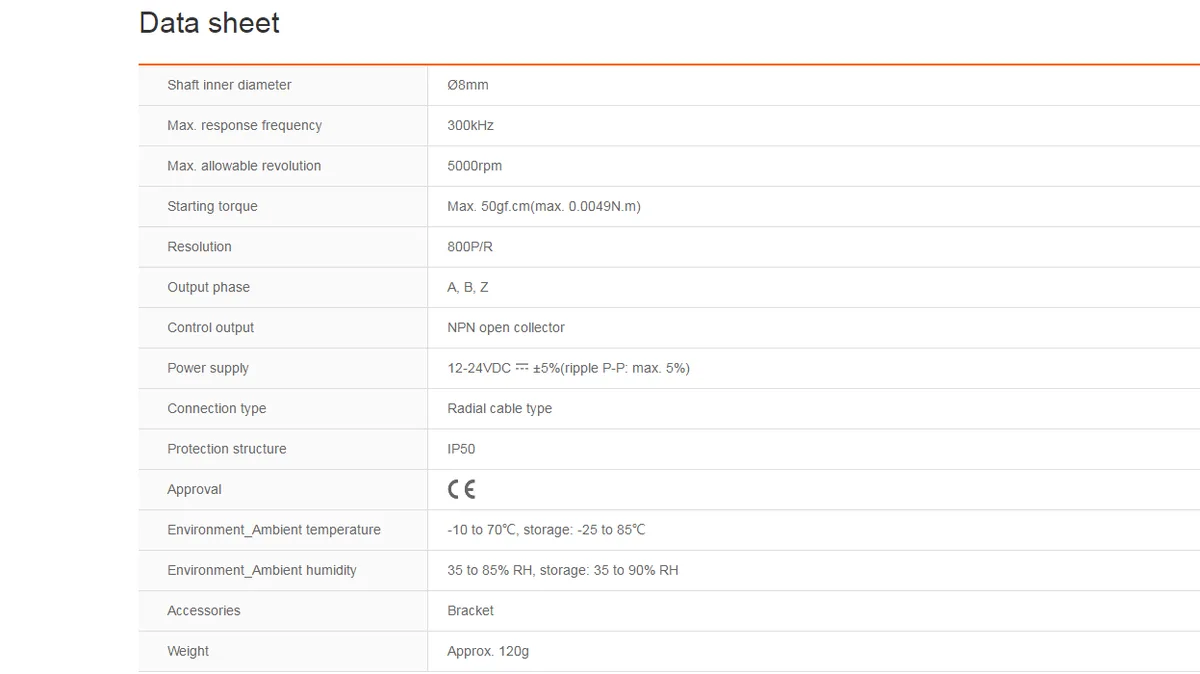

Specifications

BrandAutonics
ModelE40H8-800-3-N-24
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Will the 8mm shaft fit the motor coupling I already use on older equipment?

The encoder shaft inner diameter is Ø8mm, so it matches any coupling or hub bored for an 8mm shaft.

How can I verify the encoder is sending clean pulses after wiring it up?

At up to 5000rpm the unit produces 800 pulses per revolution with a maximum response frequency of 300kHz; an oscilloscope should show a stable square wave at that rate.

Does the box include a mating connector or do I need to source one separately?

The encoder comes with a radial cable already attached; no separate connector is required for the NPN open-collector output.
