Red cylindrical rotary encoder with radial cable 40 50 300 500 5000 .0049

Autonics Corp

Autonics Corp E40H8-500-6-L-5 Rotary Encoder 500 P/R Line Driver 5 VDC

SKU CH-Y6P5-E7S6Y MPN E40H8-500-6-L-5

Incremental rotary encoder delivering 500 pulses per revolution with line-driver output on 5 VDC supply

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 500 pulses per revolution for precise positioning
  • Line driver output ensures noise-resistant signals
  • 300 kHz response frequency supports high-speed motion
  • 5000 rpm maximum speed handles demanding rotation
  • IP50 rating protects against dust ingress

Rotary Encoder for Motion Control

The Autonics E40H8-500-6-L-5 is an incremental rotary encoder delivering 500 pulses per revolution. It operates on a 5 VDC supply with a line-driver output suited for noise-resistant signal transmission. A Ø8 mm shaft and radial cable connection simplify mounting in tight equipment frames. The unit is rated IP50 for basic dust protection in clean industrial environments.

Suited for Precision Positioning Tasks

Engineers needing accurate speed or position feedback on servo motors, conveyors or indexing tables will find the 300 kHz response frequency and 5000 rpm limit adequate. The low starting torque of 0.0049 N·m reduces load on small shafts. Buyers who require absolute position data, higher environmental sealing or a hollow-shaft design should consider other encoder types.

Integration Into Control Panels

The line-driver output connects directly to PLC high-speed counters or motion-controller inputs without extra signal conditioning. A 5 VDC rail with less than 5 % ripple is the only power requirement. The compact 40 mm housing frees panel space while the radial cable eases routing through cable chains. The encoder ships as a single unit in a box.

Highlights

  • 500 pulses per revolution for precise positioning
  • Line driver output ensures noise-resistant signals
  • 300 kHz response frequency supports high-speed motion
  • 5000 rpm maximum speed handles demanding rotation
  • IP50 rating protects against dust ingress

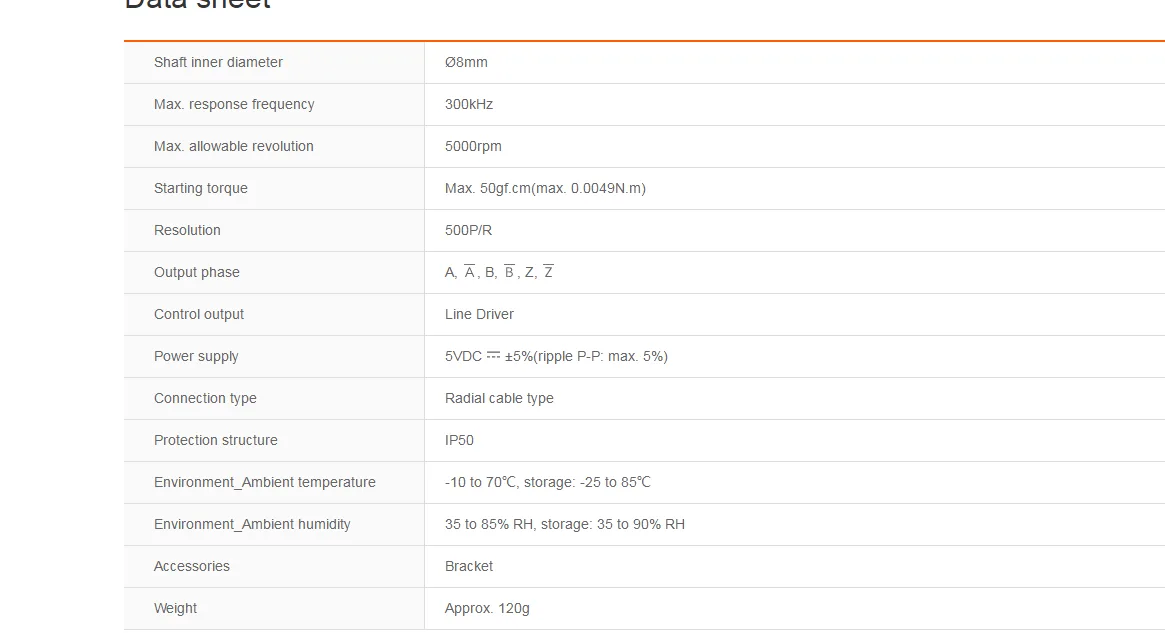

Specifications

BrandAutonics
ModelE40H8-500-6-L-5
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What power supply must I already have to run this 5 VDC line-driver encoder?

You need a 5 VDC source that stays within ±5 % and keeps ripple below 5 % peak-to-peak.

Will the 500 P/R resolution and 300 kHz response work with my existing counter card?

The encoder outputs 500 pulses per revolution at up to 300 kHz, so your counter must accept that frequency and resolution.

How can I verify the encoder is operating correctly after wiring it?

Rotate the shaft up to 5000 rpm and confirm the controller receives clean 500 P/R quadrature signals at the expected frequency.
