Red cylindrical rotary encoder with radial cable and 8mm shaft

Autonics Corp

Autonics Corp E40H8-2000-3-T-24 Rotary Encoder 2000P/R 12-24VDC IP50

SKU CH-K660-PTH41 MPN E40H8-2000-3-T-24

An incremental rotary encoder delivers 2000 pulses per revolution at up to 300 kHz with 12-24 VDC supply and IP50 protection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • High-resolution positioning with 2000 pulses per revolution
  • Wide 12-24 VDC supply range simplifies system integration
  • Fast 300 kHz response frequency captures rapid motion
  • IP50-rated housing protects against dust ingress
  • Low starting torque of 0.0049 N·m reduces mechanical load

Incremental rotary encoder 2000 P/R

This incremental rotary encoder delivers 2000 pulses per revolution with a totem-pole output. It operates on a 12-24 VDC supply with a maximum response frequency of 300 kHz and a mechanical speed limit of 5000 rpm. The Ø8 mm shaft and radial cable connection suit panel-mount installations.

Suited for position feedback in automation

Engineers needing precise angular measurement on conveyors, packaging machines or servo axes will find the resolution and speed range appropriate. The IP50 rating only protects against solid particles, so environments with water jets, oil spray or heavy dust require a higher ingress-protection class.

2000 pulses per revolution resolution

The fixed 2000 P/R resolution determines the smallest detectable angular step and directly sets the feedback granularity for the control loop. If the application demands finer or coarser resolution, a different encoder variant must be selected.

Highlights

  • High-resolution positioning with 2000 pulses per revolution
  • Wide 12-24 VDC supply range simplifies system integration
  • Fast 300 kHz response frequency captures rapid motion
  • IP50-rated housing protects against dust ingress
  • Low starting torque of 0.0049 N·m reduces mechanical load

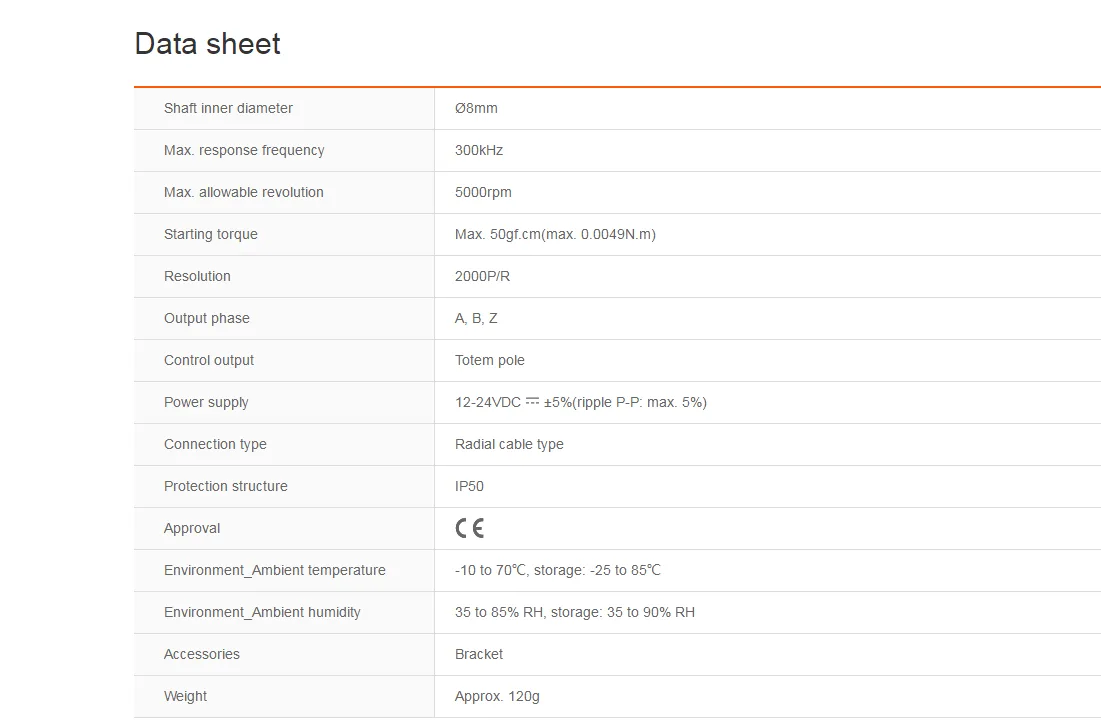

Specifications

BrandAutonics
ModelE40H8-2000-3-T-24
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What shaft diameter does the Ø8 mm hollow bore of the E40H8-2000-3-T-24 fit?

The encoder has an 8 mm hollow shaft inner diameter, so it mounts directly on an 8 mm motor or machine shaft.

Which wiring step is often missed when connecting the radial cable on a 12-24 VDC supply?

Verify the cable colour code against the totem-pole output pin-out and keep the supply within 12-24 VDC ±5 % with ripple under 5 %.

At 5000 rpm continuous use, when should the 2000 P/R encoder be checked for wear?

Plan an inspection after extended high-speed runs; the 50 gf·cm starting torque spec gives a baseline for detecting bearing or seal degradation.
