Small red cylindrical rotary encoder with radial cable exit

Autonics Corp

Autonics Corp E40H6-1024-3-T-5 rotary encoder incremental 1024 P/R 5 VDC totem pole IP50 electrician tool

SKU CH-A4GS-A4J6A MPN E40H6-1024-3-T-5

Incremental rotary encoder delivering 1024 pulses per revolution with 5 VDC totem-pole output, 300 kHz response and IP50 protection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 1024 pulses per revolution for precise positioning
  • Totem-pole output at 5 VDC simplifies controller wiring
  • 300 kHz response frequency supports high-speed motion
  • IP50 protection resists dust in industrial settings
  • 5 000 rpm maximum speed handles demanding rotation

Incremental rotary encoder 1024 P/R

The Autonics E40H6-1024-3-T-5 is an incremental rotary encoder that delivers 1024 pulses per revolution. It operates from a 5 VDC supply with a totem-pole output stage. The Ø6 mm shaft and radial cable suit panel or machine mounting.

Motion-control engineers needing precise position

This encoder fits applications that require 1024 P/R resolution and a 300 kHz maximum response frequency. Builders who need an absolute output, a hollow shaft, or a higher IP rating should look at a different model.

1024 pulses per revolution resolution

The 1024 P/R resolution sets the smallest measurable angular step. Combined with a 5000 rpm maximum speed and 300 kHz response limit, it determines whether the encoder meets the motion system's accuracy and bandwidth requirements.

Highlights

  • 1024 pulses per revolution for precise positioning
  • Totem-pole output at 5 VDC simplifies controller wiring
  • 300 kHz response frequency supports high-speed motion
  • IP50 protection resists dust in industrial settings
  • 5 000 rpm maximum speed handles demanding rotation

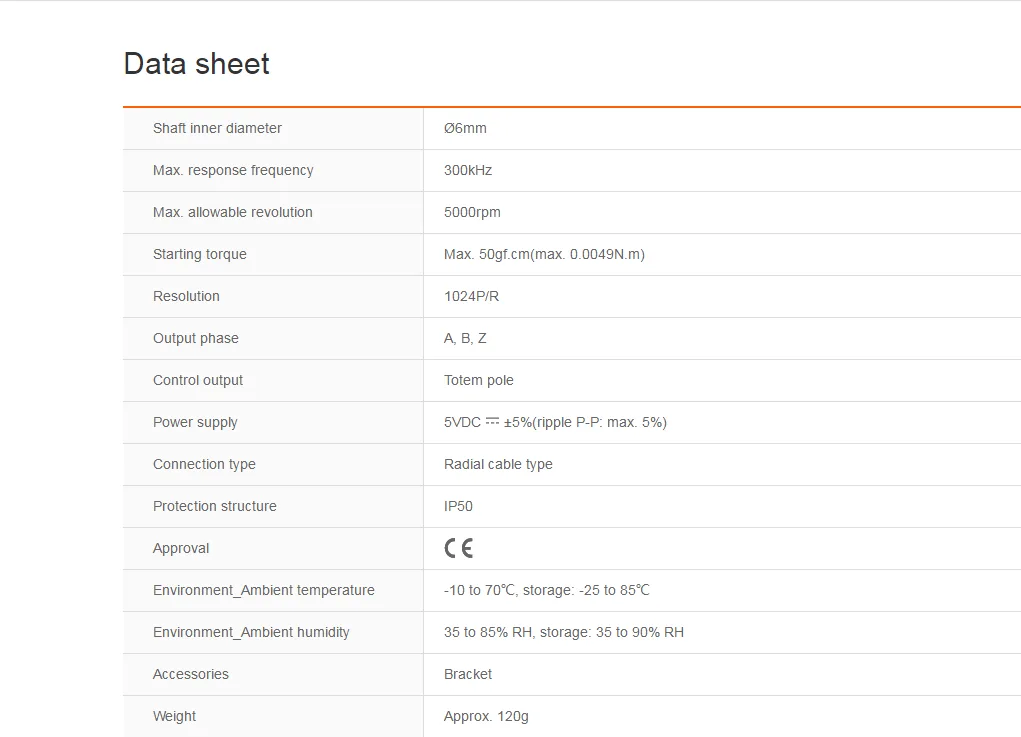

Specifications

BrandAutonics
ModelE40H6-1024-3-T-5
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What maintenance or replacement will the 6 mm shaft and radial cable need over time?

The shaft inner diameter is Ø6 mm and the connection uses a radial cable; inspect the cable for wear and the shaft for play during routine checks.

Which limit appears first during continuous operation, the 300 kHz response frequency or the 5000 rpm speed rating?

The encoder has a max response frequency of 300 kHz and a max allowable revolution of 5000 rpm; the mechanical speed limit is reached before the electrical frequency ceiling.

How much heat or noise does the 5 VDC totem-pole output generate when running all day?

Power supply is 5 VDC ±5 % with totem-pole output; starting torque is max 0.0049 N·m, so heat and acoustic output remain low during extended use.
