Small red cylindrical rotary encoder with axial cable, 360 pulses per revolution, NPN output, 12-24VDC power supply, IP50 protection

Autonics Corp

Autonics Corp E30S4-360-3-N-24 rotary encoder 360P/R NPN 12-24VDC

SKU CH-VV1G-JVA29 MPN E30S4-360-3-N-24

360 pulse-per-revolution rotary encoder with NPN open-collector output for 12-24 VDC systems

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 360 pulses per revolution for precise positioning
  • NPN open collector output simplifies PLC wiring
  • 12–24 VDC supply works with common industrial rails
  • 300 kHz response frequency supports high-speed motion
  • IP50 rating protects against dust in cabinet environments

Industrial Rotary Encoder 360 P/R

The Autonics E30S4-360-3-N-24 is an incremental rotary encoder with a resolution of 360 pulses per revolution. It features an NPN open collector output and operates on a 12-24VDC power supply with a ±5% tolerance. The unit uses an axial cable connection and has a 4mm shaft diameter. It is rated for a maximum response frequency of 300kHz.

Suits Position Feedback Systems

This encoder suits applications requiring precise angular position or speed feedback such as motor control, conveyor systems, or packaging machinery. The IP50 protection structure protects against dust ingress but not water jets. Buyers needing higher environmental sealing or a different output interface such as line driver or push-pull should look at other models.

Resolution Decides Compatibility

The 360 pulses per revolution resolution determines the positional granularity available to your controller. Verify that this count matches the required precision for your specific motion control loop. The maximum allowable revolution is 5000rpm and the starting torque is max 20gf.cm.

Highlights

  • 360 pulses per revolution for precise positioning
  • NPN open collector output simplifies PLC wiring
  • 12–24 VDC supply works with common industrial rails
  • 300 kHz response frequency supports high-speed motion
  • IP50 rating protects against dust in cabinet environments

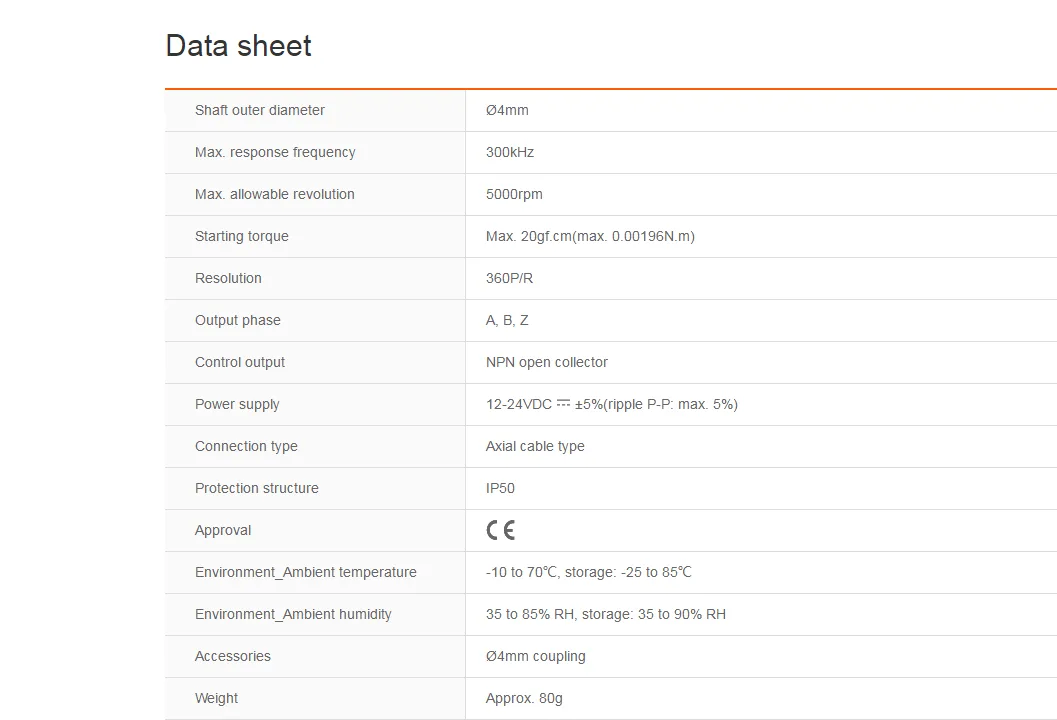

Specifications

BrandAutonics
ModelE30S4-360-3-N-24
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Should I choose the 360 P/R resolution or a different pulse count for my positioning needs?

The 360 P/R resolution gives one pulse per degree of rotation, suitable for general positioning tasks; select a higher pulse count only if finer angular steps are required.

What does the 300 kHz maximum response frequency mean when the encoder is running on a machine?

At 300 kHz the encoder can reliably output pulses up to 5 000 rpm, so the electrical signal will keep pace with the maximum mechanical speed.

How does the NPN open-collector output and 12–24 VDC supply limit the wiring distance or controller choice?

NPN open-collector outputs pull the signal low and need a pull-up resistor at the controller; the 12–24 VDC range works with common PLC input modules but cable runs should stay short to avoid noise.
