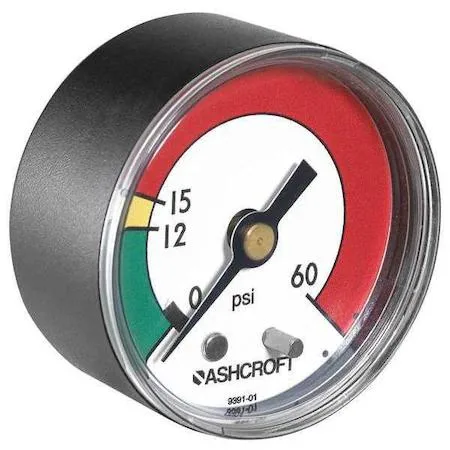

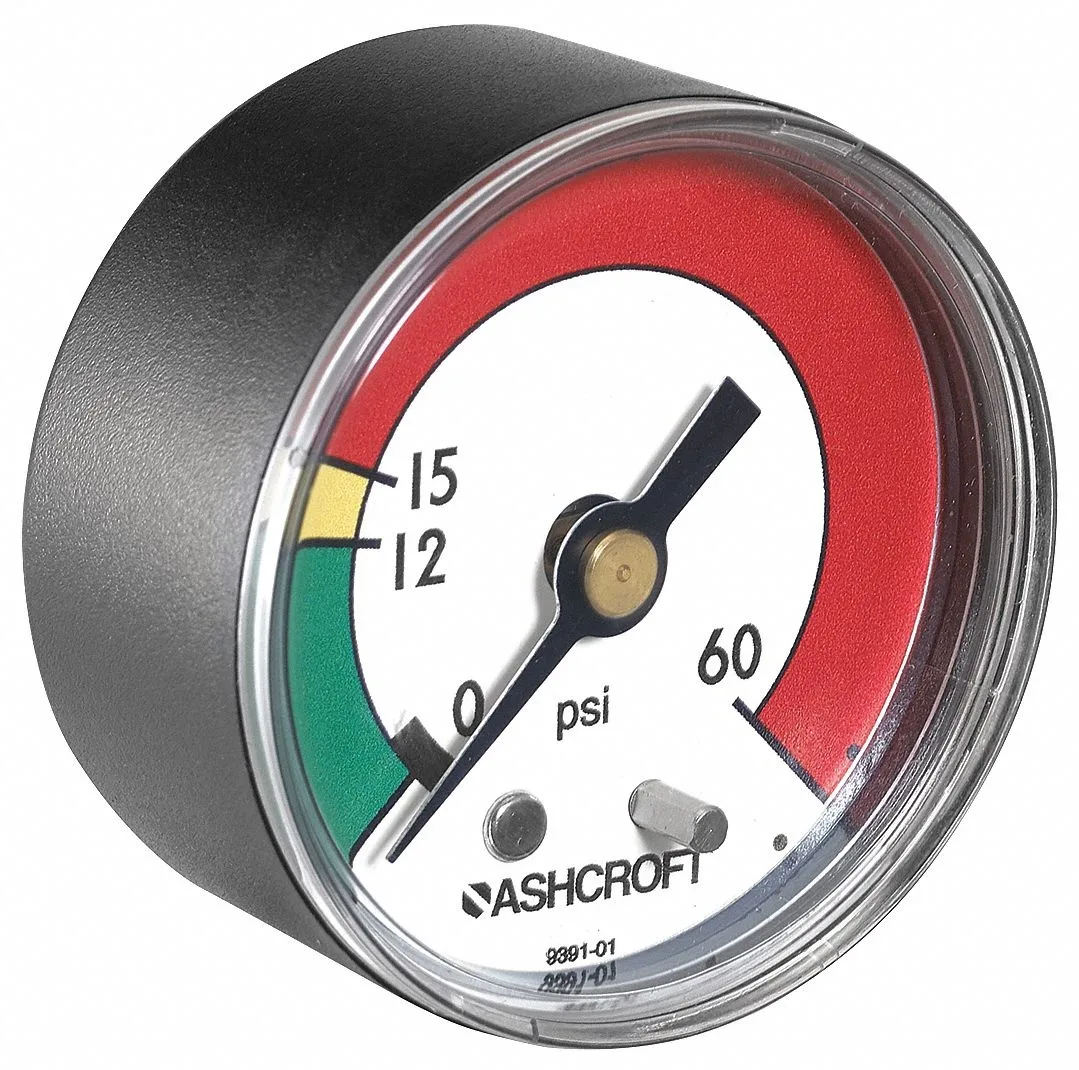

Black 2-inch ABS pressure gauge with center-back 1/8 NPT male connection

Ashcroft

Ashcroft 20W1005PH01B 60 PSI Gauge 1/8 MNPT Black ABS

SKU CH-TZVP-AP588

Measures 0 to 60 psi with a 2 in dial, ±3-2-3 % accuracy, 1/8 in MNPT centre-back connection, ABS case, polycarbonate lens and FlutterGuard dampening

  • Length2.200
  • Width2.000
  • Color/FinishBlack
  • TypeMicrometers
  • 2-inch dial for clear pressure readings
  • +/-3-2-3% accuracy ensures reliable measurement
  • ABS case with polycarbonate lens resists impact
  • 1/8 in MNPT centre-back connection for panel mounting
  • FlutterGuard dry dampening reduces needle vibration

2 in 60 PSI Centre-Back Gauge

The Ashcroft 20W1005PH01B is a 2 in nominal dial gauge reading 0 to 60 psi with a centre-back 1/8 in male NPT connection. A black ABS case and polycarbonate lens protect the movement in commercial and light-industrial settings where panel space is limited.

Replaces Larger Bottom-Mount Units

Switching from a bottom-mount gauge frees panel depth and simplifies plumbing when the connection must face rearward. The jump is worth it when the installation calls for a compact 2 in dial, dry FlutterGuard dampening and a vibration-resistant liquid-filled feel without actual liquid fill.

Check Panel Cut-Out And Thread Seal

Verify the panel cut-out suits a 2 in centre-back case and that the 1/8 in male NPT thread matches the port. Confirm the +/-3-2-3 percent accuracy meets the process tolerance and that an unrated IP enclosure is acceptable for the environment.

Highlights

  • 2-inch dial for clear pressure readings
  • +/-3-2-3% accuracy ensures reliable measurement
  • ABS case with polycarbonate lens resists impact
  • 1/8 in MNPT centre-back connection for panel mounting
  • FlutterGuard dry dampening reduces needle vibration

Specifications

BrandASHCROFT
Length2.200
Width2.000
Color/FinishBlack
TypeMicrometers

Questions about this item

What thread size fits the 1/8 in MNPT connection on this gauge?

The process connection is a 1/8 inch male NPT thread that screws directly into a matching female NPT port.

How should the center-back mount be oriented during installation?

Install with the dial facing outward and the 1/8 inch male NPT thread pointing rearward into the panel cut-out.

When does the FlutterGuard dampening fluid need replacement?

The gauge is dry-filled with FlutterGuard and is not field fillable, so no fluid replacement is required.
