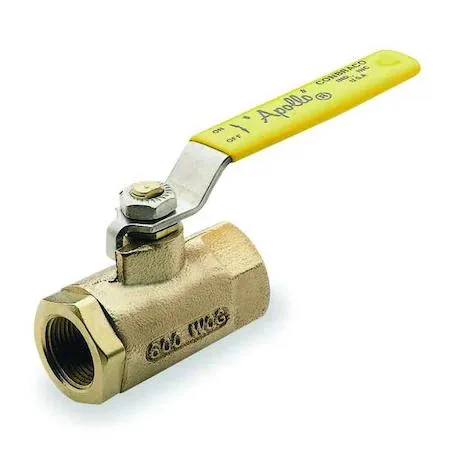

Bronze ball valve with lever handle, inline threaded connections

Apollo

Apollo 7014664 1-1/4" FNPT Bronze Ball Valve Inline

SKU CH-C0BR-J0TTR

Manual two-way bronze ball valve rated for 600 psi operating pressure and 250 psi steam with 29 in Hg vacuum service

  • Manual two-way bronze ball valve handles steam and air
  • Rated 600 psi for general service and 250 psi for steam
  • Vacuum service to 29 in Hg for evacuation tasks
  • Chrome-plated bronze ball resists corrosion in harsh media
  • Lever handle with non-locking design for quick shut-off

Apollo 7014664 Bronze Ball Valve

The Apollo 7014664 is a manual two-way ball valve with a bronze body and chrome-plated bronze ball. It features a straight body style and standard port design for inline installation with 1-1/4 inch FNPT connections. The non-locking lever handle provides direct flow control for steam and vacuum service applications.

Suited for steam and vacuum lines

This valve serves operators who need a bronze valve rated for 250 psi steam and 600 psi operating pressure with a 29 in Hg vacuum rating. It is not for systems requiring combustible gas certification, 3-A sanitary compliance, or a locking handle for safety lockout procedures.

250 psi steam pressure rating

The 250 psi maximum steam pressure is the key specification that determines whether this valve matches the system design pressure. Verify the service pressure against this limit before selecting the Apollo 7014664 for steam applications.

Highlights

  • Manual two-way bronze ball valve handles steam and air
  • Rated 600 psi for general service and 250 psi for steam
  • Vacuum service to 29 in Hg for evacuation tasks
  • Chrome-plated bronze ball resists corrosion in harsh media
  • Lever handle with non-locking design for quick shut-off

Specifications

BrandAPOLLO VALVES

Questions about this item

How do I confirm the Apollo 7014664 valve is sealing correctly after installation?

Pressurise the line up to the 600 psi operating rating and inspect every joint for leaks; the lever should move smoothly between open and closed with no binding.

What comes with the Apollo 7014664 valve and what must I source separately?

The valve body with lever handle is supplied; you must provide the 1-1/4" FNPT mating fittings, pipe thread sealant or tape, and any mounting hardware required for your piping layout.

Which pressure rating should guide my choice of the Apollo 7014664 for steam versus compressed air?

For steam service the limit is 250 psi; for general air or liquid duty the valve handles up to 600 psi, so select based on the highest pressure your system will see.
