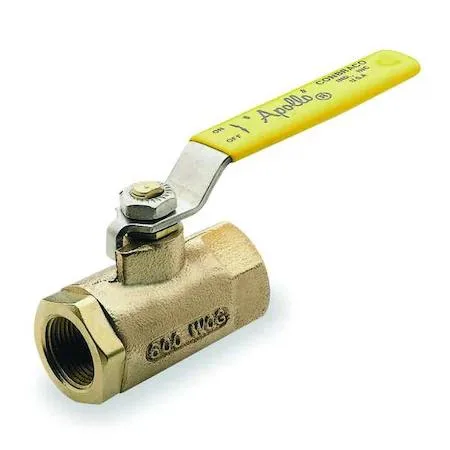

Bronze ball valve, straight two-piece body, lever handle

Apollo

Apollo 7014364 1/2" FNPT Bronze Ball Valve

SKU CH-7AS5-Z4EHY

Bronze ball valve rated 600 psi for steam and vacuum service up to 29 in Hg with a non-locking lever handle

  • Manual two-way flow control with lever handle
  • Bronze body rated for 600 psi operating pressure
  • Standard port design handles steam up to 250 psi
  • Chrome-plated bronze ball resists corrosion
  • Vacuum service rated to 29 in Hg

Manual Two-Way Bronze Ball Valve

The Apollo 7014364 is a manual two-way ball valve built with a bronze body and a chrome-plated bronze ball. It uses a straight, two-piece construction and a non-locking lever handle for inline flow control. This quarter-turn valve suits plumbing and compressed-air systems that require simple on/off operation.

Pressure And Media Limits

The valve handles a maximum operating pressure of 600 psi and a maximum steam pressure of 250 psi. It carries a vacuum service rating of 29 in Hg and is rated for steam media. Combustible gas service is not rated and there is no 3-A sanitary standard compliance.

Standard Port Flow Restriction

The standard port design means the flow passage is smaller than the 1/2 in nominal pipe size, creating a pressure drop at full flow. Buyers who need full-port capacity for maximum flow efficiency should select a different valve.

Highlights

  • Manual two-way flow control with lever handle
  • Bronze body rated for 600 psi operating pressure
  • Standard port design handles steam up to 250 psi
  • Chrome-plated bronze ball resists corrosion
  • Vacuum service rated to 29 in Hg

Specifications

BrandAPOLLO VALVES

Questions about this item

Is the standard port on this 1/2" FNPT bronze valve the right choice for my line size?

The standard port matches the 1/2 in nominal valve size and is suitable for general flow requirements in a 1/2 in piping system.

What does the 600 psi operating pressure mean once the valve is installed in my system?

It means the valve can safely handle up to 600 psi in normal service, while steam lines are limited to 250 psi and vacuum service is rated to 29 in Hg.

How does the FNPT thread interface affect what I can connect to this valve?

The 1/2 in FNPT female threads accept standard male NPT fittings, capping the connection to 1/2 in nominal pipe size and the pressure ratings stated.
