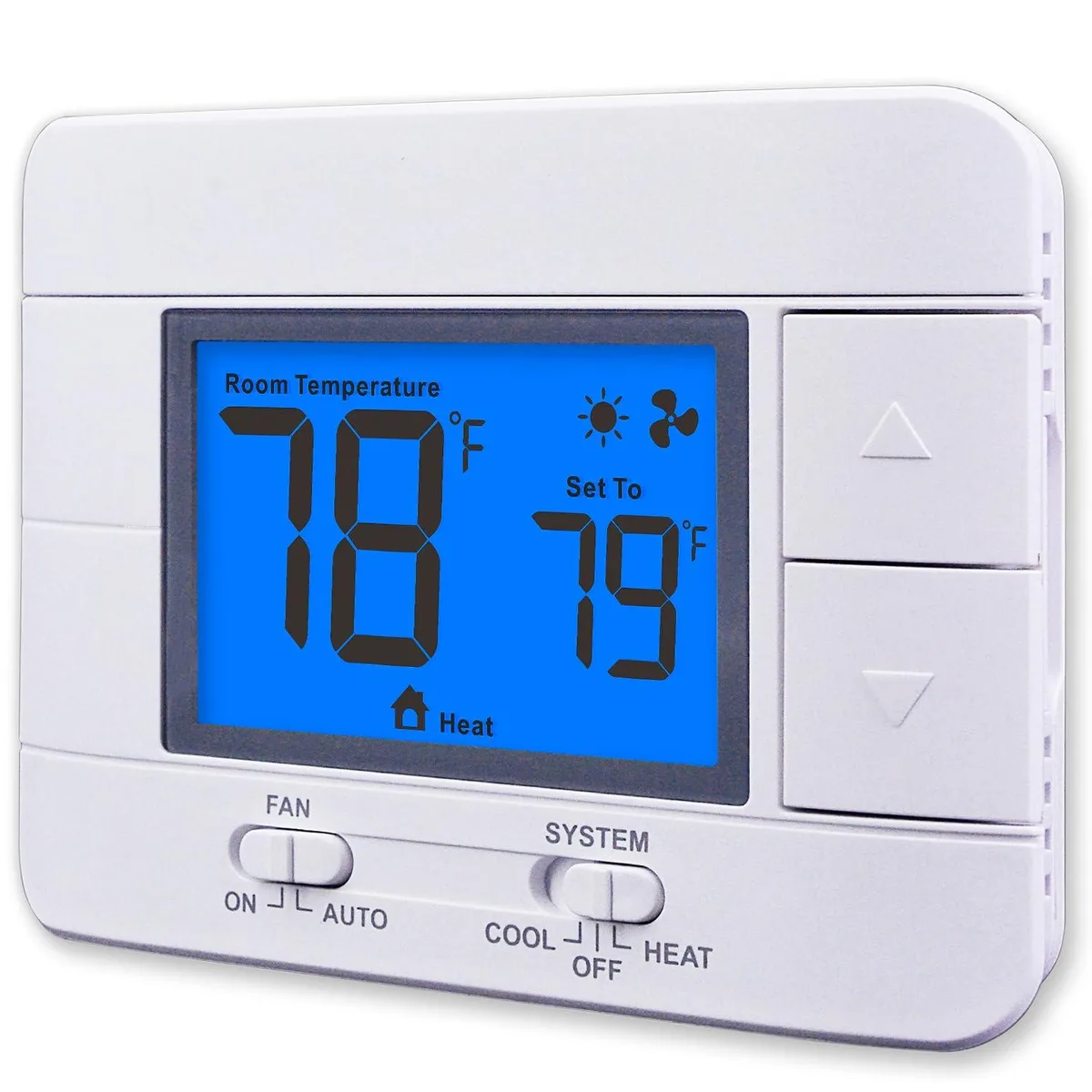

Aowel AW701 HVAC Control 24V 1 Heat 1 Cool Blue Backlit 12 Pack
A 12-pack of non-programmable 24V thermostats with blue backlit displays for single-stage heating and cooling systems
- TypeThermostat, instruction manual, label, Wall plug, Heating an
- Size/Dimensions4.92 in x 3.74 in x 0.98 in
- ColorBlue
- Voltage24 volts_of_alternating_current
- Mount TypeWall Mount
- Relay ContactModern, 24 volts_of_alternating_current
- Controls 1 heat and 1 cool single-stage systems
- Blue backlit 5.0 sq in display for clear reading
- Operates on 24 V AC with 2 AAA batteries
- Accuracy within .2 °F across 44 °F to 90 °F range
- Compact 4.92 in x 3.74 in wall-mount design
12-Pack 24 V Thermostat for Single-Stage Systems
The Aowel AW701 is a non-programmable thermostat built for conventional 1 heat / 1 cool single-stage HVAC systems such as gas, oil or electric furnaces and central air conditioning. It is sold as a 12-pack for multi-zone or multi-property installations. It is not suitable for multi-stage, heat-pump, line-voltage (120-240 V), hydronic, PTAC, mini-split or RV air-conditioning systems.
Wall-Mount Installation with Battery Power

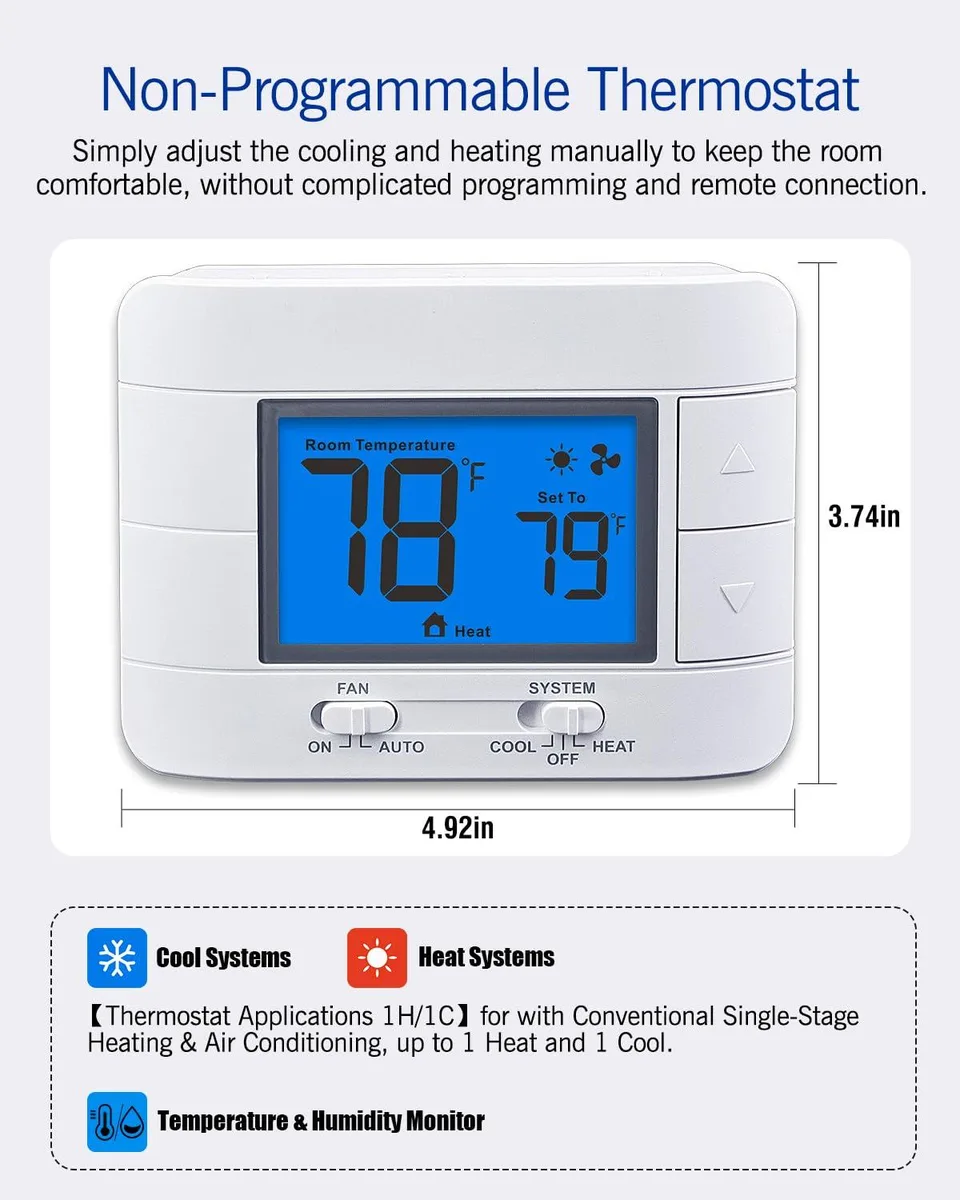

The unit mounts on a wall using the included wall plugs and operates on two AAA batteries, eliminating the need for a C-wire. Wiring bases that support only two to five wires are compatible; verify your existing base before purchasing. The thermostat measures 4.92 in x 3.74 in x 0.98 in, so check whether it will cover marks left by the previous device.
Steady-State Temperature Control
Temperature control range spans 44 °F to 90 °F with an accuracy of ±2 °F, while the display reads 32 °F to 99 °F. Separate heating and cooling swing settings adjustable from 0.2 °F to 2 °F help maintain consistent comfort during long run cycles. A 3-minute compressor delay protects the HVAC equipment from short-cycling stress under sustained load.
Highlights
- Controls 1 heat and 1 cool single-stage systems
- Blue backlit 5.0 sq in display for clear reading
- Operates on 24 V AC with 2 AAA batteries
- Accuracy within .2 °F across 44 °F to 90 °F range
- Compact 4.92 in x 3.74 in wall-mount design
Specifications
| Type | Thermostat, instruction manual, label, Wall plug, Heating and Cooling, Push Button |
|---|---|
| Brand | Aowel |
| Model | AW701 |
| Size/Dimensions | 4.92 in x 3.74 in x 0.98 in |
| Color | Blue |
| Voltage | 24 volts_of_alternating_current |
| Mount Type | Wall Mount |
| Relay Contact | Modern, 24 volts_of_alternating_current |
| Standards/Certifications | not_capable_emitting_rf_energy |
| Item Count | 12 pack |
| Selling Unit | 1, Thermostat, instruction manual, label, Wall plug |
| Features | for Conventional Single-Stage Heating (Gas/Oil/Electric Furnace) & Ventilation & Air Conditioning, Non-programmable, Manual Control, Blue Backlit Display, Temperature Calibration, Separate heating and cooling swing (Cycle Rate), Aowel |
| Parts | 1 Year |
| Labor | 1 Year |
| Part Number | AW701 |
Questions about this item
How do I verify the AW701 is working after wiring it to my 24V system?
Power on the unit; the blue backlit LCD should show the current room temperature between 32°F and 99°F, then press the heat or cool button and confirm the corresponding relay clicks and the furnace or AC starts within the 3-minute compressor delay.
What comes in the 12-pack box and what must I supply?
Each pack contains twelve AW701 thermostats, twelve instruction manuals, twelve labels and twelve wall plugs; you must provide two AAA batteries per thermostat as no C-wire is required.
Which version should I choose for a single-stage gas furnace with one heating and one cooling stage?
Select the AW701 12-pack; it is built for conventional 1H/1C 24V systems such as gas, oil or electric furnaces and will not work with multistage, heat-pump or line-voltage setups.
