Aowel AW601 1H/1C non-programmable thermostat 12 pack
A 12-pack of non-programmable 1H/1C thermostats with humidity display, ±1°F accuracy and dual 24VAC or battery power for single-stage HVAC systems
- TypeThermostat, instruction manual, label, Wall plug, Heating an
- Size/Dimensions4.92 in x 3.74 in x 0.98 in
- ColorWhite
- Voltage24 volts_of_alternating_current
- Mount TypeWall Mount
- Relay ContactModern, 24 volts_of_alternating_current
- Simple manual control with Heat/Off/Cool modes
- Works with single-stage gas, oil, electric and AC systems

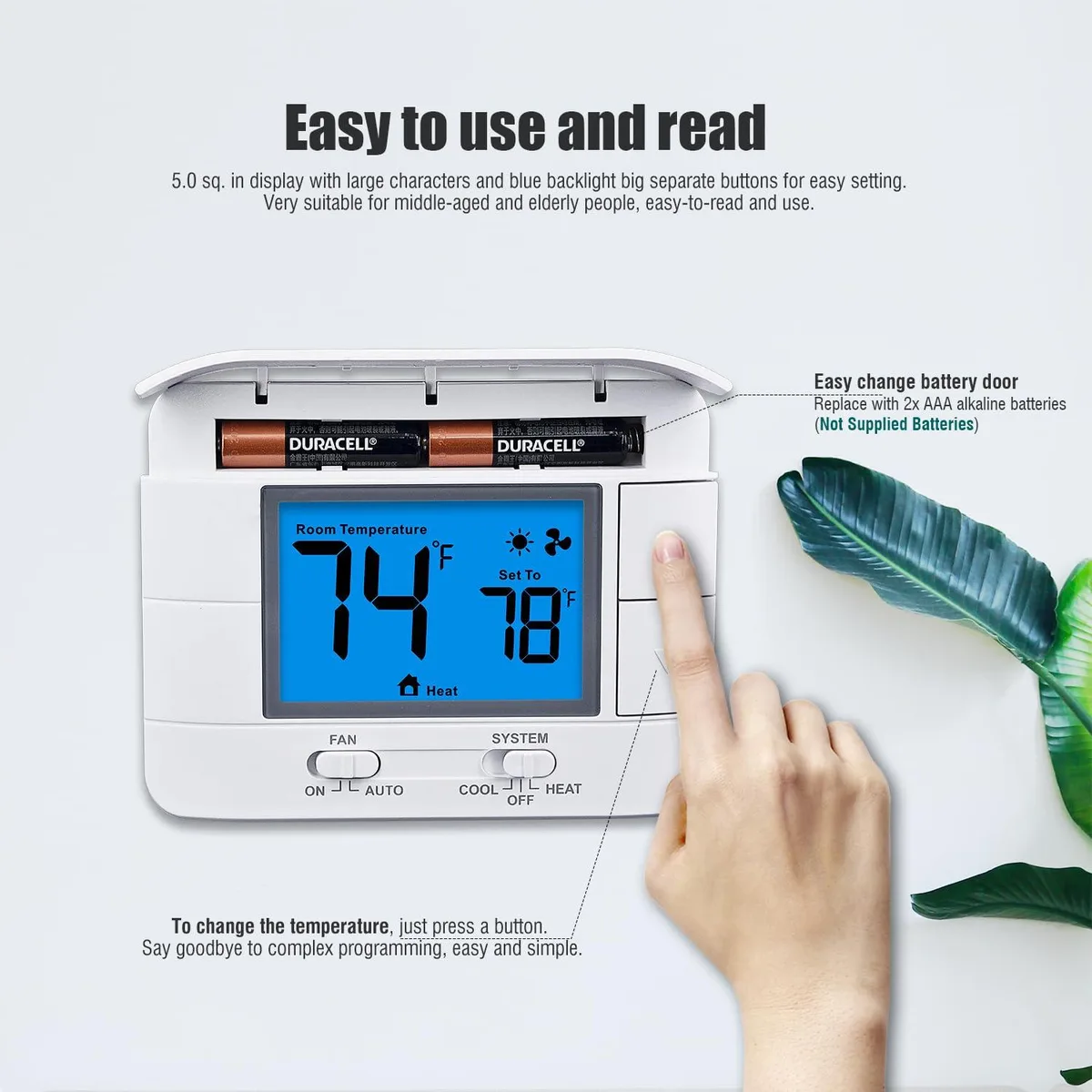

- Dual power from 24 VAC wiring or two AAA batteries
- ±1 °F accuracy with adjustable swing and calibration
- 12-pack covers multiple zones with 5.0 sq in backlit display
Non-programmable thermostat pack

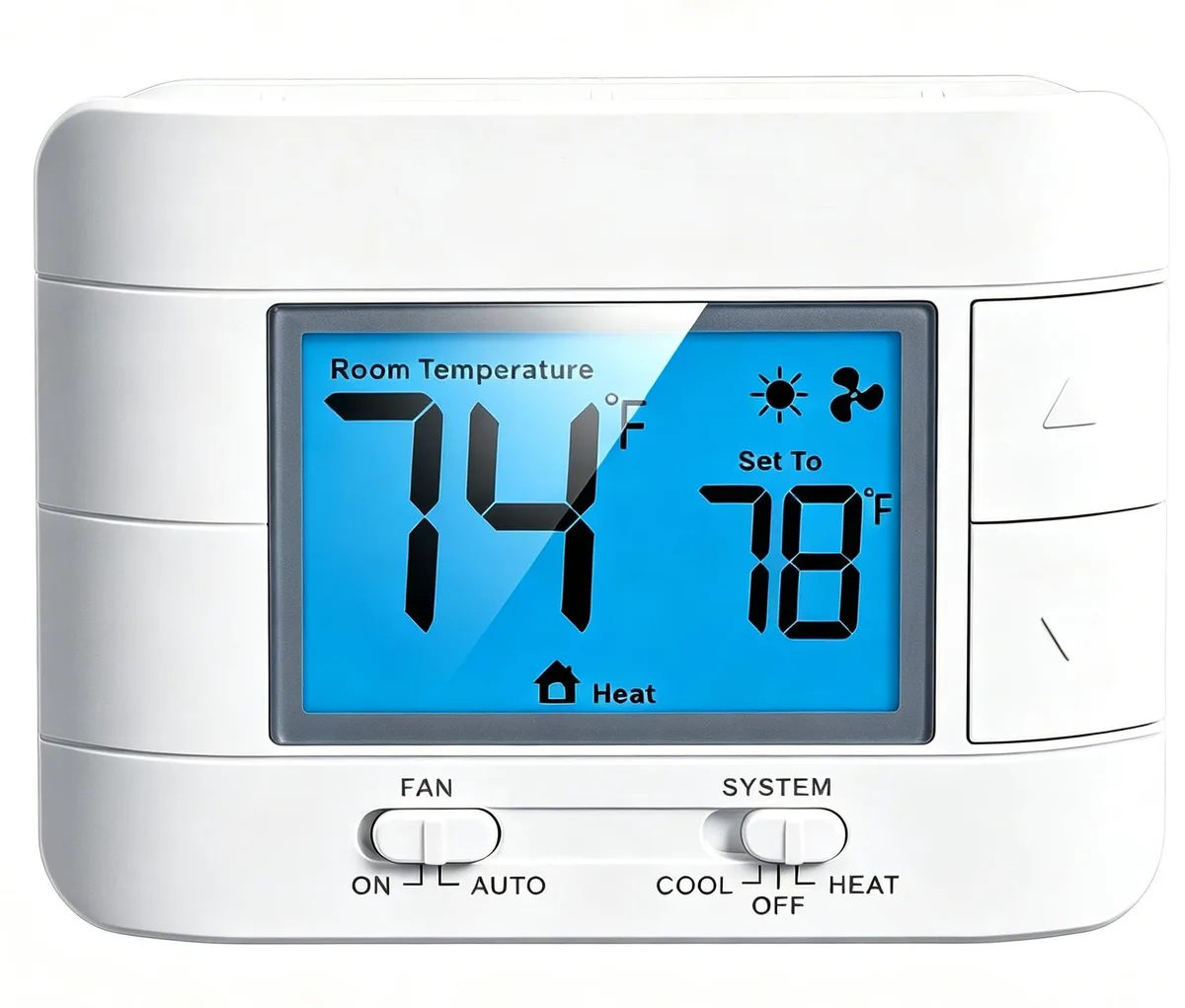

This 12-pack supplies Aowel AW601 thermostats for conventional single-stage heating and cooling systems. Each unit provides manual Heat, Off and Cool control without programming menus. The white wall-mount housing measures 4.92 × 3.74 × 0.98 in and fits standard 18-22 gauge wiring. Dual power accepts 24 VAC hardwiring or two AAA batteries.
Installers fitting basic forced-air systems
Suited for gas, oil or electric furnaces and central air conditioners that use one heating and one cooling stage. The thermostat does not support multi-stage equipment, heat pumps, mini-splits, PTAC units, hydronic systems or 120-240 V line-voltage heaters. Installers needing auxiliary heat, emergency heat or O/B changeover terminals must choose a different model.
24 VAC compatibility requirement
The relay contacts and terminal block are rated for 24 volts alternating current only. Systems wired for 120-240 V line voltage cannot be connected directly. Verify that the existing HVAC control circuit delivers 24 VAC before installation.
Highlights
- Simple manual control with Heat/Off/Cool modes
- Works with single-stage gas, oil, electric and AC systems
- Dual power from 24 VAC wiring or two AAA batteries
- ±1 °F accuracy with adjustable swing and calibration
- 12-pack covers multiple zones with 5.0 sq in backlit display
Specifications
| Type | Thermostat, instruction manual, label, Wall plug, Heating and Cooling, Push Button |
|---|---|
| Brand | Aowel |
| Model | AW601 |
| Size/Dimensions | 4.92 in x 3.74 in x 0.98 in |
| Color | White |
| Voltage | 24 volts_of_alternating_current |
| Mount Type | Wall Mount |
| Relay Contact | Modern, 24 volts_of_alternating_current |
| Standards/Certifications | not_capable_emitting_rf_energy |
| Item Count | 12 pack |
| Selling Unit | 1, Thermostat, instruction manual, label, Wall plug |
| Features | for Conventional Single-Stage Heating (Gas/Oil/Electric Furnace) & Ventilation & Air Conditioning, Separate heating and cooling swing (Cycle Rate), Aowel |
Questions about this item
Will the AW601 thermostats control my existing single-stage gas furnace and central air conditioner?
Yes, each unit works with conventional single-stage 1H/1C systems including forced-air gas, oil, or electric furnaces and standard air conditioners.
How do I verify the backlit display and humidity reading are functioning after I mount a unit?

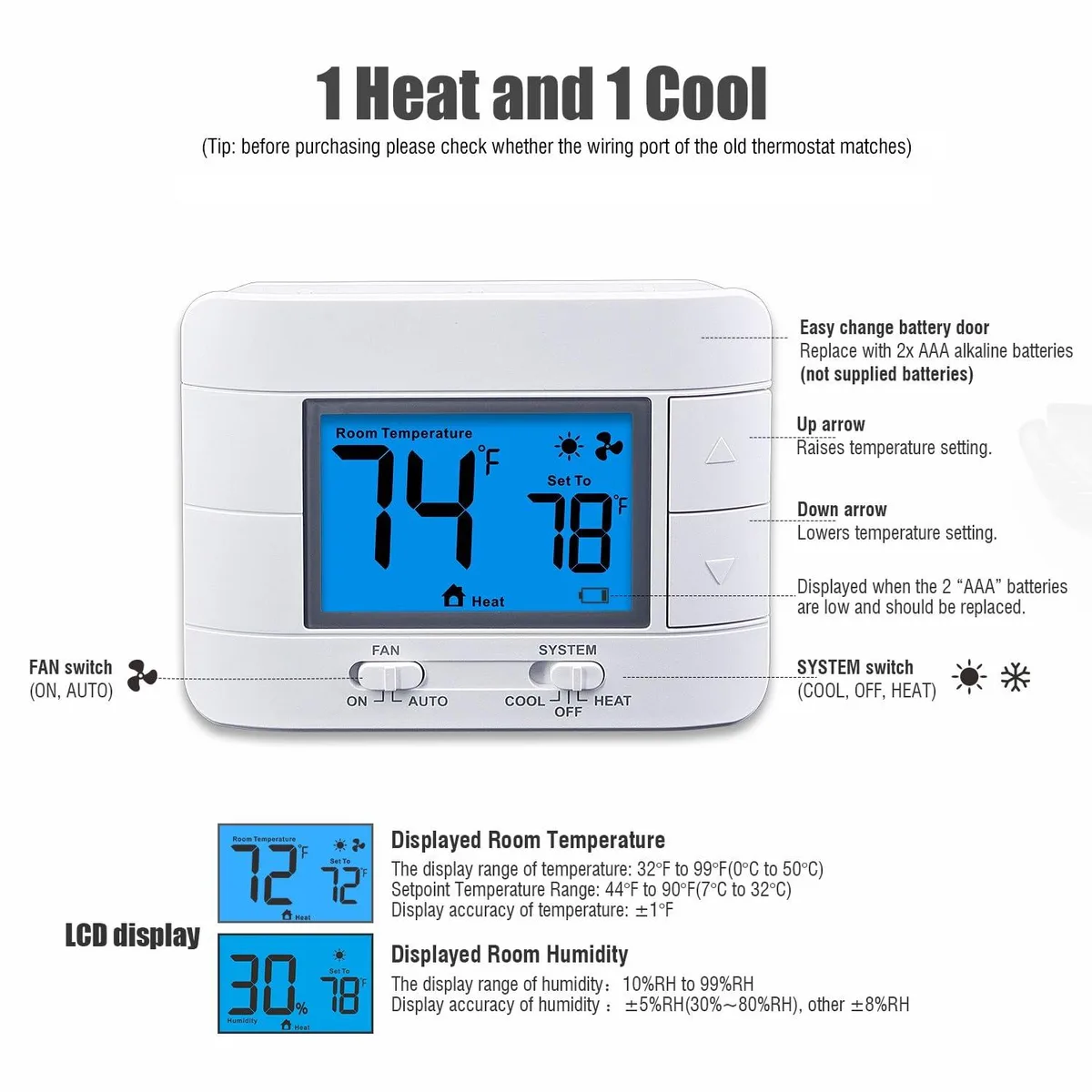

Press the manual key to activate the blue backlight on the 5.0 sq in LCD; the screen will then show both indoor temperature and humidity when the display option is turned on.
What comes in the 12-pack box and what must I supply myself?
The pack includes 12 thermostats, instruction manuals, labels and wall plugs; you must provide 2 AAA batteries per unit if not using 24 VAC hardwired power and 18-22 gauge thermostat wire for the connections.
