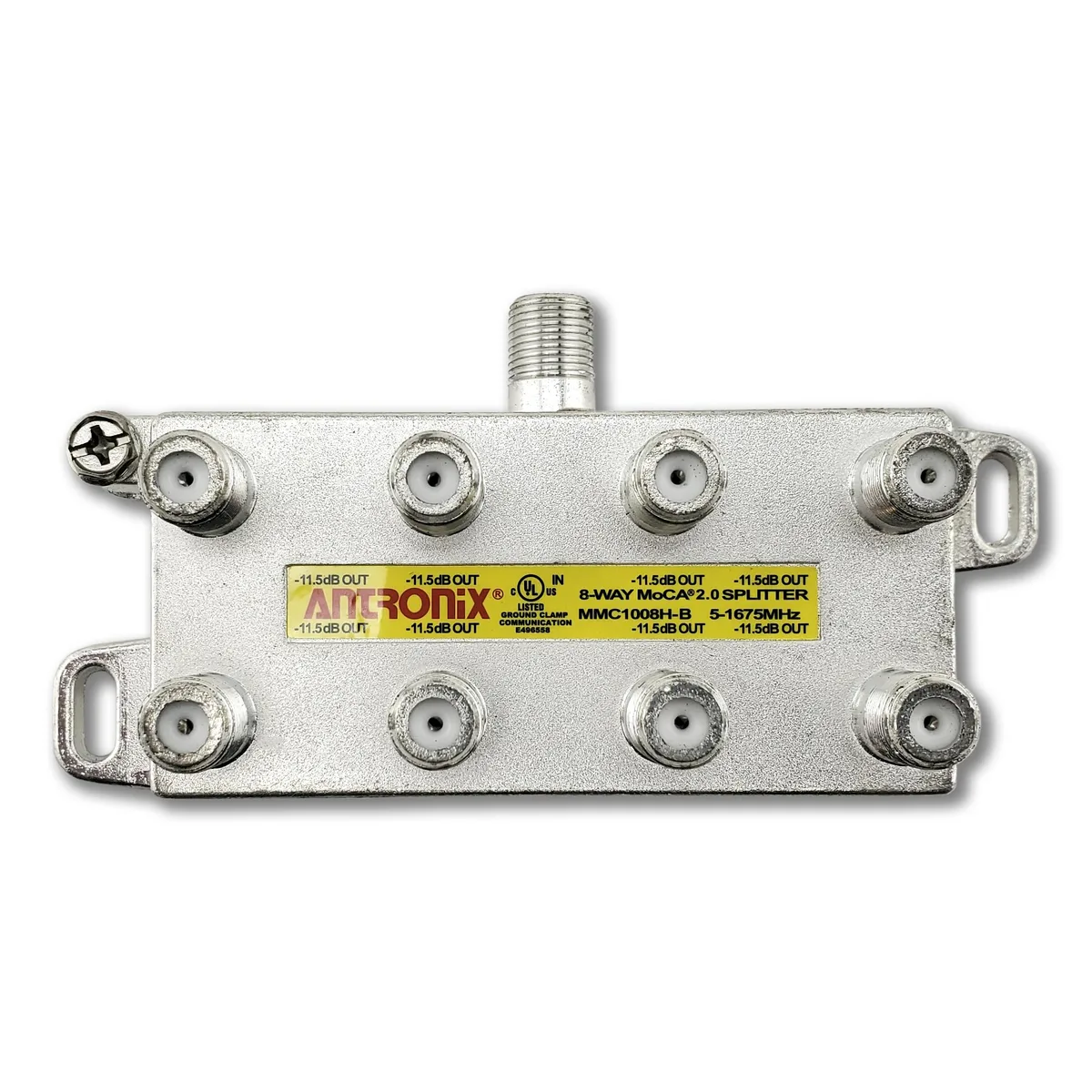

Yellow Antronix MMC1008H-B 8-way MoCA 2.0 splitter, compact metal housing with eight F-ports

Antronix

Antronix MMC1008H-B 8-way MoCA 2.0 splitter 5-1675 MHz

SKU CH-GMB2-GS1M9

Eight-way MoCA 2.0 splitter covering 5-1675 MHz with 6 kV surge protection on every port and 400% more F-port contact surface

  • ColorYellow
  • Weight0.3750

Option 8 Way

  • MoCA 2.0 optimised in the 975-1675 MHz band for high-speed networking
  • 6 kV ring-wave surge protection on every port meets IEEE C62.41 Category A3
  • Proprietary ferrite stays ultra-linear after surges preventing intermodulation distortion
  • Eclipse Contact Technology gives 400 % more contact area for reliable F-port connections
  • Capacitively coupled F-ports block AC surges and protect against core saturation

What it is

The Antronix MMC1008H-B is an eight-way splitter designed for MoCA 2.0 networks operating in the 975-1675 MHz band. It distributes signals across a 5-1675 MHz range for multi-room DVR, video sharing and video conferencing applications. The yellow housing identifies the unit in structured wiring enclosures. It suits installers expanding a single coax feed to eight outlets.

Installation notes

Each F-port uses Eclipse Contact Technology giving 400% more contact area for lower resistance and reliable seating. Capacitively coupled ports block AC surges while the proprietary ferrite blend resists core re-magnetisation after voltage spikes. Tighten connectors by hand plus a quarter turn with a wrench; over-torquing can crack the port body. Verify all eight ports are terminated or capped to maintain MoCA 2.0 performance and prevent ingress.

Deciding specification

The splitter is optimised for MoCA 2.0 in the 975-1675 MHz band, so it is the right part only when the network uses that specific frequency range for data and video traffic. Every port carries 6 kV ring wave surge protection per IEEE C62.41 Category A3 and maintains -45 dBmV spurious and harmonics after five surges with a +55 dBmV return signal. If the installation does not require MoCA 2.0 bandwidth or surge hardening, a different splitter class may be more appropriate.

Highlights

  • MoCA 2.0 optimised in the 975-1675 MHz band for high-speed networking
  • 6 kV ring-wave surge protection on every port meets IEEE C62.41 Category A3
  • Proprietary ferrite stays ultra-linear after surges preventing intermodulation distortion
  • Eclipse Contact Technology gives 400 % more contact area for reliable F-port connections
  • Capacitively coupled F-ports block AC surges and protect against core saturation

Specifications

BrandAntronix
ModelMMC1008H-B
Part NumberMMC1008H-B
ColorYellow
Weight0.3750

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the splitter is handling MoCA 2.0 traffic correctly after installation?

Check that connected MoCA adapters report link rates in the 975-1675 MHz band and that return-path signals stay clean at +55 dBmV without spurious emissions exceeding -45 dBmV.

What comes in the box and what must I source separately?

The package contains the yellow 8-way splitter with Eclipse Contact Technology F-ports; you will need coaxial cables and F-connectors for each run.

Which Antronix MoCA 2.0 splitter model should I choose for an 8-port Frontier Fios deployment?

Select the MMC1008H-B; it is the 8-way version in the MMC1000-B series built for 5-1675 MHz MoCA 2.0 service.
