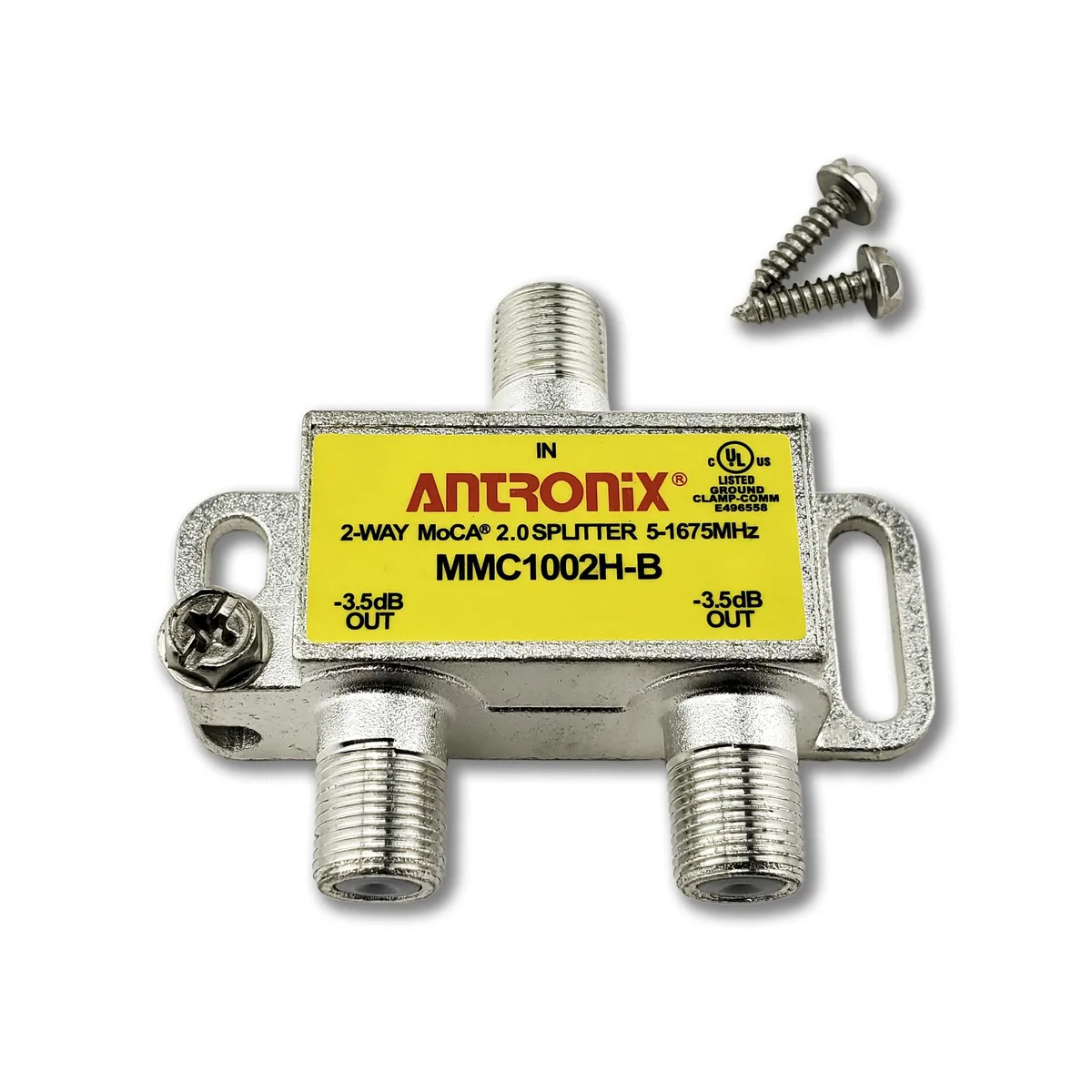

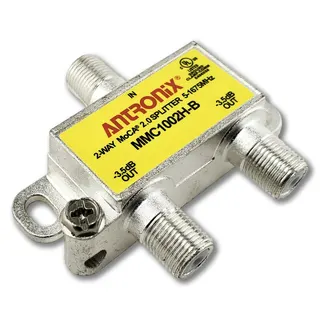

Yellow Antronix MoCA 2.0 splitter with two F-ports

Antronix

Antronix MMC1002H-B 2-Way MoCA 2.0 Splitter 5-1675 MHz Yellow

SKU CH-TFZV-0KT6P

A MoCA 2.0 optimised two-way splitter covering 5-1675 MHz with 6 kV surge protection on every port

  • ColorYellow
  • Weight0.2

Option 2 Way

  • MoCA 2.0 optimised across the 975-1675 MHz band
  • 6 kV ring-wave surge protection on every port per IEEE C62.41 Category A3
  • Proprietary ferrite stays ultra-linear after multiple surges
  • Eclipse Contact Technology gives 400% more F-port contact area
  • Capacitively coupled F-ports block AC surges and prevent core saturation

Product identity

The Antronix MMC1002H-B is a two-way splitter built for MoCA 2.0 networks operating in the 975-1675 MHz band. It suits installers and homeowners extending Frontier or former Verizon Fios services over existing coaxial wiring. The yellow housing identifies the unit at a glance in structured-wiring enclosures.

Upgrade path

It replaces standard splitters that lack MoCA 2.0 optimisation and 6 kV ring-wave surge protection per IEEE C62.41 Category A3. The jump is worthwhile when impulse noise or lightning risk demands the proprietary ferrite blend that inhibits core re-magnetisation after multiple surges. Eclipse Contact Technology F-ports add 400% more contact surface for lower resistance.

Capacity and headroom

The splitter passes forward-path video while handling a +55 dBmV return signal with -45 dBmV spurious and harmonic suppression after five 6 kV surges. Capacitively coupled F-ports block AC surges and protect against core saturation. It runs out of headroom if the installation requires more than two output ports or frequency coverage beyond 1675 MHz.

Highlights

  • MoCA 2.0 optimised across the 975-1675 MHz band
  • 6 kV ring-wave surge protection on every port per IEEE C62.41 Category A3
  • Proprietary ferrite stays ultra-linear after multiple surges
  • Eclipse Contact Technology gives 400% more F-port contact area
  • Capacitively coupled F-ports block AC surges and prevent core saturation

Specifications

BrandAntronix
ColorYellow
Weight0.2

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What F-connector size does the MMC1002H-B use for coaxial cable?

The splitter uses standard 75-ohm F-ports with Eclipse Contact Technology that provides 400% more contact surface area for lower resistance and higher reliability.

Which step is most often missed when installing this MoCA 2.0 splitter?

Many installers forget to torque every F-connector to the proper specification; hand-tight plus one-quarter turn with a wrench ensures the capacitively coupled ports maintain surge protection and MoCA 2.0 performance up to 1675 MHz.

How do I know when the surge protection on this splitter has been exhausted?

After multiple 6 kV ring wave events the proprietary ferrite core remains ultra-linear, but if return-path signals exceed +55 dBmV and spurious harmonics rise above -45 dBmV the unit should be replaced.
