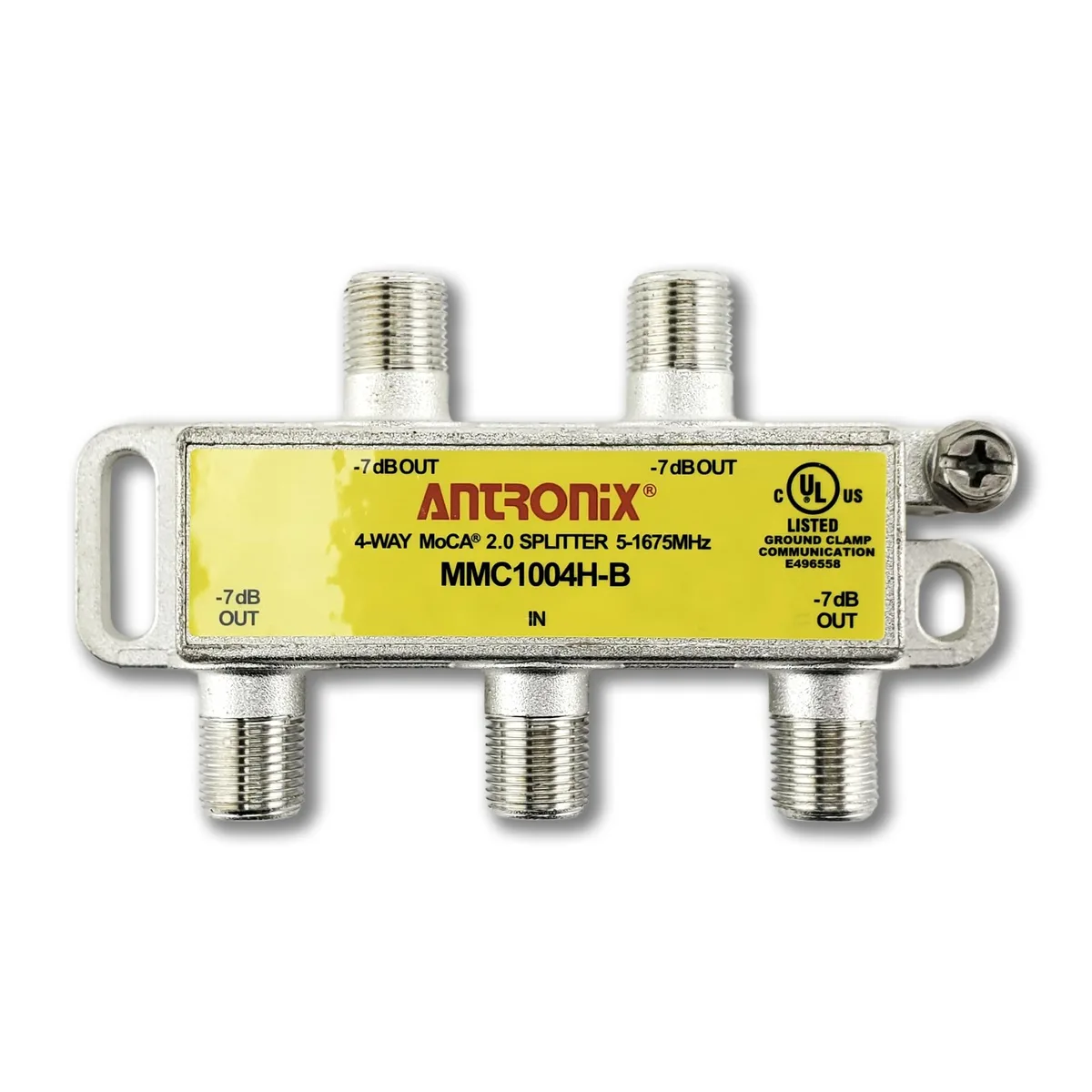

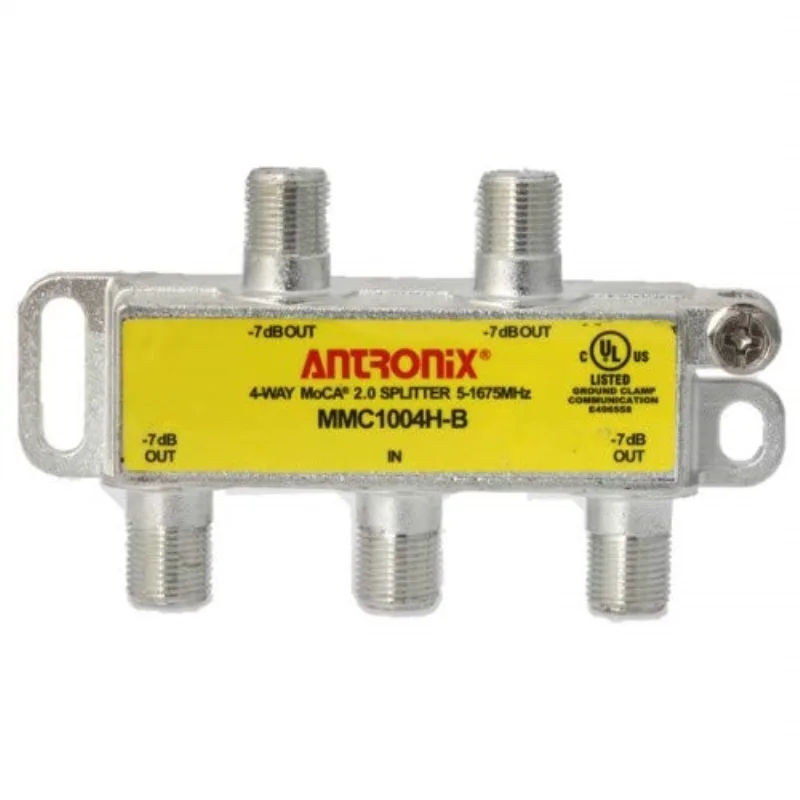

Yellow Antronix four-way coaxial splitter with F-type ports

Antronix

Antronix MMC1004H-B 4 Way Splitter 5-1675 MHz MoCA 2.0

SKU CH-1WX2-593GZ

Four-way coaxial splitter covering 5-1675 MHz with MoCA 2.0 optimisation in the 975-1675 MHz band

  • ColorYellow
  • Weight0.2000

Option 4 Way

  • MoCA 2.0 optimised across the 975-1675 MHz band
  • 6 kV ring-wave surge protection on every port per IEEE C62.41 Category A3
  • Proprietary ferrite blend stays ultra-linear after repeated surges
  • Eclipse Contact Technology gives 400 % more contact surface for lower resistance
  • Capacitively coupled F-ports block DC while passing RF signals

Purpose and Application

The Antronix MMC1004H-B is a four-way splitter designed for MoCA 2.0 networks operating in the 975-1675 MHz band. It suits installers deploying multi-room DVR service, video sharing or video conferencing over coaxial infrastructure where MoCA compatibility is required.

Sustained Performance

The proprietary ferrite blend inhibits re-magnetisation of the core caused by impulse noise or lightning spikes, keeping the ferrite ultra-linear to prevent intermodulation where high-level return carriers could affect forward video signals. High-Q surface-mount components guarantee consistent performance over time and temperature.

Protection and Build

All ports are protected against multiple 6 kV ring wave surges meeting IEEE C62.41 Category A3, maintaining -45 dBmV spurious and harmonics after five surges with a +55 dBmV return. Eclipse Contact Technology F-ports provide 400% more contact surface area for lower resistance and higher reliability.

Highlights

  • MoCA 2.0 optimised across the 975-1675 MHz band
  • 6 kV ring-wave surge protection on every port per IEEE C62.41 Category A3
  • Proprietary ferrite blend stays ultra-linear after repeated surges
  • Eclipse Contact Technology gives 400 % more contact surface for lower resistance
  • Capacitively coupled F-ports block DC while passing RF signals

Specifications

BrandAntronix
ColorYellow
Weight0.2000

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 6 kV ring-wave surge protection on the Antronix MMC1004H-B keep noise and heat low during continuous operation?

The splitter has no active components, so it generates no heat or audible noise; its passive design and 6 kV ring-wave protection per IEEE C62.41 Category A3 simply pass signals while guarding against voltage spikes.

What cables and connectors must I already own to install this 4-way MoCA 2.0 splitter?

You need coaxial cables with standard F-type male connectors for the single input and four output ports; no power supply or special adapters are required.

Will this splitter work with older MoCA 1.1 adapters I still use on the same coax network?

Yes, the 5-1675 MHz bandwidth covers legacy MoCA frequencies, and the -45 dBmV spurious performance after surges keeps intermodulation low for mixed-generation devices.
