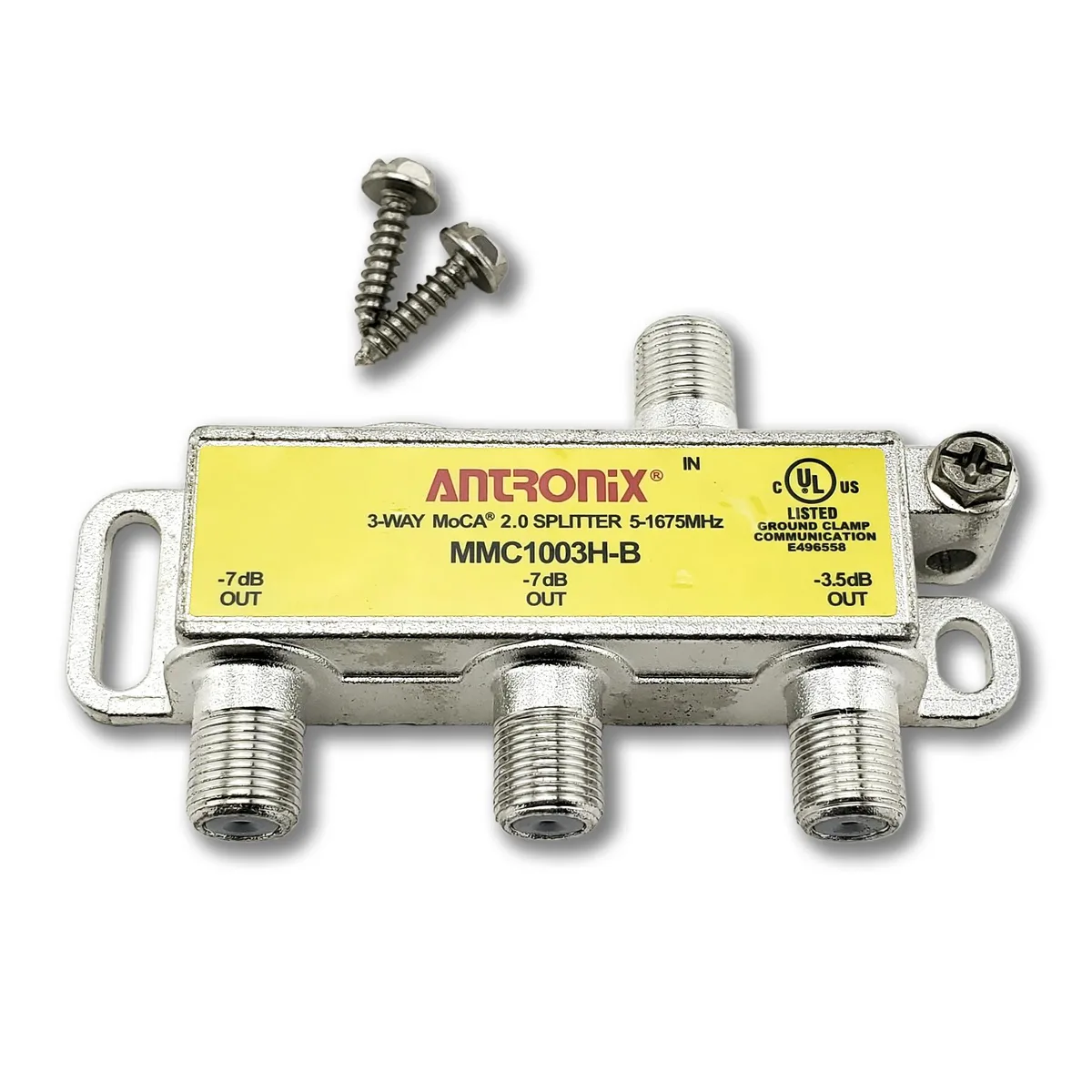

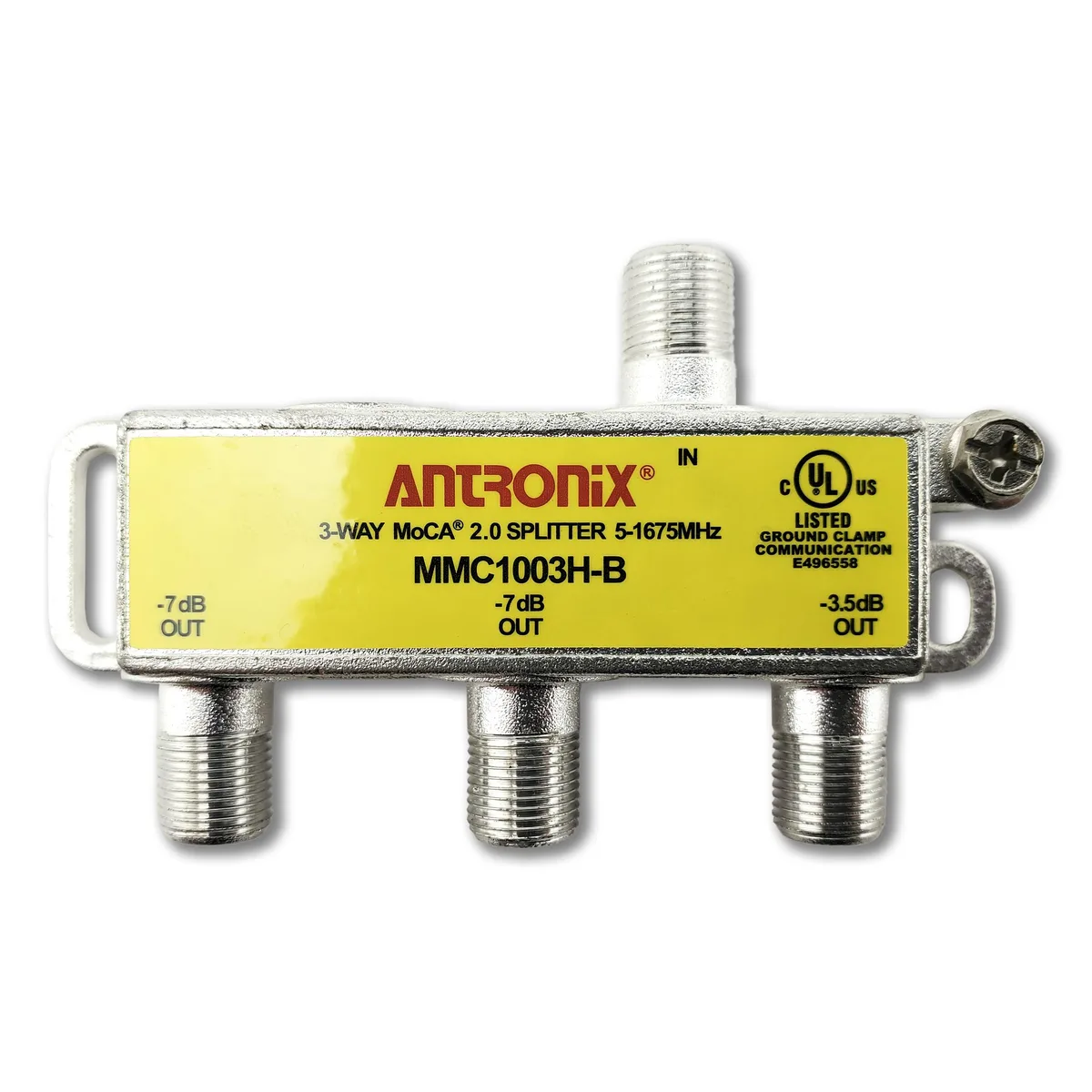

Yellow Antronix MMC1003H-B 3-way MoCA 2.0 splitter with F-type ports

Antronix

Antronix MMC1003H-B 5-1675 MHz MoCA 2.0 3-Way Splitter

SKU CH-GXFA-56RQW

A three-way MoCA 2.0 splitter operating from 5 to 1675 MHz with optimised performance in the 975 to 1675 MHz band and 6 kV surge protection on every port

  • ColorYellow
  • Weight0.2000

Option 3 Way

  • Optimised for MoCA 2.0 data rates in the 975-1675 MHz band
  • Supports video sharing and multi-room DVR over MoCA networks
  • Every port protected by 6 kV ring wave surge suppression
  • Proprietary ferrites stay ultra-linear after repeated surge events
  • High-Q SMT components ensure consistent performance over temperature

MoCA 2.0 3-Way Splitter

The Antronix MMC1003H-B is a 3-way splitter designed for MoCA 2.0 networks operating between 975 MHz and 1675 MHz. It supports video sharing, multi-room DVR service, video conferencing and other MoCA applications in residential or professional video installations.

Surge Protection and SMT Build

Every port provides 6 kV ring wave surge protection with proprietary ferrites that stay ultra-linear after multiple surges. High-Q surface mount components deliver consistent performance across time and temperature without additional software or accessories in the package.

Bandwidth Headroom and Port Limits

The 5 MHz to 1675 MHz range handles MoCA 2.0 data rates for multi-room video and networking across three output ports. It does not support frequencies above 1675 MHz, so systems requiring extended spectrum or additional ports will need a different device.

Highlights

  • Optimised for MoCA 2.0 data rates in the 975-1675 MHz band
  • Supports video sharing and multi-room DVR over MoCA networks
  • Every port protected by 6 kV ring wave surge suppression
  • Proprietary ferrites stay ultra-linear after repeated surge events
  • High-Q SMT components ensure consistent performance over temperature

Specifications

BrandAntronix
ModelMMC1003H-B
Part NumberMMC1003H-B
ColorYellow
Weight0.2000

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 6 kV surge protection on each port need replacement after several hits?

The proprietary ferrites stay ultra-linear after multiple surges, so the protection does not degrade with normal events.

What frequency band limits MoCA 2.0 throughput on this splitter?

The 975-1675 MHz band is optimised for MoCA 2.0, so performance tops out at the upper edge of that range.

Does the unit run hot or draw extra power during continuous multi-room DVR use?

High-Q SMT components keep performance consistent over temperature, and the passive design adds no active heat or power draw.
