Metal-encased HV DC-DC module with standardized connectors

Analog Technologies, Inc.

Analog Technologies, Inc. HV DC-DC Power Supply Module 12V -1KV 20mA

SKU CH-0Z7V-YRN3R

Delivers adjustable high-voltage output up to 500 V at 20 mA from a 12 V input for industrial and scientific equipment

  • TypeLinear Power Supplies
  • Voltage-1KV
  • Amps20mA
  • Delivers up to 500V output for high-voltage industrial applications
  • 12V input with 550mA to 2.4A range suits standard low-voltage systems
  • 20mA maximum output current supports precision low-power equipment

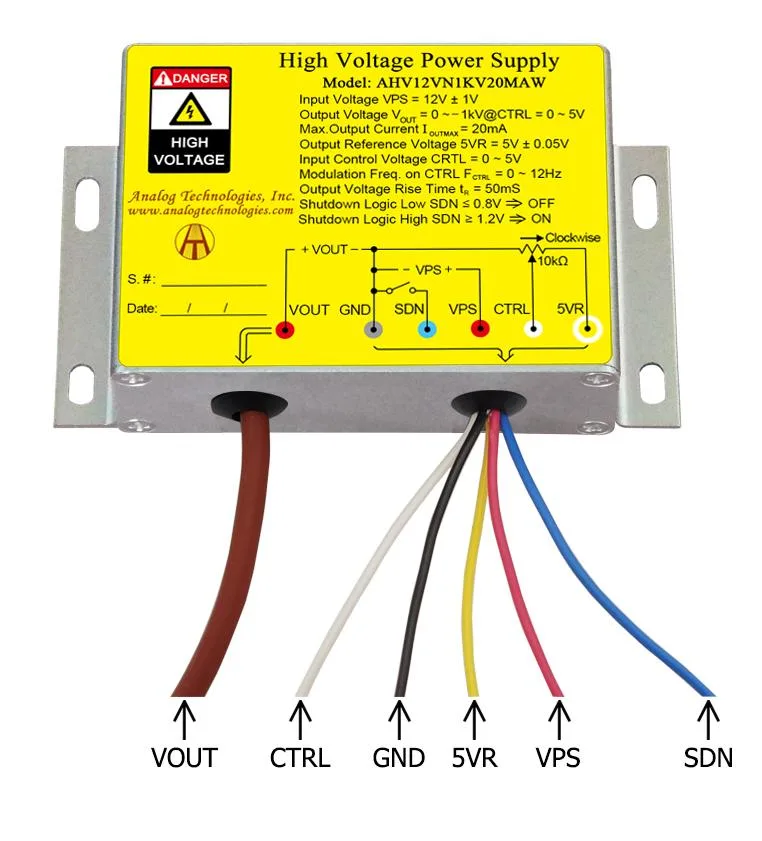

  • Metal enclosure provides zero EMI and effective heat sinking
  • Electronic shutdown control enables safe and immediate power termination

High-Voltage DC-DC Module for Industrial Use

This linear power supply converts a 12 VDC input into a regulated negative output up to 1 KV at 20 mA. It targets engineers integrating high-voltage sources into X-ray, spectroscopy or semiconductor equipment. The adjustable 0–500 V control range suits precision deposition and particle-accelerator rigs.

Metal Enclosure with EMI-Free Operation

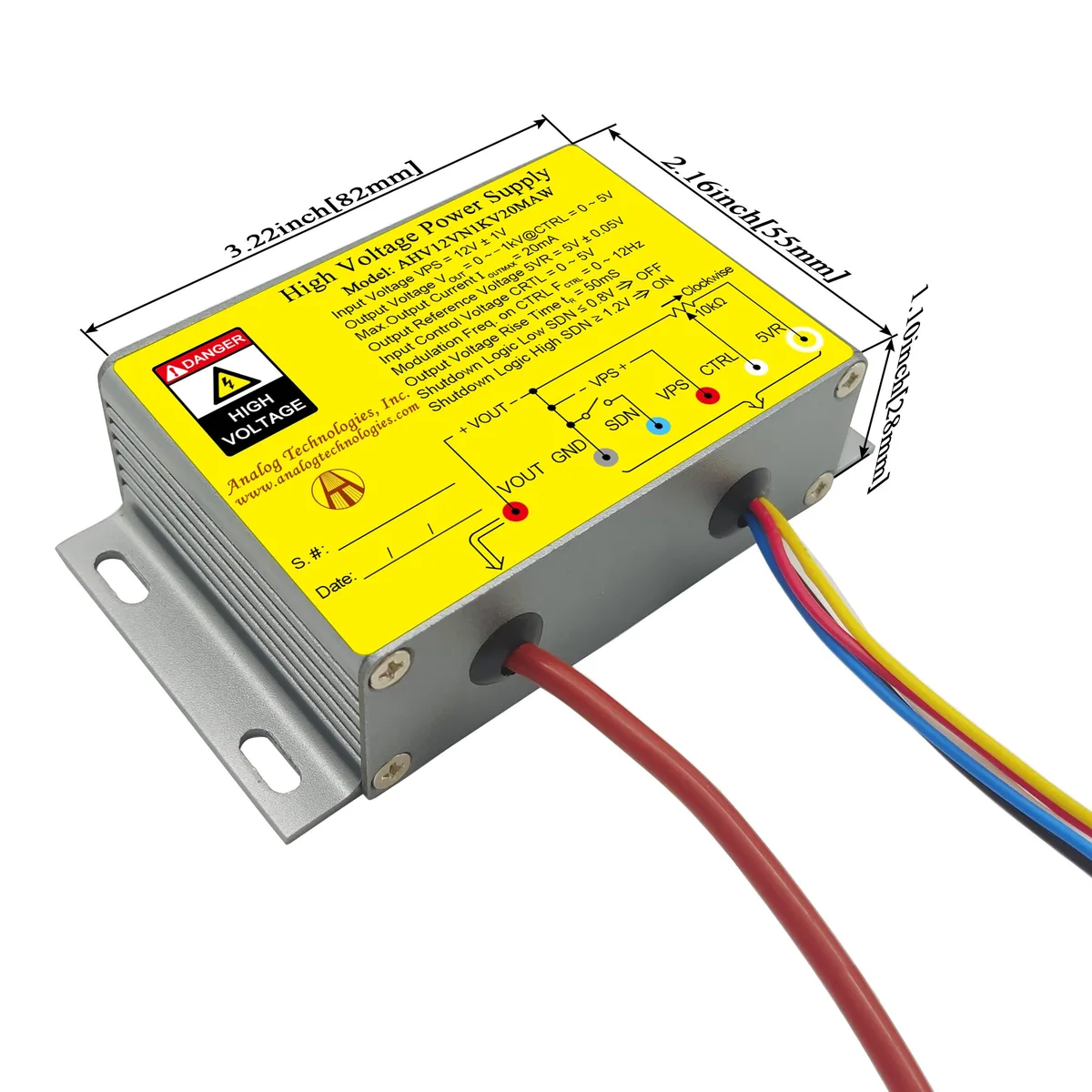

A rugged metal housing provides shielding and heat sinking so the module runs cleanly in electrically noisy plants. Standardised connectors and a compact footprint simplify mounting inside existing cabinets or test stands. Electronic shutdown control adds a safety layer for automated sequences.

Verify 12 V Rail Capacity and Control Scheme

Your 12 V source must supply between 550 mA and 2.4 A depending on load. The control input accepts 0–5 V to set output voltage, so confirm your controller matches that range. No isolated control interface is included, so plan wiring accordingly.

Highlights

  • Delivers up to 500V output for high-voltage industrial applications
  • 12V input with 550mA to 2.4A range suits standard low-voltage systems
  • 20mA maximum output current supports precision low-power equipment
  • Metal enclosure provides zero EMI and effective heat sinking
  • Electronic shutdown control enables safe and immediate power termination

Specifications

TypeLinear Power Supplies
Voltage-1KV
Amps20mA

Questions about this item

How does the 0 to 5V control voltage set the -1KV output?

The module accepts a 0 to 5V control signal that linearly scales the high-voltage output from 0 up to -500V, with a 5V reference accurate to ±0.05V.

What physical mounting does the metal enclosure require?

The metal enclosure provides heat sinking and EMI shielding; it must be securely bolted to a conductive chassis or heatsink surface for thermal transfer and grounding.

What input current must the 12V source supply at full load?

At maximum output the module draws up to 2.4A from the 12V rail, so the source and wiring must be rated for at least that current with minimal voltage drop.
