Compact metal-enclosed HV DC-DC module with standardized connectors

Analog Technologies, Inc.

Analog Technologies, Inc. AHV12VN10KV1MAW HV DC-DC Power Supply Module 12V Input -10KV Output 1mA

SKU CH-XBGA-FS0Y2

High-voltage DC-DC module converts 12V input to adjustable −10 kV at 1 mA for X-ray, spectroscopy and semiconductor equipment

  • TypeLinear Power Supplies
  • Voltage-10KV
  • Amps1mA
  • Delivers stable -10 kV output for sensitive industrial equipment
  • Precision regulation via 0–5 V control voltage protects against fluctuations
  • Metal enclosure provides zero EMI emissions and effective heat sinking
  • Wide 350 mA to 1.2 A input range eases system integration
  • Trusted Analog Technologies engineering ensures reliable high-voltage DC-DC conversion

High-Voltage DC-DC Module for Industrial Use

The AHV12VN10KV1MAW converts a 12 V DC input into a regulated negative output up to -10 kV at 1 mA. It is built for engineers and technicians who need a compact high-voltage source in X-ray, spectroscopy, semiconductor or research equipment.

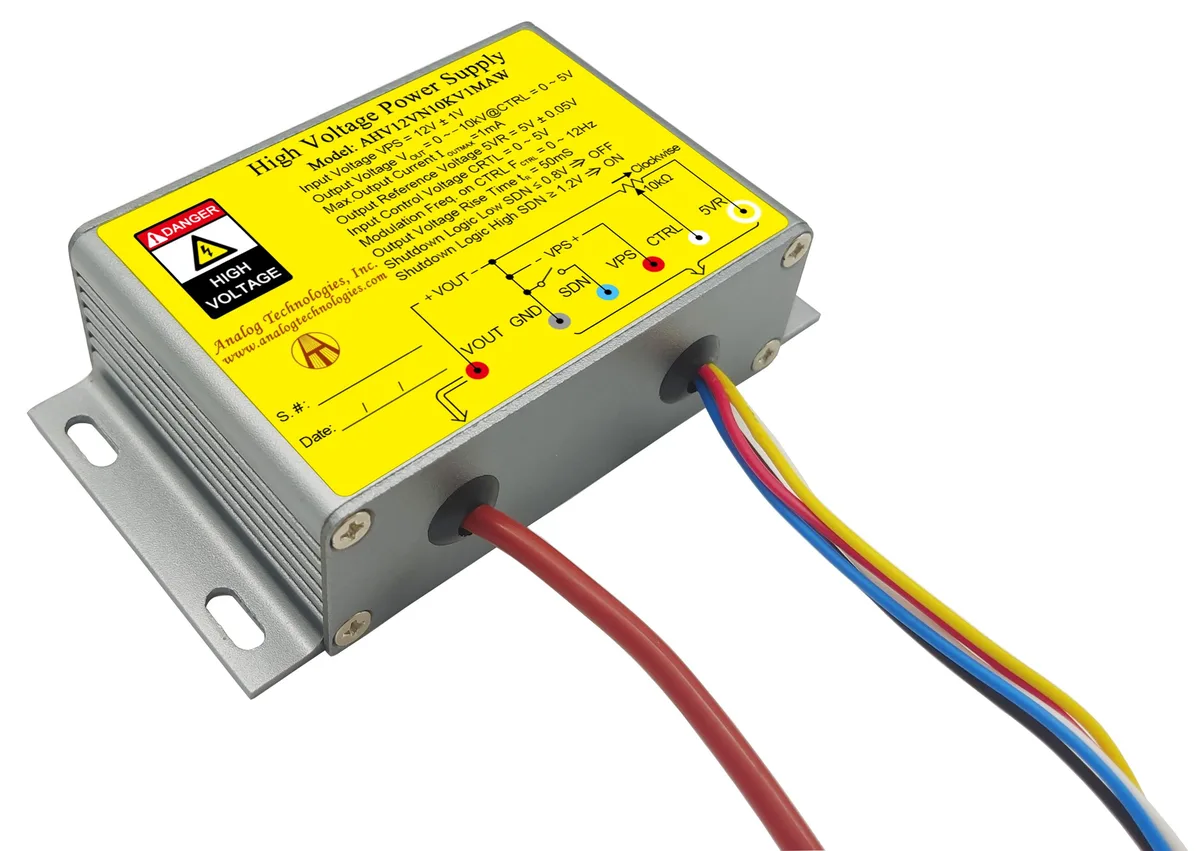

Straightforward Integration with Metal Enclosure

Standardised connectors and a compact metal case allow direct mounting in existing racks or enclosures. The housing provides shielding and heat sinking, so no extra EMI filtering or forced-air cooling is normally required. Wiring mistakes on the 0–5 V control line are the most common issue; verify polarity and the 12 V ± 1 V supply tolerance before powering the unit.

Output Voltage Range Defines Suitability

The adjustable 0 to -10 kV output, set by a 0–5 V control signal, is the single parameter that determines whether this module fits the application. If the process requires a higher potential, a different supply must be selected.

Highlights

  • Delivers stable -10 kV output for sensitive industrial equipment
  • Precision regulation via 0–5 V control voltage protects against fluctuations
  • Metal enclosure provides zero EMI emissions and effective heat sinking
  • Wide 350 mA to 1.2 A input range eases system integration
  • Trusted Analog Technologies engineering ensures reliable high-voltage DC-DC conversion

Specifications

TypeLinear Power Supplies
Voltage-10KV
Amps1mA

Questions about this item

How do I confirm the module is regulating voltage correctly after wiring it?

Apply a 0 to 5V control signal and verify the output tracks 0 to -10V proportionally; the internal 5V reference should measure 5V ± 0.05V when powered.

What comes in the box and what must I source separately?

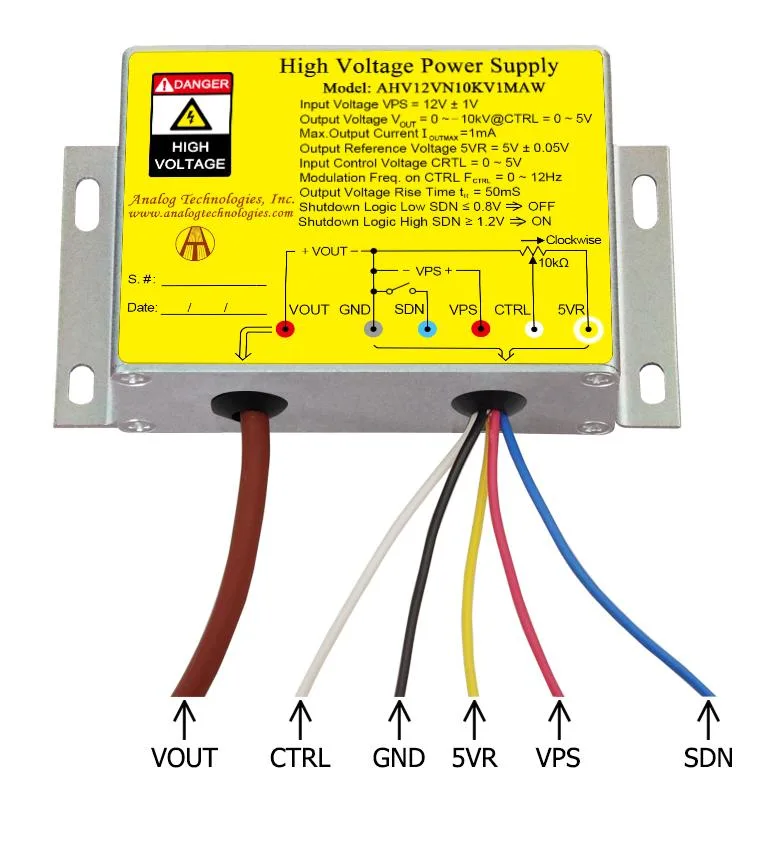

The module itself is supplied; you must provide a 12V ± 1V source capable of 350mA to 1.2A and a 0 to 5V control voltage for the CTRL input.

Which output voltage range suits my application?

The single version delivers 0 to -10V adjustable via the 0 to 5V control input at up to 1mA; choose it when you need negative high voltage up to -10V.
