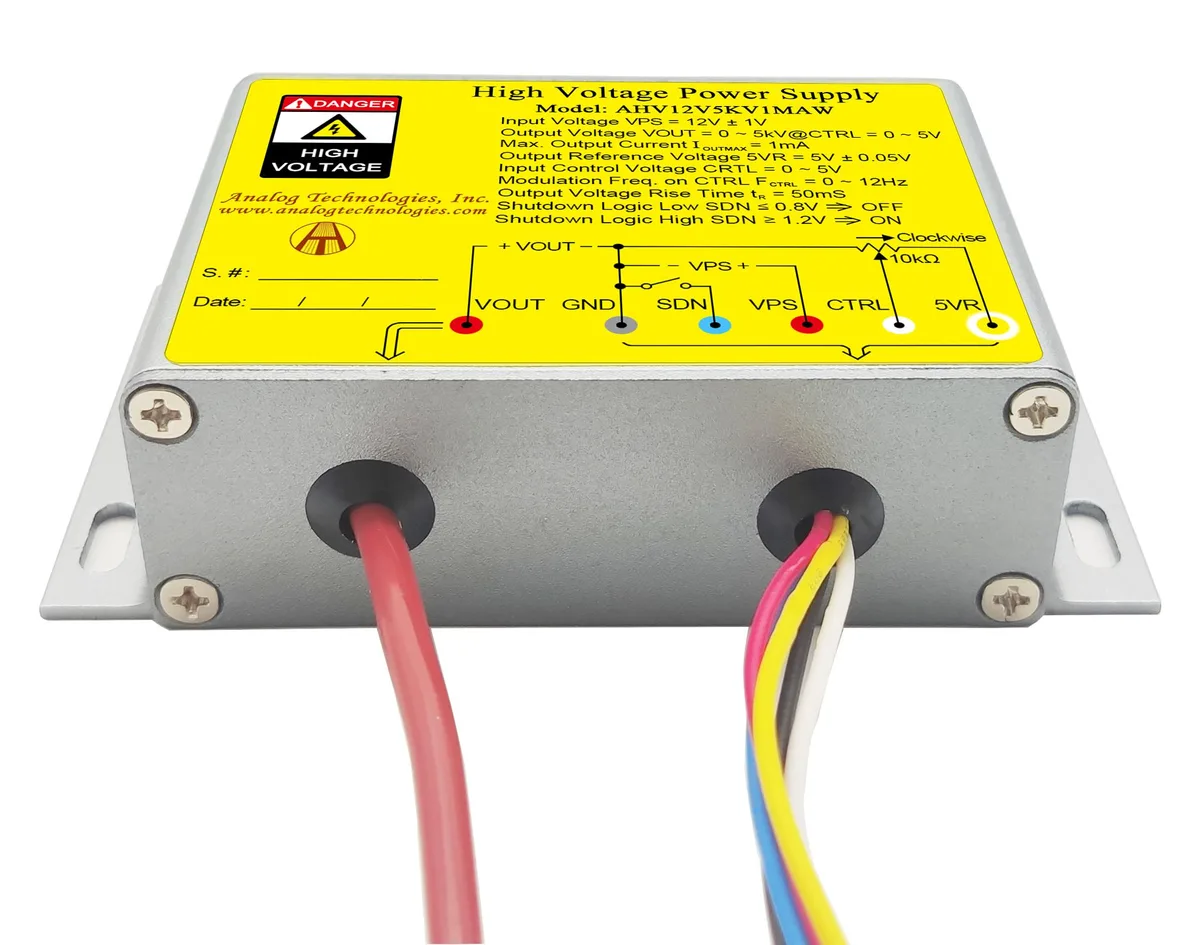

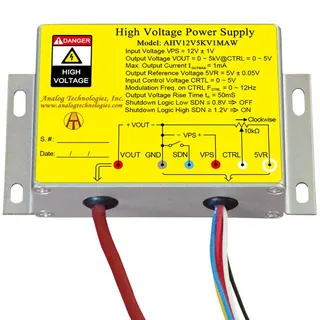

Compact metal-encased DC-DC high-voltage module with screw terminals

Analog Technologies, Inc.

Analog Technologies, Inc. AHV12V5KV1MAW DC-DC HV Power Supply Module 12V 5kV 1mA

SKU CH-N892-WEE13

Converts a 12 V input to an adjustable 0–5 kV output at up to 1 mA for precision industrial applications

  • TypeLinear Power Supplies
  • Voltage5KV
  • Amps1mA
  • Delivers up to 5 kV output for demanding high-voltage applications
  • Operates from a 12 V input with 140 mA to 600 mA draw
  • Precision 0–5 V control enables accurate voltage regulation
  • Metal enclosure provides zero EMI and effective heat sinking
  • Suited for X-ray, spectroscopy and semiconductor manufacturing equipment

Industrial DC-DC High-Voltage Module

This linear power supply converts a 12 V input into an adjustable 0 to 5 kV output with a maximum current of 1 mA. It is built for engineers and technicians who need a compact high-voltage source for scientific or industrial equipment. The metal enclosure provides shielding and heat dissipation for stable operation in demanding environments.

Control and Protection Features

An electronic shutdown function allows the output to be disabled remotely for safety during integration. A precision 5 V reference voltage with a tight tolerance supports accurate external circuitry. The 0 to 5 V control input enables linear output regulation without additional programming hardware.

Input Current Determines System Compatibility

The module draws between 140 mA and 600 mA from the 12 V rail depending on load conditions. This range dictates the capacity required from the host power source and must be verified against the available supply budget before installation. Systems with limited auxiliary current headroom may not support this module.

Highlights

  • Delivers up to 5 kV output for demanding high-voltage applications
  • Operates from a 12 V input with 140 mA to 600 mA draw
  • Precision 0–5 V control enables accurate voltage regulation
  • Metal enclosure provides zero EMI and effective heat sinking
  • Suited for X-ray, spectroscopy and semiconductor manufacturing equipment

Specifications

TypeLinear Power Supplies
Voltage5KV
Amps1mA

Questions about this item

What maintenance will the metal enclosure and electronic shutdown control require over time?

The metal enclosure provides heat sinking and zero EMI shielding with no moving parts to service. The electronic shutdown control is solid-state and needs no periodic adjustment.

Which limit appears first during continuous operation — the 1 mA output current ceiling or the 600 mA input current draw?

The 1 mA maximum output current is the hard ceiling; the module will not deliver more. The 140–600 mA input range simply reflects the supply current needed at 12 V ± 1 V to sustain that output.

How much heat and noise should I expect when the unit runs all day at 5 kV and 1 mA?

The metal enclosure acts as the heat sink with no fan, so operation is silent. Input power stays within 12 V at up to 600 mA, so the thermal load is modest and managed by the case itself.
