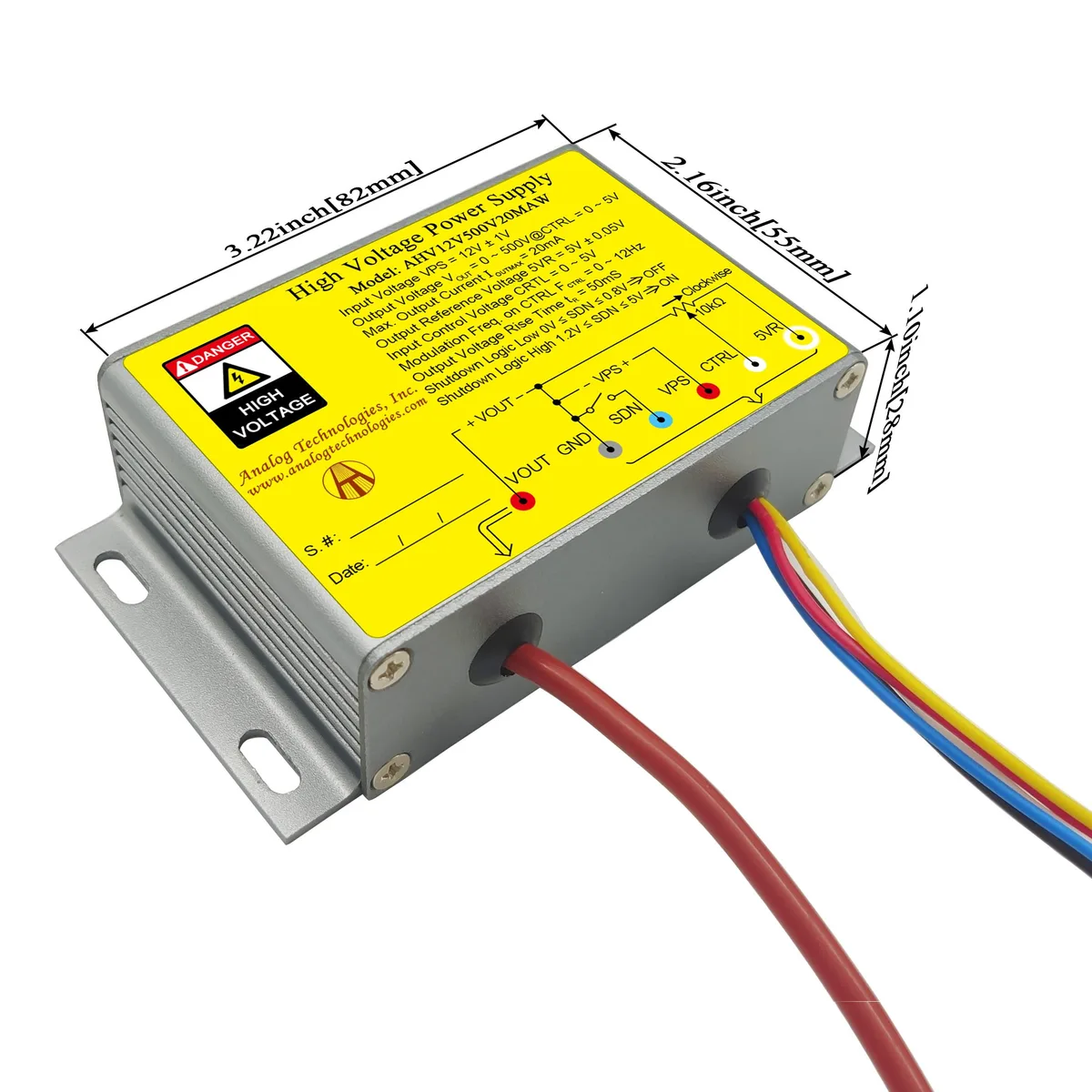

Metal-cased DC-DC high-voltage module with screw terminals

Analog Technologies, Inc.

Analog Technologies, Inc. AHV12V500V20MAW DC-DC HV Power Supply Module 12V 500V 20mA

SKU CH-627J-FXP5G

Converts 12 V input to a regulated 0–500 V output at up to 20 mA with electronic shutdown control for industrial high-voltage applications

  • TypeLinear Power Supplies
  • Voltage500V
  • Amps20mA
  • Converts 12 V input to adjustable 0–500 V output for high-voltage applications
  • Delivers up to 20 mA with precision 5 V reference for stable regulation

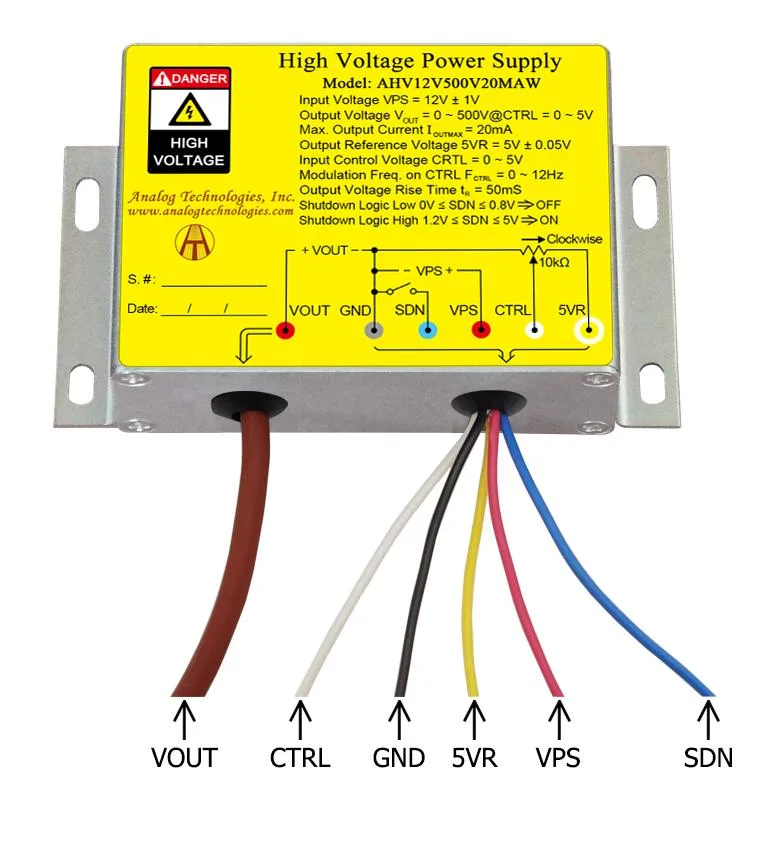

  • Accepts 0–5 V control voltage enabling electronic shutdown and fine adjustment
  • Metal enclosure provides zero EMI emission and effective heat sinking
  • Designed for X-ray, spectroscopy, semiconductor and particle-accelerator equipment

Industrial High-Voltage Power Module

This DC-DC converter steps a 12 V supply up to a regulated 0‑500 V rail with a maximum output of 20 mA. It is built for engineers and technicians who need a compact high‑voltage source for scientific or industrial equipment. The metal enclosure provides shielding and heat dissipation for stable operation in demanding environments.

Control Voltage Sets Output

The output voltage tracks a 0‑5 V control signal, so the module delivers 0‑500 V proportionally to the input command. A 5 V reference with ±0.05 V tolerance ensures repeatable regulation, while the electronic shutdown pin allows instant disabling without cycling the main supply.

Integration Requirements

The unit requires a 12 V source capable of supplying 250 mA to 1.2 A depending on load. Standardised connectors and a compact footprint let it fit into existing racks or custom chassis. It frees designers from building discrete high‑voltage stages for X‑ray, spectroscopy, electrophoresis or thin‑film deposition systems.

Highlights

  • Converts 12 V input to adjustable 0–500 V output for high-voltage applications
  • Delivers up to 20 mA with precision 5 V reference for stable regulation
  • Accepts 0–5 V control voltage enabling electronic shutdown and fine adjustment
  • Metal enclosure provides zero EMI emission and effective heat sinking
  • Designed for X-ray, spectroscopy, semiconductor and particle-accelerator equipment

Specifications

TypeLinear Power Supplies
Voltage500V
Amps20mA

Questions about this item

How does the 0–5 V control voltage translate into the 0–500 V output on this module?

The CTRL input accepts 0–5 V and the output follows linearly from 0 V to 500 V, so the full 5 V signal commands the maximum 500 V.

What input current should I budget from a 12 V source when the module delivers its maximum 20 mA at 500 V?

At full load the unit draws up to 1.2 A from the 12 V rail, while idle or light-load conditions sit near 250 mA.

What physical mounting provision does the metal enclosure of this AHV12V500V20MAW module provide?

The metal enclosure serves as both EMI shielding and a heat-sinking surface, allowing direct chassis mounting for thermal transfer.
