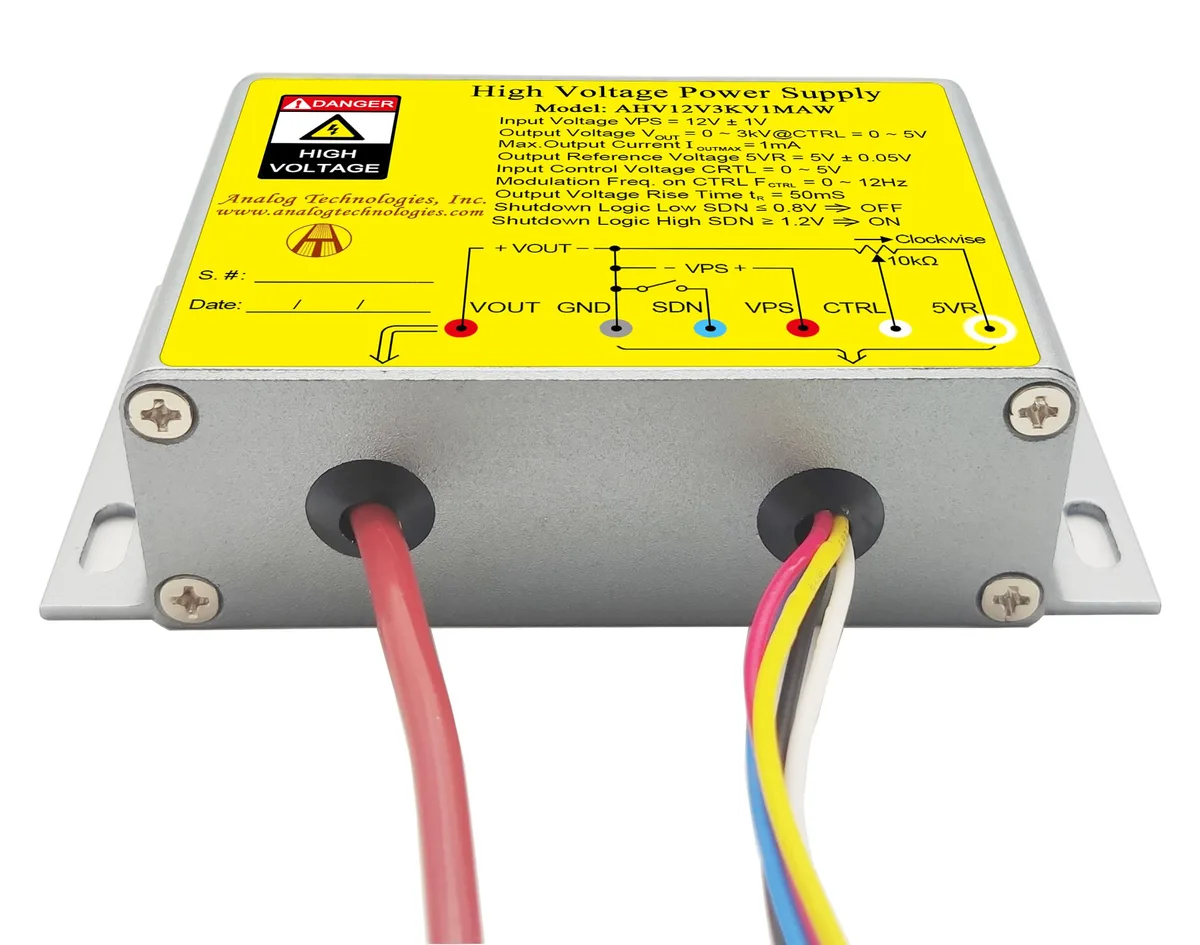

Compact metal-cased DC-DC high-voltage module with labelled terminals

Analog Technologies, Inc.

Analog Technologies, Inc. AHV12V3KV1MAW DC-DC HV Power Supply Module 12V 3kV 1mA

SKU CH-QYWD-F4F1X

Converts 12 V input to adjustable 0–3 kV output at up to 1 mA for X-ray, spectroscopy and semiconductor equipment

  • TypeLinear Power Supplies
  • Voltage3KV
  • Amps1mA
  • 12 V input enables compact integration into existing 12 V rails
  • Adjustable 0–3 kV output controlled by a 0–5 V signal
  • 1 mA maximum current suits low-power high-voltage applications
  • Metal enclosure provides zero EMI emissions and effective heat sinking
  • 5 V ± 0.05 V reference voltage ensures precise regulation

High-Voltage DC-DC Module for Industrial Systems

This Analog Technologies power module converts a 12 V input into a regulated 0–3 kV output at up to 1 mA. It is built for engineers and technicians who need precise high-voltage bias in compact equipment. The metal enclosure provides shielding and heat sinking for stable operation in demanding environments.

Suited for Precision High-Voltage Bias Applications

The unit fits X-ray systems, spectral analysers, semiconductor tools, particle accelerators and electrospinning setups that require low-current high voltage. It is not for buyers who need higher output current, adjustable input voltage ranges or AC mains powered supplies.

12 V Input with 0–5 V Control Sets Output Voltage

The module accepts 12 V ± 1 V and draws between 80 mA and 360 mA depending on load. A 0–5 V control signal scales the output from 0 to 3 kV, while an electronic shutdown pin allows instant disable. Reference voltage is held at 5 V ± 0.05 V for accurate regulation.

Highlights

  • 12 V input enables compact integration into existing 12 V rails
  • Adjustable 0–3 kV output controlled by a 0–5 V signal
  • 1 mA maximum current suits low-power high-voltage applications
  • Metal enclosure provides zero EMI emissions and effective heat sinking
  • 5 V ± 0.05 V reference voltage ensures precise regulation

Specifications

TypeLinear Power Supplies
Voltage3KV
Amps1mA

Questions about this item

Does the metal enclosure keep the AHV12V3KV1MAW cool during continuous 3 kV operation?

The metal enclosure provides good heat sinking and zero EMI, allowing stable output up to 3 kV at 1 mA without a fan.

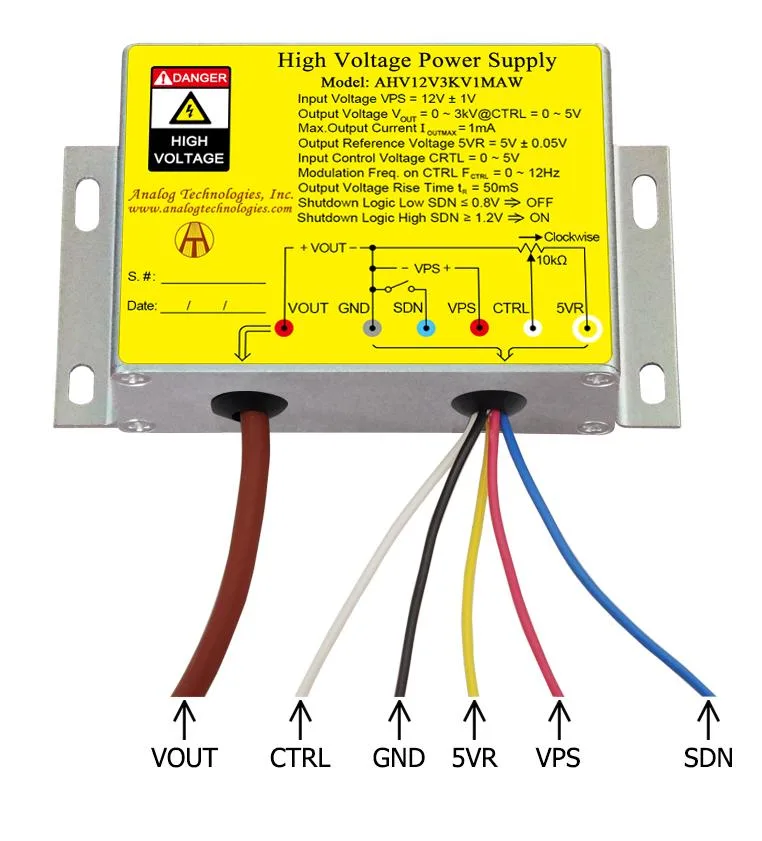

Which cables and control source must I supply to run the AHV12V3KV1MAW?

You need a 12 V ± 1 V source capable of 80–360 mA and a 0–5 V control signal for the output voltage.

Will the AHV12V3KV1MAW work with an existing 0–5 V analogue controller on older X-ray or sputtering gear?

Yes, the 0–5 V control input and 5 V ± 0.05 V reference match legacy analogue interfaces directly.
