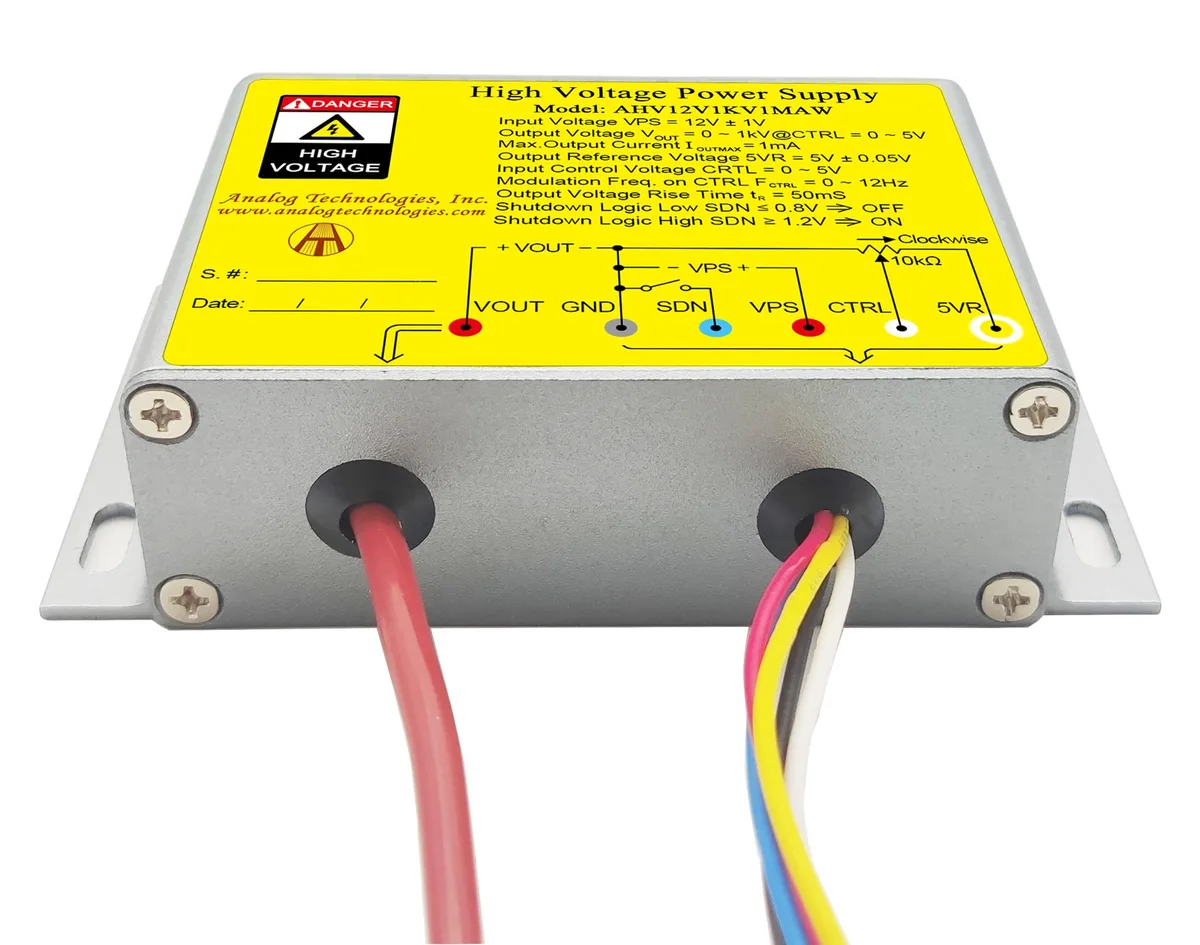

Compact metal-enclosed DC-DC high-voltage power module with standardized connectors

Analog Technologies, Inc.

Analog Technologies, Inc. AHV12V1KV1MAW DC-DC HV Power Supply Module 12V 1kV 1mA

SKU CH-4GKA-C3P9D

DC-DC high-voltage module converts a 12 V input into an adjustable 0–1 kV output at up to 1 mA for precision industrial applications

  • TypeLinear Power Supplies
  • Voltage2KV
  • Amps1mA
  • 12 V input simplifies low-voltage integration
  • 0–1 kV adjustable output covers diverse high-voltage needs
  • 1 mA maximum current suits precision low-power applications
  • Metal enclosure provides zero EMI and effective heat sinking
  • Electronic shutdown control enables safe remote power-off

Industrial High-Voltage DC-DC Module

The Analog Technologies AHV12V1KV1MAW converts a twelve volt input into a regulated zero to one kilovolt output at one milliampere. It serves engineers building X-ray, spectroscopy or semiconductor tools that need stable high voltage from a low-voltage rail. The linear topology and metal enclosure suppress EMI while providing reliable heat sinking.

Replaces Discrete High-Voltage Stacks

This module replaces custom transformer chains and discrete regulator boards that occupy more board space and radiate more noise. The jump is worth it when a project demands precise voltage control via a zero to five volt signal and electronic shutdown without redesigning the entire power stage. It also eliminates the trial-and-error of matching multiple off-the-shelf converters.

Fits Tight Chassis With Standard Pinout

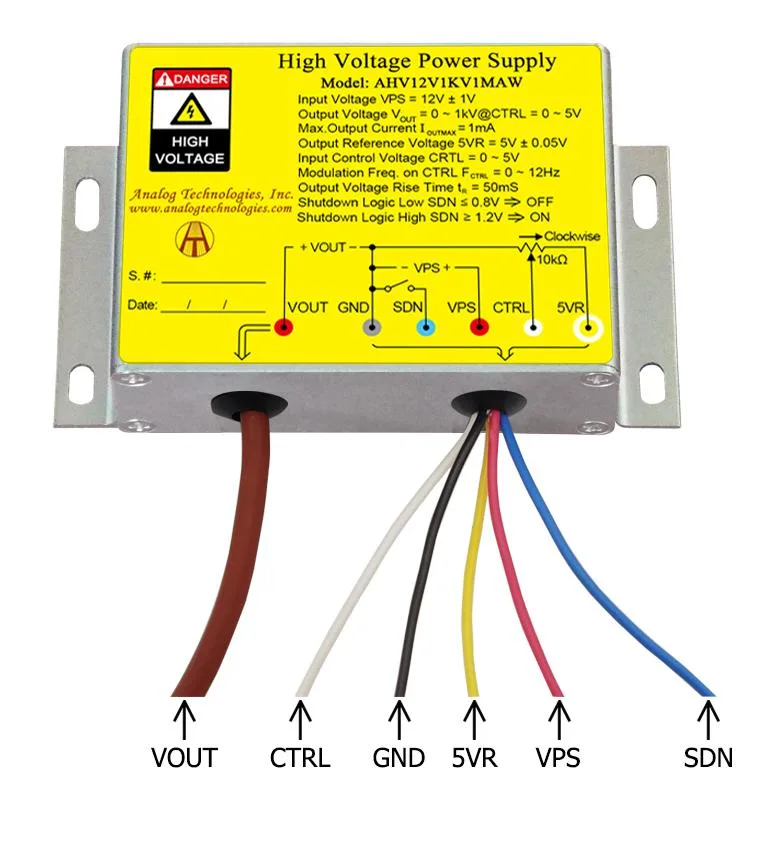

The compact metal case slides into existing industrial enclosures and connects through a standardised pin layout that matches common control interfaces. It draws twenty to one hundred twenty milliamps from the twelve volt bus and provides a five volt reference accurate to point zero five volts. This frees the designer from specifying separate EMI filters or external heatsinks for the high-voltage section.

Highlights

  • 12 V input simplifies low-voltage integration
  • 0–1 kV adjustable output covers diverse high-voltage needs
  • 1 mA maximum current suits precision low-power applications
  • Metal enclosure provides zero EMI and effective heat sinking
  • Electronic shutdown control enables safe remote power-off

Specifications

TypeLinear Power Supplies
Voltage2KV
Amps1mA

Questions about this item

What input voltage range does the AHV12V1KV1MAW module require?

The module operates from a 12 V supply with a tolerance of ±1 V.

How is the output voltage controlled on this module?

The output voltage is set by a 0 to 5 V control signal applied to the CTRL input, producing 0 to 1 kV proportionally.

Does the metal enclosure eliminate the need for an external heat sink?

The metal enclosure provides good heat sinking and zero EMIs, so no extra heat sink is required under normal operation.
