AEGIS BATTERY
AEGIS BATTERY ALF-012012A 12V 12Ah LiFePO4 battery
A 12V 12Ah LiFePO4 pack with UL-listed BMS protection, 144Wh energy and 3000-plus cycles in a 2.9 lb ABS case
- TypeBattery Pack & Charger Kit
- Size/Dimensions6
- Voltage12
- Amps12
- MaterialABS
- CordlessCordless
- LiFePO4 chemistry gives 3000+ charge cycles for long service life
- Built-in BMS protects against over-charge, over-discharge and short circuits
- 100 % depth of discharge delivers full 144 Wh usable energy
- ABS hard case weighs only 2.9 lbs for easy handling
- Includes charger kit and F2 terminal for plug-and-play installation
Drop-in 12 V LiFePO4 replacement

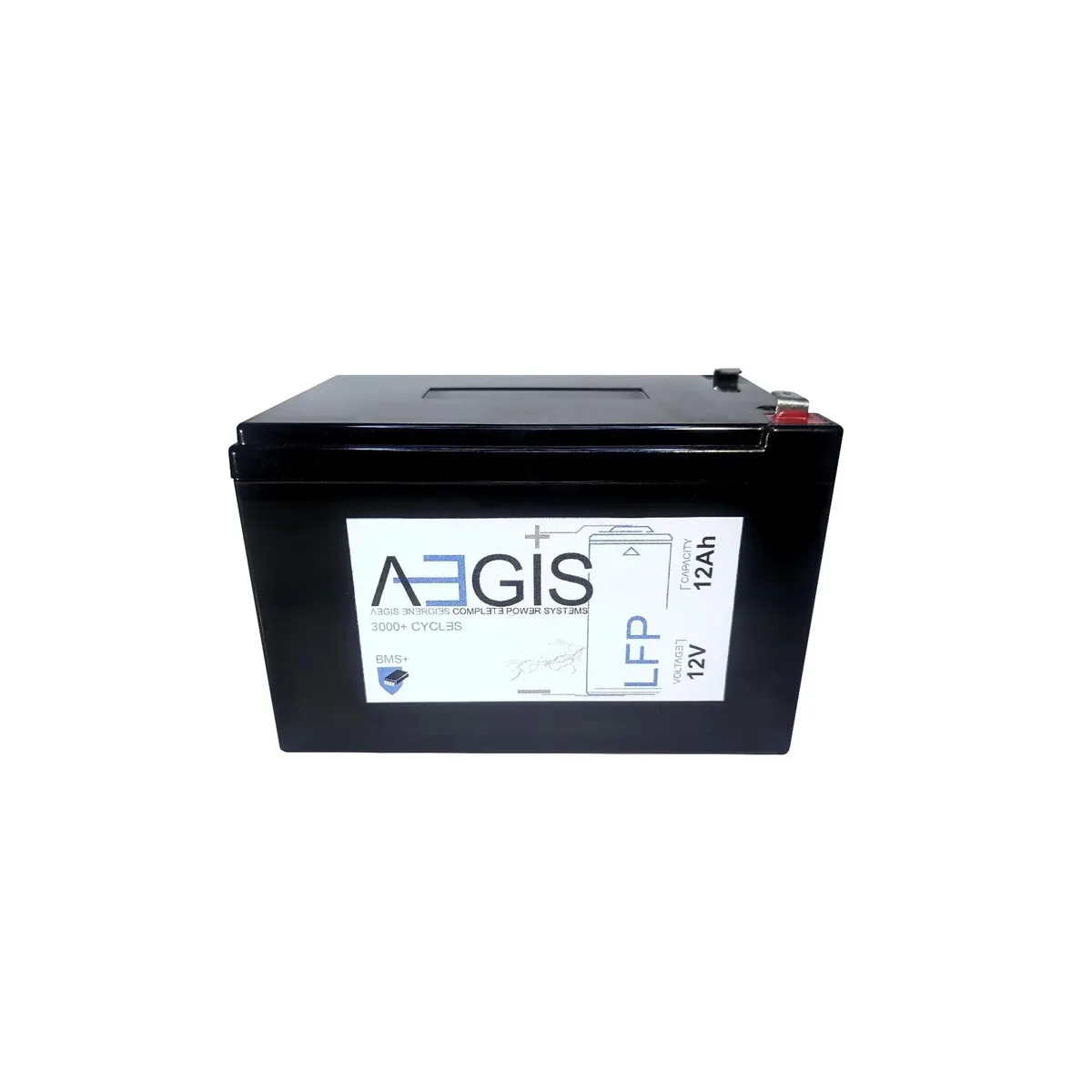

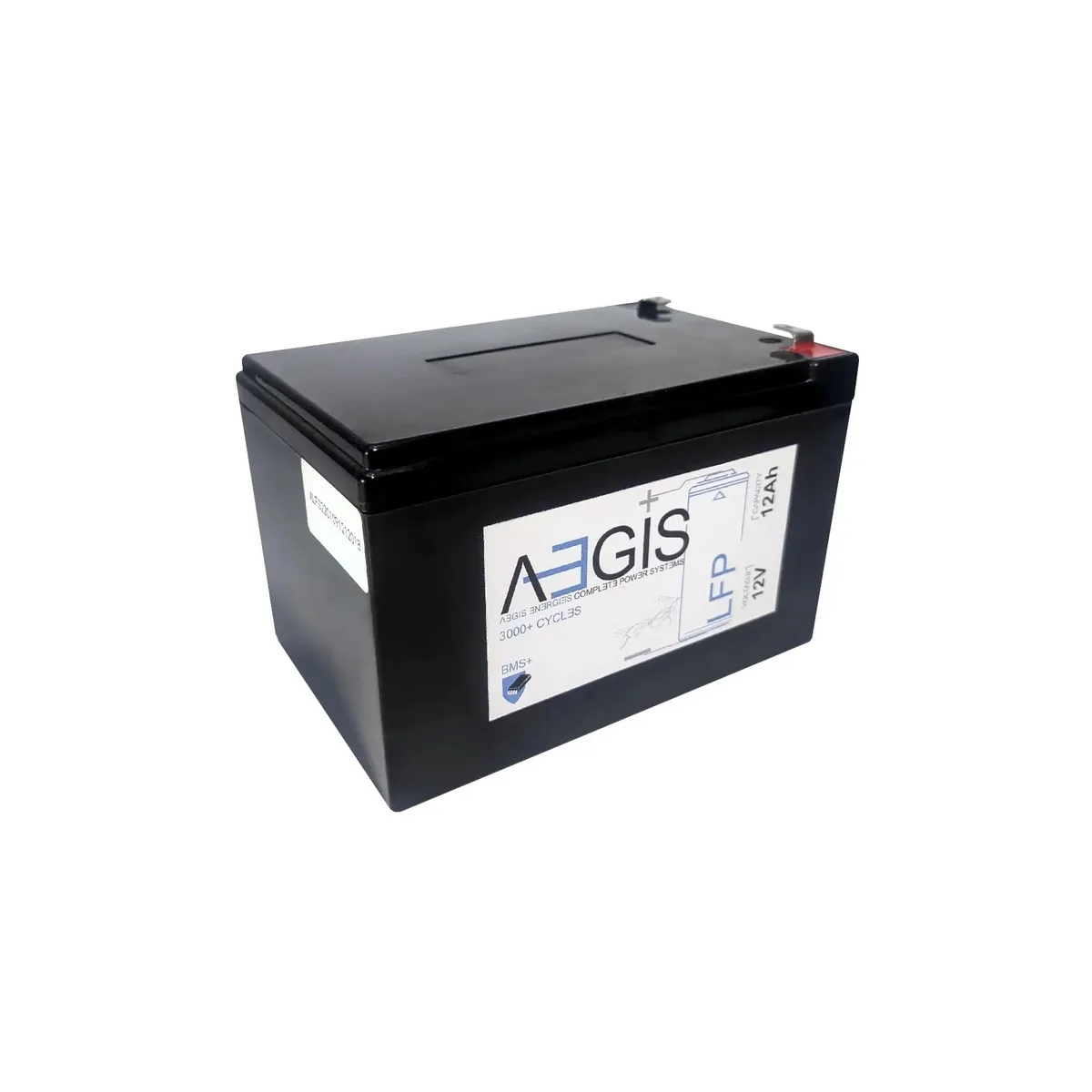

The AEGIS BATTERY ALF-012012A is a 12 V 12 Ah lithium iron phosphate pack built as a direct substitute for 12 V lead-acid units. It stores 144 Wh in an ABS hard case weighing 2.9 lbs (1.3 kg) and uses welded 18650 cylindrical cells. The kit includes a pre-assembled F2 terminal connector for immediate installation.
Thermal stability and low self-discharge
LiFePO4 chemistry tolerates higher thermal thresholds than conventional lithium-ion types, so the pack runs cool during normal charge and discharge. The integrated Battery Management System guards against over-charge, over-discharge, short-circuits and thermal overload without active cooling. A full charge from empty takes roughly four hours.
Three-year parts coverage and plug-and-play terminal
The bundled F2 terminal eliminates the need for separate cables or adapters, letting installers connect the battery straight to existing leads. UL listing confirms the pack meets recognised safety standards for commercial and residential use. A three-year parts period backs the 3000-plus cycle rating and the 100 % depth-of-discharge capability.
Highlights
- LiFePO4 chemistry gives 3000+ charge cycles for long service life
- Built-in BMS protects against over-charge, over-discharge and short circuits
- 100 % depth of discharge delivers full 144 Wh usable energy
- ABS hard case weighs only 2.9 lbs for easy handling
- Includes charger kit and F2 terminal for plug-and-play installation
Specifications
| Type | Battery Pack & Charger Kit |
|---|---|
| Brand | AEGIS BATTERY |
| Model | ALF-012012A |
| Size/Dimensions | 6 |
| Voltage | 12 |
| Amps | 12 |
| Material | ABS |
| Cordless | Cordless |
| Color/Finish | Black |
| Item Count | 1 pack |
| Energy Star Qualified | Not Energy Star Qualified |
| Selling Unit | Kit |
| Features | Eco-Friendly |
| Battery Type | Lithium Ion |
| Number of Batteries | 1 |
| Standards/Certifications | UL Listed |
| Time to Charge | 4 Hours |
| Commercial/Residential | Commercial |
| Parts | 3 Years |
| Part Number | ALF-012012A |
Questions about this item
How do I install the F2 terminal connectors on the ALF-012012A, and what is the common mistake?
Connect the red lead to the positive F2 terminal and the black lead to the negative terminal; the common error is reversing polarity which can damage the built-in BMS.
What maintenance or replacement will the 18650 cell pack need after extended use?
The sealed ABS case requires no watering or terminal cleaning; after roughly 3000 cycles the internal 18650 cells will hold less charge, so the whole 12V 12Ah pack is replaced as one unit.
At what point does the BMS cut output during a continuous high-draw load?
The internal Battery Management System interrupts discharge if the 144 Wh pack exceeds its thermal or current thresholds, protecting the LiFePO4 chemistry from overload.
