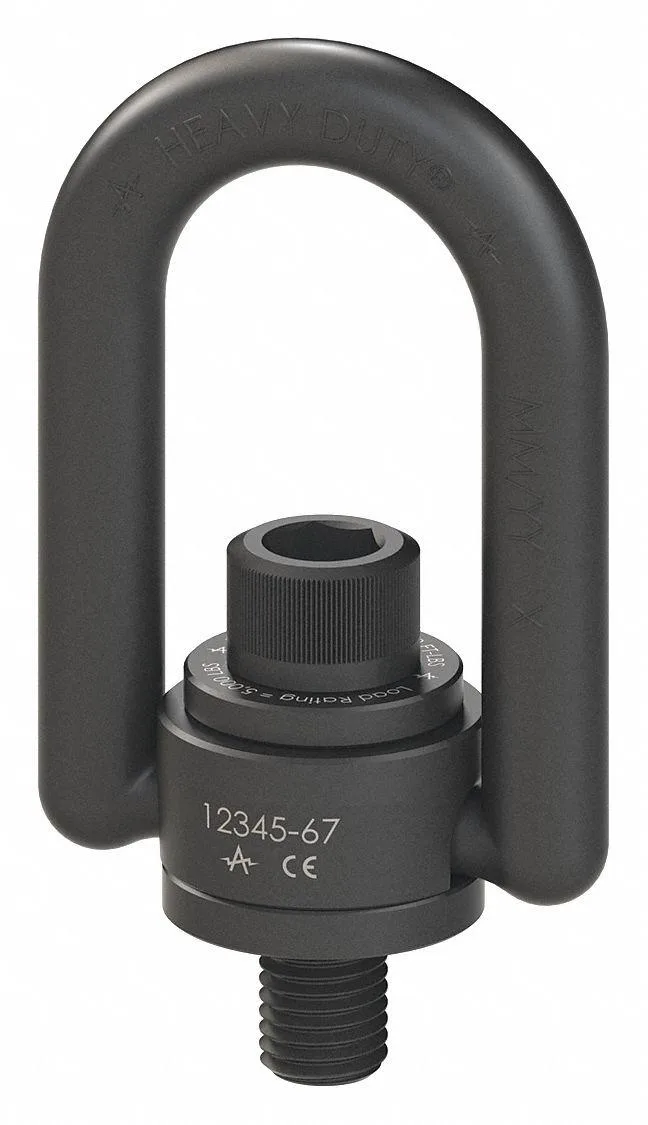

Adb Hoist Rings 33515 Hoist Ring 2500 lb WLL

Heavy-Duty Lifting Ring 2500 lb WLL

This forged alloy-steel hoist ring handles lifting and pulling tasks with a 2500 lb working load limit. It suits rigging professionals, maintenance crews and equipment installers who need a reliable anchor point rated for overhead movement. The 33515 model pivots 180 degrees and swivels 360 degrees to follow load direction without binding.

Screw-On Mount with Removable Bolt

The ring mounts on a 1/2 in.-13 thread and requires 28 ft-lb minimum installation torque for secure engagement. One inch of usable thread length allows firm seating in tapped holes or through-bolted plates. A removable bolt is included so the ring can be detached when the anchor point is not needed, freeing the mounting location for other hardware.

Pivot and Swivel Under Continuous Load

The bail measures 2-1/2 in. inside length by 1-7/8 in. inside width with 3/4 in. thickness to resist deformation during sustained lifts. Black-oxide finish protects the alloy steel from corrosion in indoor and covered outdoor environments. Full 180-degree pivot and 360-degree swivel maintain alignment through repeated cycles without the side-loading stress that damages fixed eye bolts.
