ABS
ABS KR-TP9965WX-AR5090 workstation Threadripper PRO 9965WX 24-core RTX 5090 32GB 128GB DDR5 6TB NVMe 2000W
AI workstation with 24-core Threadripper PRO 9965WX, RTX 5090 32GB GDDR7, 128GB DDR5 ECC, 6TB PCIe 5.0 NVMe, dual 10GbE, 2000W 80 PLUS Platinum, Ubuntu, assembled in USA, TAA compliant
- WorkloadAI Workstation
- TypeTower
- AI FeaturesAI Development: Accelerate AI development and inference work
- CPU TypeAMD Ryzen Threadripper PRO 9965WX
- CPU SocketSocket sTR5
- Number of CPU Cores24-Core Processor
- 24-core Threadripper PRO 9965WX CPU accelerates multi-threaded AI workloads
- RTX 5090 with 32 GB GDDR7 memory powers large-model inference
- 128 GB DDR5 ECC registered RAM scales to 2 TB capacity
- 6 TB PCIe 5.0 NVMe storage delivers high-speed data access
- 2000 W 80 PLUS Platinum PSU sustains full-system load
AI Workstation for Development

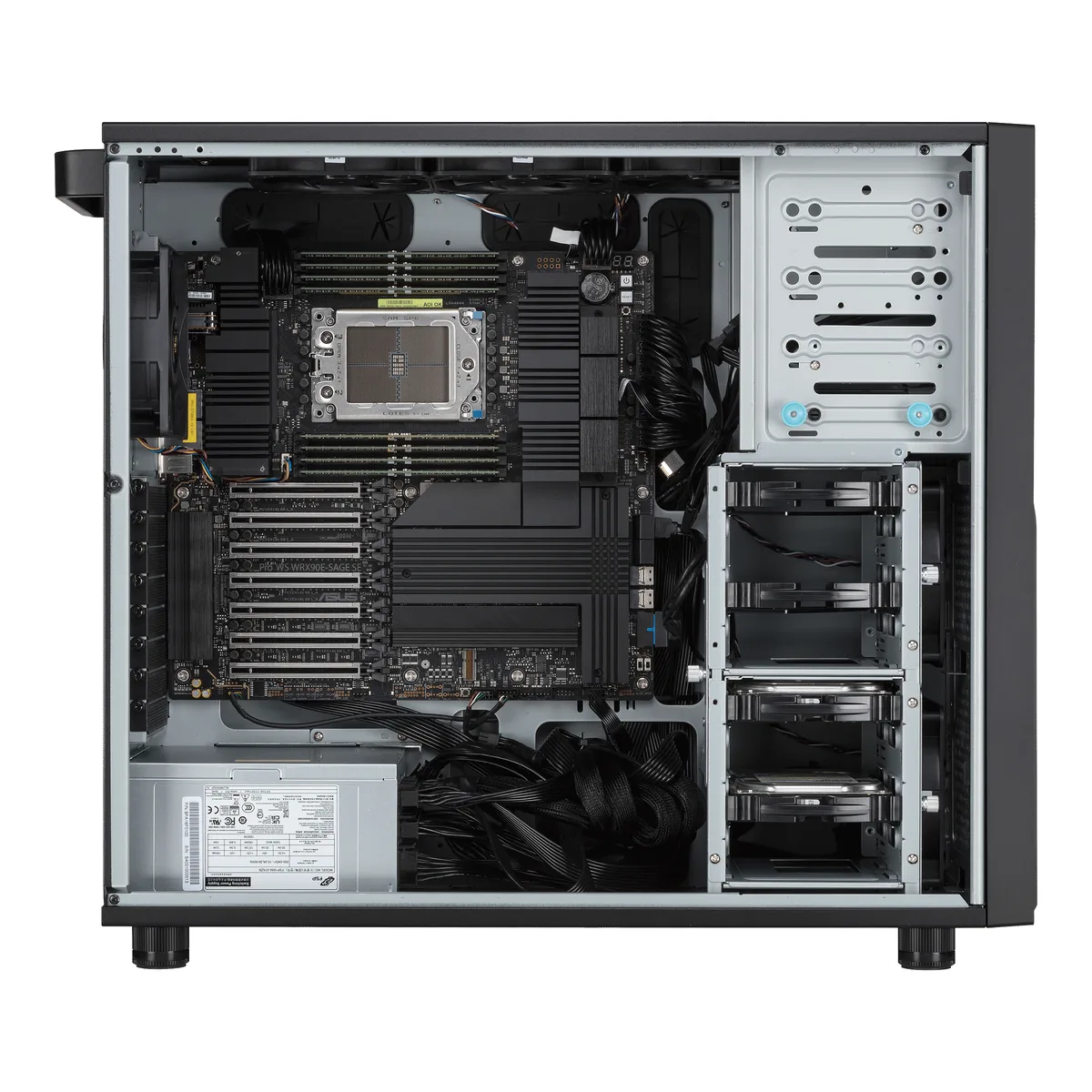

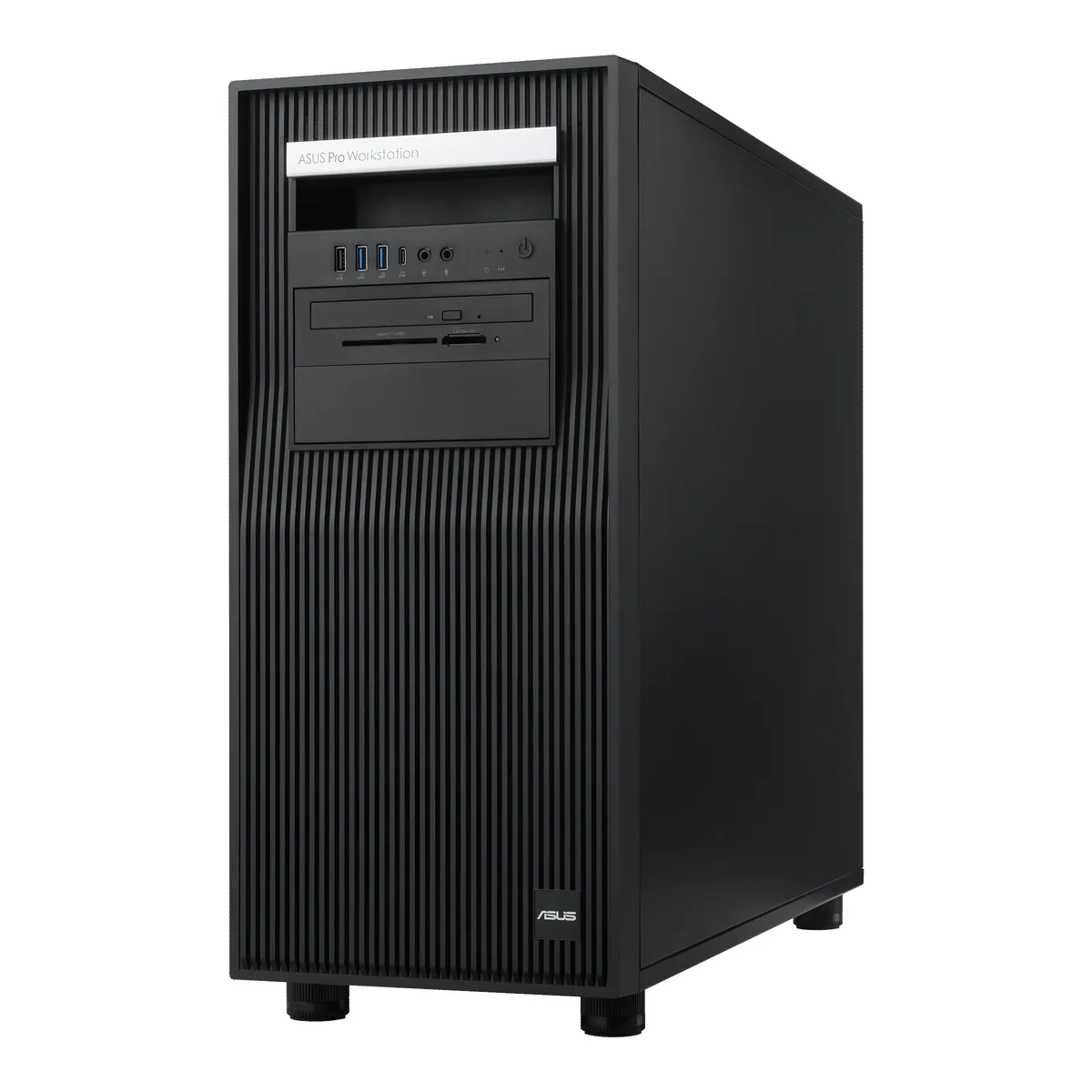

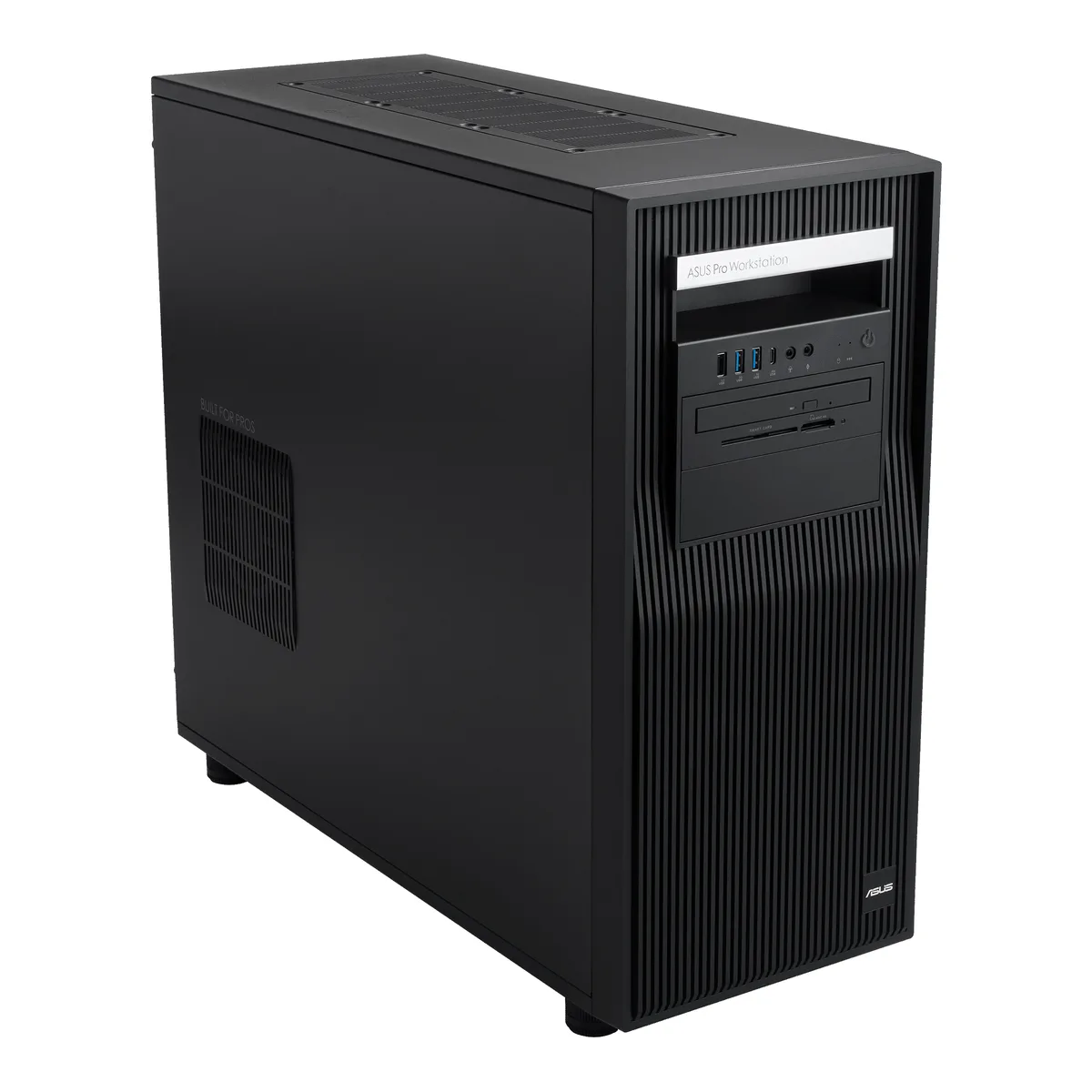

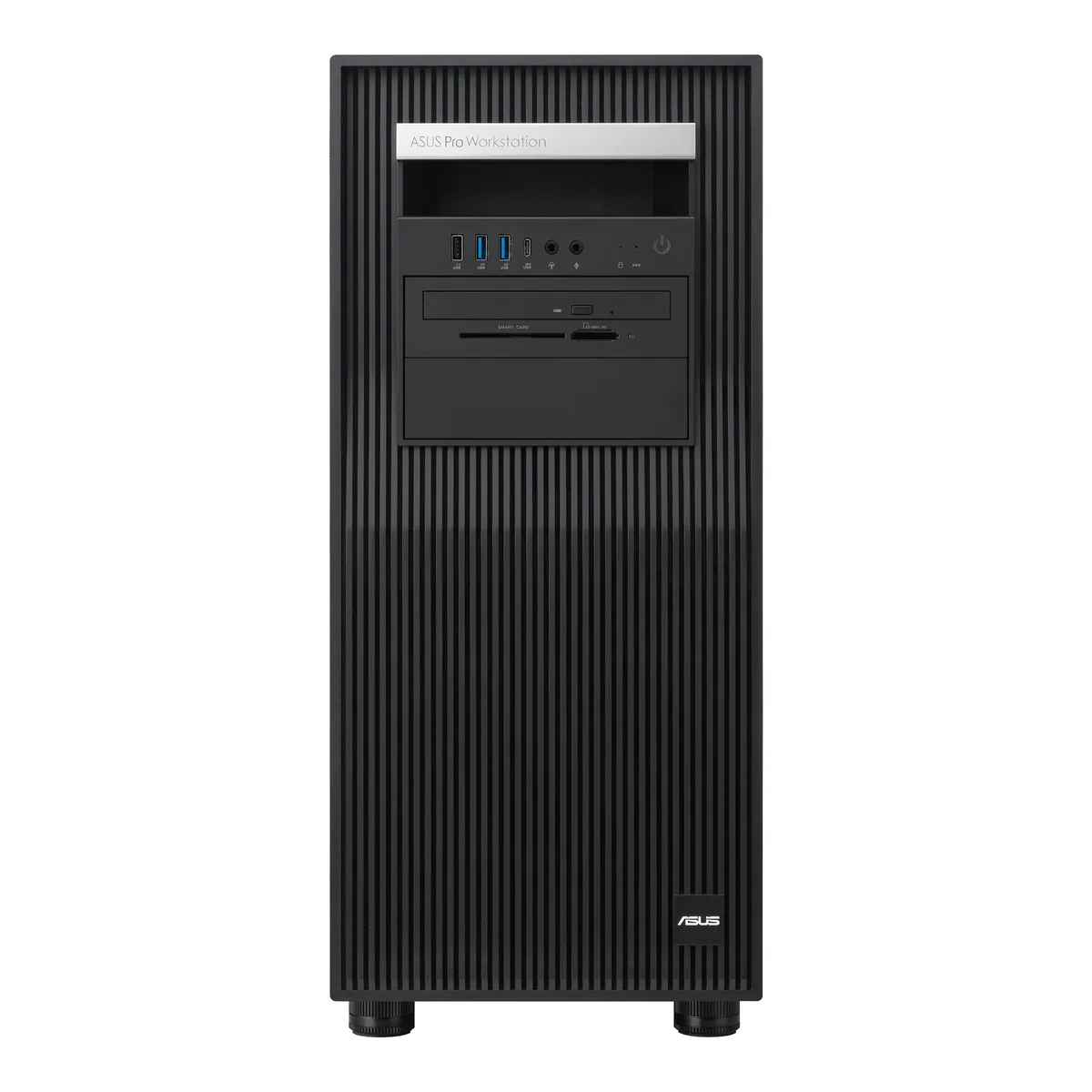

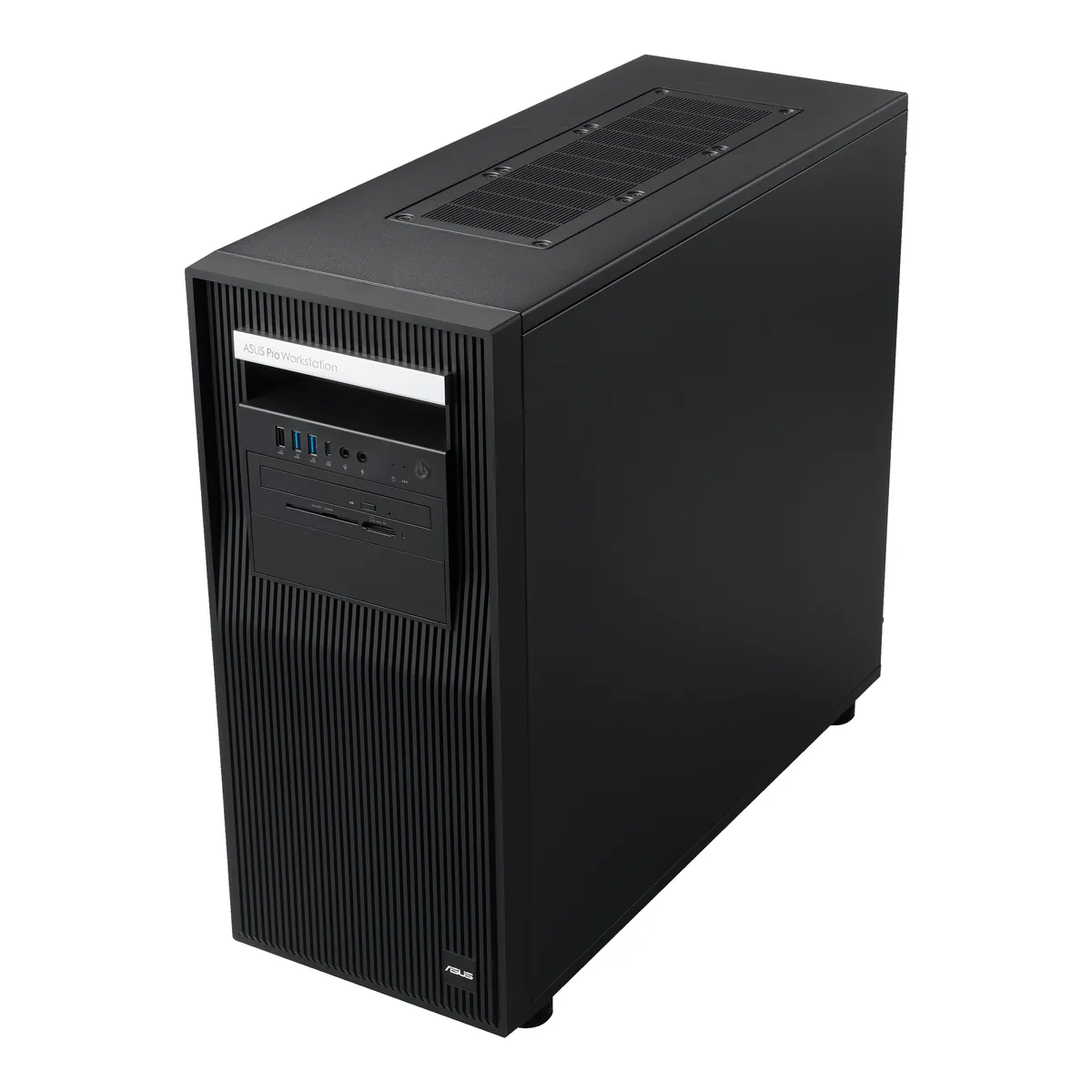

The ABS Kalyron Ruby is a liquid-cooled tower workstation built around a 24-core AMD Ryzen Threadripper PRO 9965WX and an ASUS TUF Gaming GeForce RTX 5090 with 32 GB GDDR7 memory. It ships with 128 GB DDR5 ECC registered memory and 6 TB of PCIe 5.0 NVMe storage across two drives. Ubuntu comes pre-installed on a system assembled in the USA and TAA compliant.
Sustained Load Behaviour
Liquid cooling on the CPU allows the 24-core Threadripper PRO to maintain high frequencies during extended AI training or inference runs without thermal throttling. The 2000 W 80 PLUS Platinum power supply delivers stable current to the GPU and all expansion slots under continuous maximum draw. Seven PCIe 5.0 x16 slots provide bandwidth headroom for additional accelerators or high-speed networking cards.
32 GB GPU VRAM Decides Fit
The single specification that determines suitability is the 32 GB GDDR7 frame buffer on the RTX 5090, which sets the maximum model size that fits in GPU memory for local inference or training. Buyers who need larger models in VRAM cannot meet that need with this configuration. The eight DIMM slots support up to 2 TB of system memory for data sets that exceed GPU capacity.
Highlights
- 24-core Threadripper PRO 9965WX CPU accelerates multi-threaded AI workloads
- RTX 5090 with 32 GB GDDR7 memory powers large-model inference
- 128 GB DDR5 ECC registered RAM scales to 2 TB capacity
- 6 TB PCIe 5.0 NVMe storage delivers high-speed data access
- 2000 W 80 PLUS Platinum PSU sustains full-system load
Specifications
| Brand | ABS |
|---|---|
| Series | ABS/Asus Kalyron Ruby |
| Model | KR-TP9965WX-AR5090 |
| Part Number | KR-TP9965WX-AR5090 |
| Workload | AI Workstation |
| Type | Tower |
| AI Features | AI Development: Accelerate AI development and inference workloads, and build agentic AI applications. Data Science: Accelerate your data pipelines. HPC: Accelerate scientific breakthroughs with enhanced accuracy. AI-Driven Rendering and Graphics: Deliver stunningly realistic designs and simulations with speed and precision. Video Content and Streaming: Boost performance for live media and video pipelines. Game Development: Drive new possibilities for game development with AI. |
| CPU Type | AMD Ryzen Threadripper PRO 9965WX |
| CPU Socket | Socket sTR5 |
| Number of CPU Cores | 24-Core Processor |
| # of Processors Installed | 1 |
| Chipset | AMD WRX90 Chipset |
| Installed Memory Size | 128GB |
| Memory Type | DDR5 |
| Max Memory Capacity | 2TB |
| Number of Memory Slots | 8 |
| HDD Interface | SATA/SAS |
| SSD (Installed) | OS SSD: 2TB M.2 Data SSD: 4TB SSD |
| Servers_Graphic Installed | ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 |
| GPU Type | GeForce RTX 5090 |
| Video Memory | 32GB GDDR7 |
| LAN Ports | Intel Dual 10Gb Ethernet |
| Expansion Slots | Location-1: PCIe x16 slot (Gen5 x16 link) Location-2: PCIe x16 slot (Gen5 x16 link) Location-3: PCIe x16 slot (Gen5 x16 link) Location-4: PCIe x16 slots (Gen5 x16 link) Location-5: PCIe x16 slots (Gen5 x16 link) Location-6: PCIe x16 slots (Gen5 x8 link) Location-7: PCIe x16 slots (Gen5 x16 link) |
| Expansion Bays | 4 x 3.5" Internal bays |
| Operating System | Ubuntu |
| Power Characteristics | Single 2000W ATX 80 PLUS Platinum power supply |
| Features | ASUS ExpertCenter Pro ET900A X9 |
| Shipping weight | 36.95 kg |
| Package size | 787 × 635 × 635 mm |
Questions about this item
How much power does the 2000W 80 PLUS Platinum PSU draw when the Threadripper PRO 9965WX and RTX 5090 run sustained AI workloads?
The 2000W Platinum unit is sized for the 24-core Threadripper PRO 9965WX and ASUS TUF RTX 5090 32GB GDDR7 combination under continuous load, with liquid cooling on the CPU to manage thermals.
Which display cables and monitor inputs are needed to use the ASUS TUF RTX 5090 32GB GDDR7?
The RTX 5090 provides standard DisplayPort and HDMI outputs; you must supply a compatible cable and a monitor that accepts one of those interfaces.
Can I keep my existing SATA or SAS drives and add them to the 6TB of installed PCIe 5.0 NVMe storage?
Yes — the platform includes SATA and SAS interfaces alongside the 2TB OS and 4TB data NVMe drives, so older drives can be installed in the available bays.
