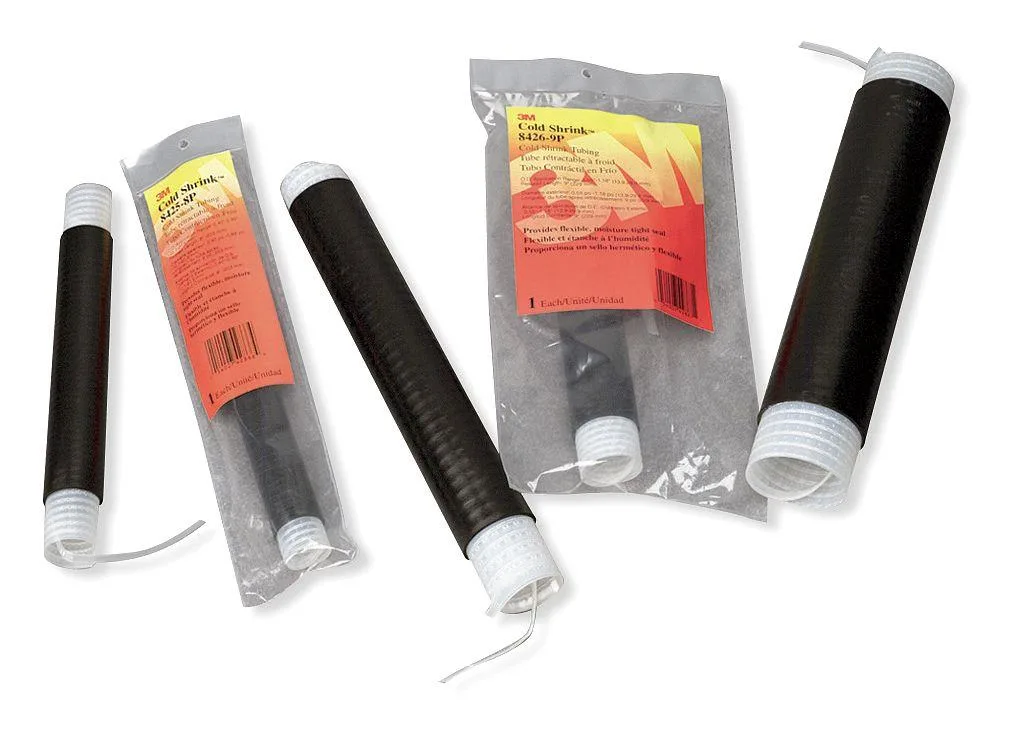

Black EPDM rubber cold shrink tube, 1.18 inch diameter, 9 inch length

3M

3M 8426-9 Cold Shrink Tube 1.18 in

SKU CH-8X6Q-1QTVN

Medium-wall EPDM rubber cold-shrink tube covers 2/0 AWG to 250 MCM wire, shrinking from 1.18 in to .55 in over 9 in length, rated to 1,000 V and 194 °F

  • Cold shrink installs without heat tools
  • Fits 2/0 AWG to 250 MCM conductors
  • Shrinks from 1.18 in to .55 in I.D.
  • EPDM rubber resists UV and -40 to 194 °F
  • Rated to 1,000 V dielectric strength

What this tube fits

3M 8426-9 is a cold-shrink EPDM rubber tube made for electricians who need to insulate or splice cables sized 2/0 AWG to 250 MCM. It arrives expanded and shrinks in place without a heat tool, making it practical for field work where open flame is not allowed.

Shrink dimensions decide fit

The tube ships with a 1.18 in inner diameter and shrinks down to .55 in, so it only works when the cable or connector falls inside that range. If the conductor is larger than 1.18 in or smaller than .55 in after shrinking, this part will not seal correctly.

Push-on install, no heat needed

Installation is a simple push-on action: remove the core and the tube contracts around the joint. Because it is not flame-retardant and has no adhesive lining, it must not be used where fire rating or a bonded seal are required.

Highlights

  • Cold shrink installs without heat tools
  • Fits 2/0 AWG to 250 MCM conductors
  • Shrinks from 1.18 in to .55 in I.D.
  • EPDM rubber resists UV and -40 to 194 °F
  • Rated to 1,000 V dielectric strength

Specifications

Brand3M

Questions about this item

How much does the 1.18 in inside diameter shrink down to on the cable?

The tube shrinks from 1.18 in to 0.55 in inside diameter, sealing cables from 2/0 AWG up to 250 MCM.

What voltage and temperature limits does the EPDM rubber handle in service?

Rated for 1,000 V dielectric strength and continuous use from -40 to 194 degrees F.

What length of coverage does the 9 in piece give after it shrinks?

The tube stays 9 in long after shrinking, providing 9 in of medium-wall insulation on the joint.
