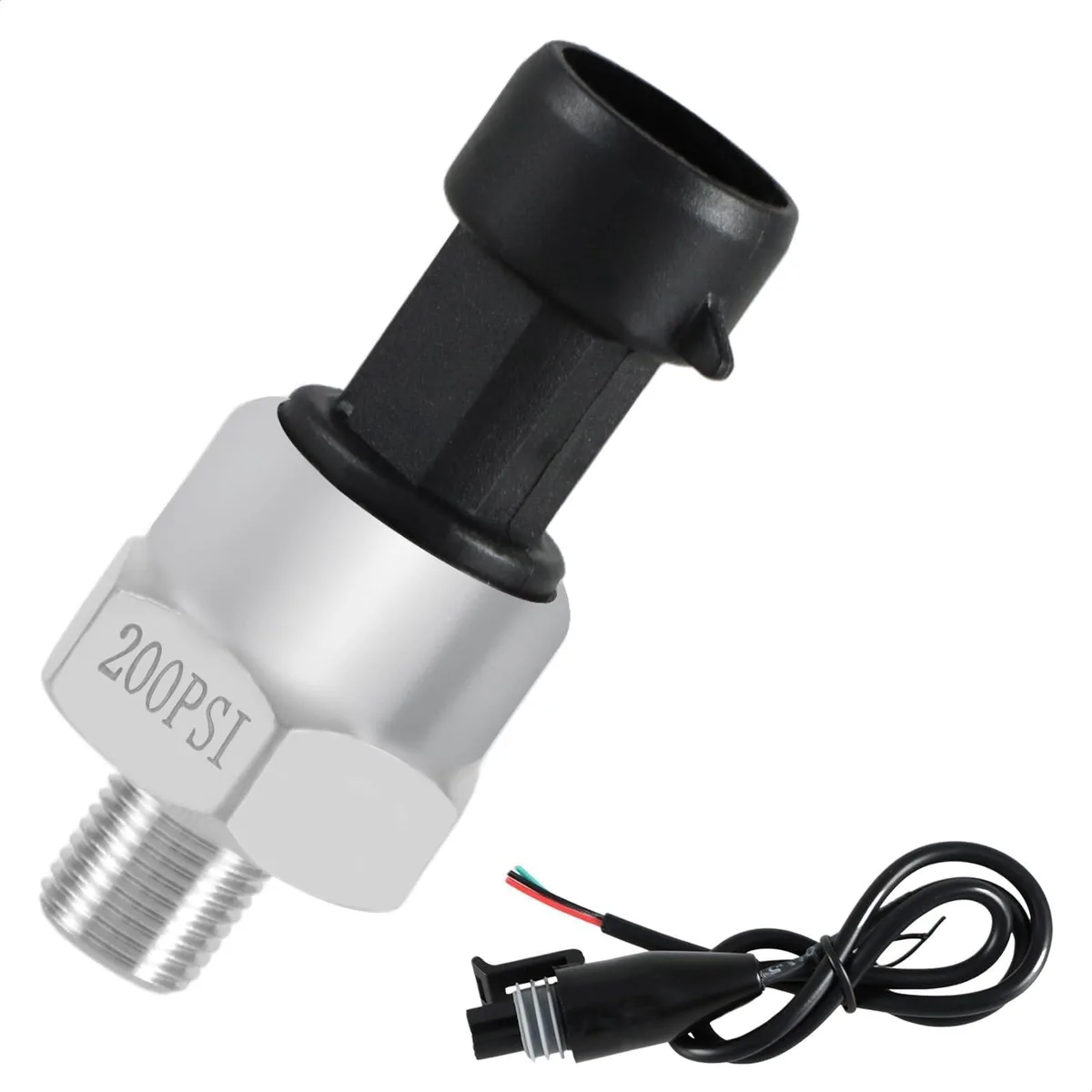

200 PSI Pressure Transducer Gauge 1/8" NPT 316 SS
A 200 PSI pressure transducer with 1/8" NPT thread, 316 stainless steel housing, and 0.5-4.5V output for oil, fuel, water, and air monitoring
- Precise monitoring with ±1.0% FS accuracy across 0-200 PSI range
- Reliable 0.5V-4.5V linear output powered by 5V DC supply
- Durable 316 stainless steel construction resists corrosion in harsh environments
- Standard 1/8"-27 NPT thread fits common oil, fuel, water and air systems
- Compact lightweight design allows quick installation in tanks and pressure lines
200 PSI Pressure Transducer

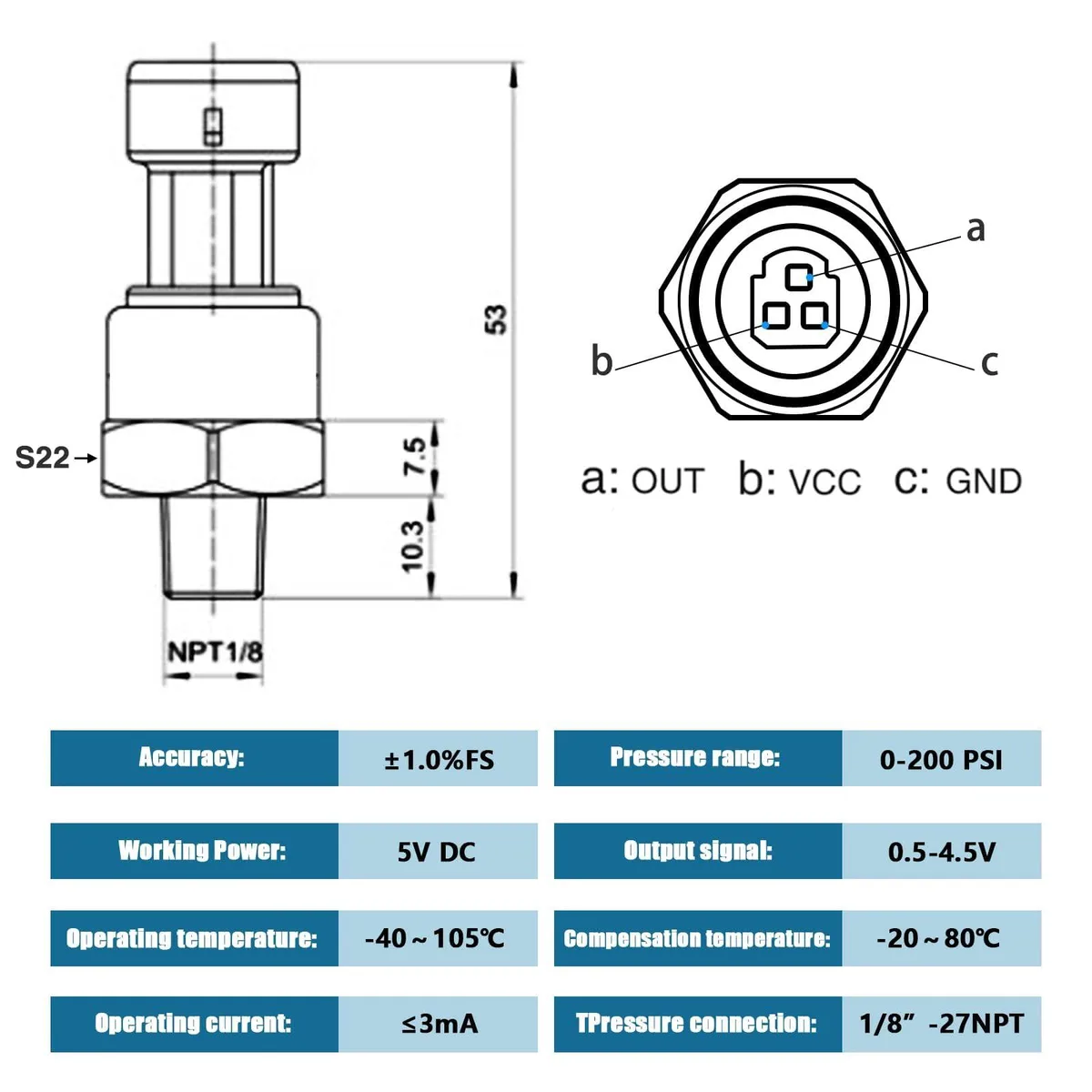

This 200 PSI pressure transducer provides a 0.5V to 4.5V linear voltage output from a 5V DC supply. It uses a 1/8"-27 NPT thread and a 316 stainless steel housing with ceramic pressure plates. The sensor measures oil, fuel, water, air and gas pressure in tanks and similar systems. Accuracy is rated at ±1.0% full scale across the full temperature range.
Upgrade From Lower Range Sensors
The 200 PSI range fills the gap between 100 PSI and 300 PSI models that share the same 0.5V to 4.5V output, 5V DC power and 1/8"-27 NPT thread. Switching is worth it when the application pressure sits above 100 PSI but does not need the 300, 500, 1000 or 1600 PSI variants. The common electrical and mechanical interface makes the change straightforward.
Builders Needing 316 Stainless Steel
This unit suits installers who require 316 stainless steel construction for chemical compatibility or durability. It is not for systems that demand a 304 stainless steel housing, a different thread standard, a current-loop output or a pressure range outside 0 to 200 PSI. Buyers needing those specifications should select a different model.
Highlights
- Precise monitoring with ±1.0% FS accuracy across 0-200 PSI range
- Reliable 0.5V-4.5V linear output powered by 5V DC supply
- Durable 316 stainless steel construction resists corrosion in harsh environments
- Standard 1/8"-27 NPT thread fits common oil, fuel, water and air systems
- Compact lightweight design allows quick installation in tanks and pressure lines
Specifications
No published specifications for this item yet.
Questions about this item
What thread size does the 1/8" NPT pressure transducer need for mounting?
The sensor uses a 1/8" - 27 NPT thread, so the port must match that exact pitch and diameter for a proper seal.
How do I wire the 0.5V-4.5V output transducer to a 5V DC supply, and what mistake should I avoid?
Connect the harness to a stable 5V DC source; the sensor draws about 3mA. The common error is reversing the signal and ground leads, which gives a flat reading.
When should I replace the 316 stainless steel transducer used for oil or fuel pressure?
Replace it if the output drifts beyond the ±1.0% FS accuracy spec, if the ceramic plate shows corrosion, or after any over-pressure event past 200 PSI.
