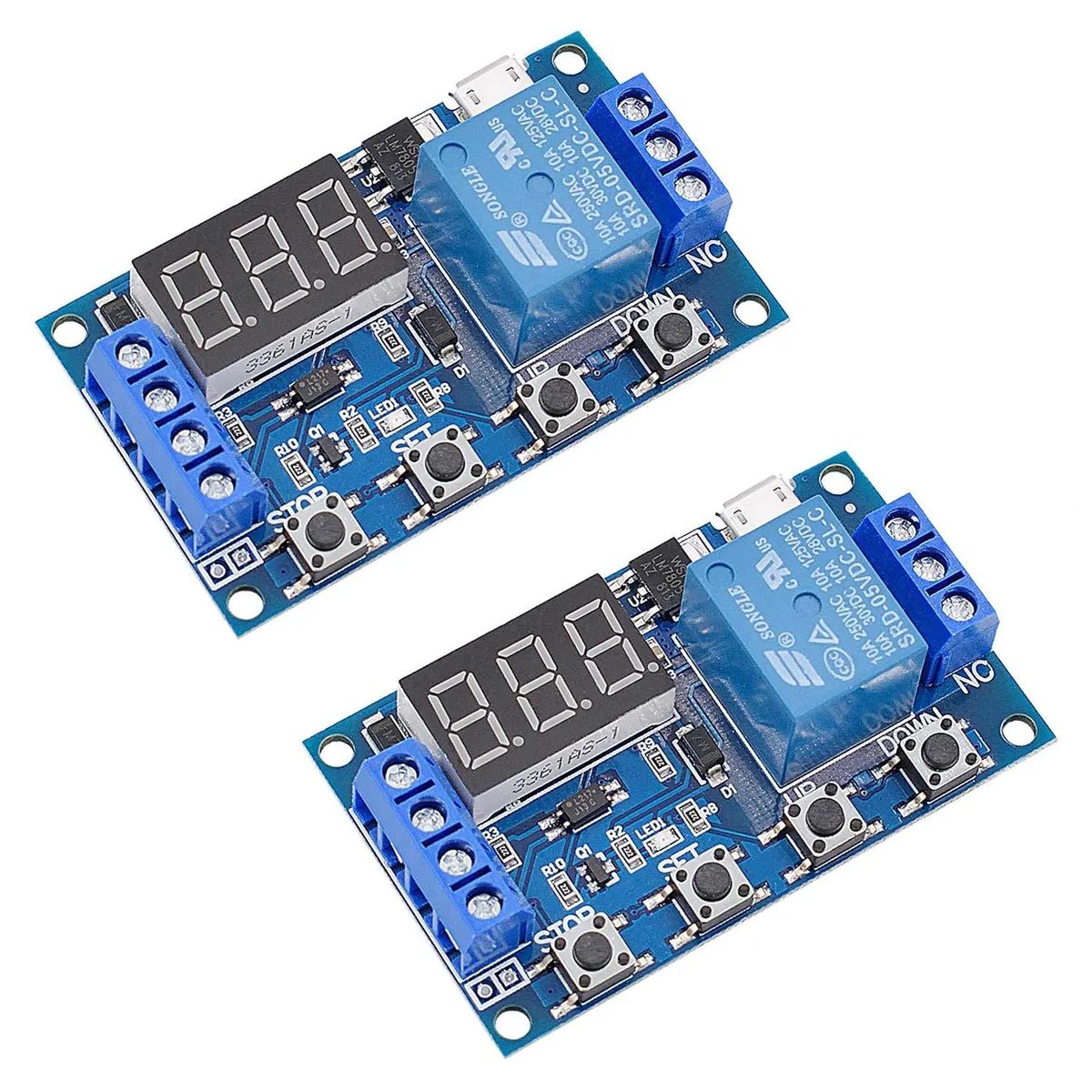

Two small green circuit boards with LED displays and relay modules side by side

2 Pack DC 6-30V Relay Programmable Delay Relay Module Cycle electrical timer switch

SKU CH-BG7Q-VYMKB

A two-pack of programmable DC 6-30V timer relay modules with LED display, adjustable timing from .1 seconds to 999 minutes and 10A switching capacity

  • Multifunction timer relay with programmable delay modes

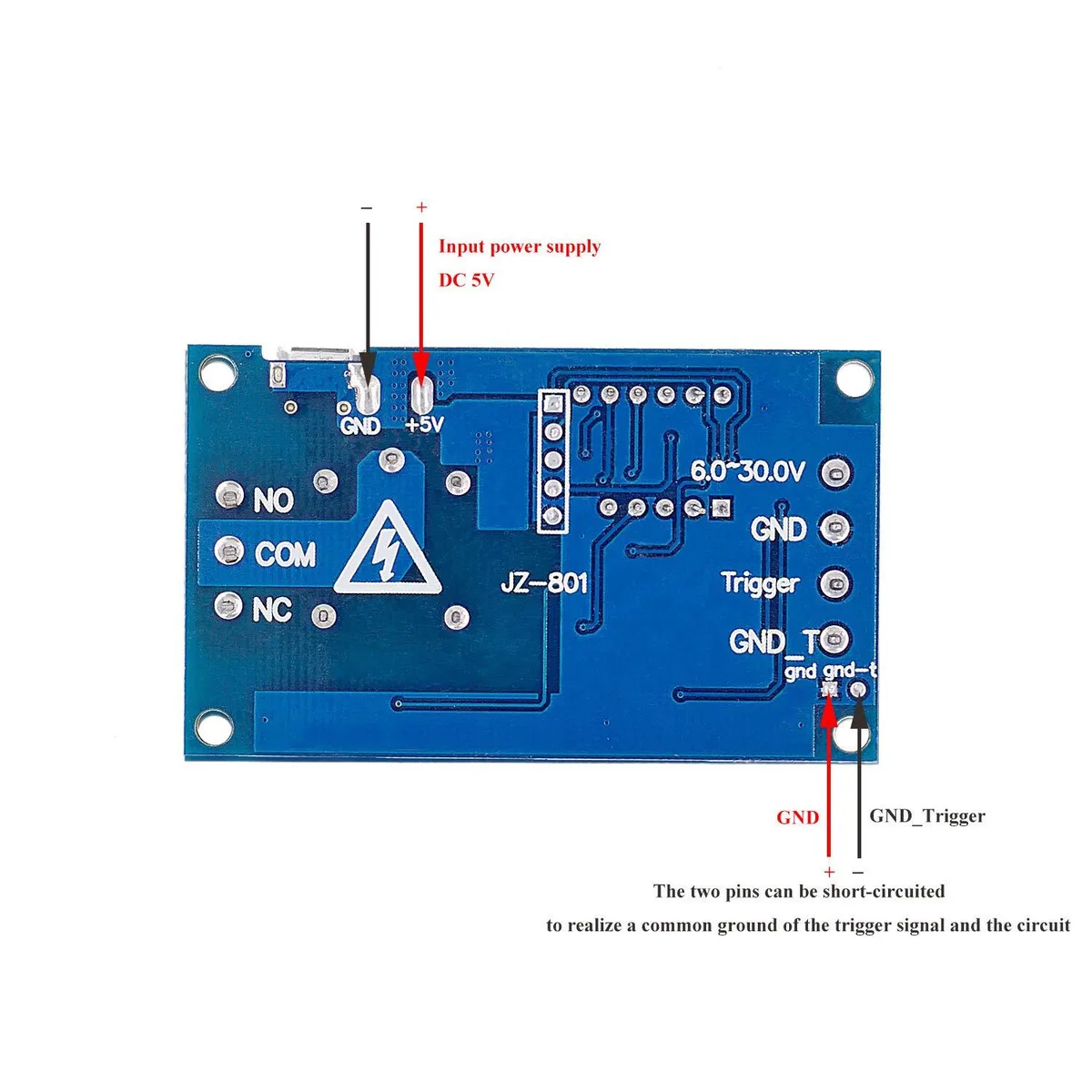

  • DC 6V to 30V operating voltage with micro USB 5V supply
  • Reverse polarity protection via built-in diode
  • Sleep mode turns off display after 5 minutes
  • Adjustable timing range from .1 seconds to 999 minutes

Programmable Delay Relay Module

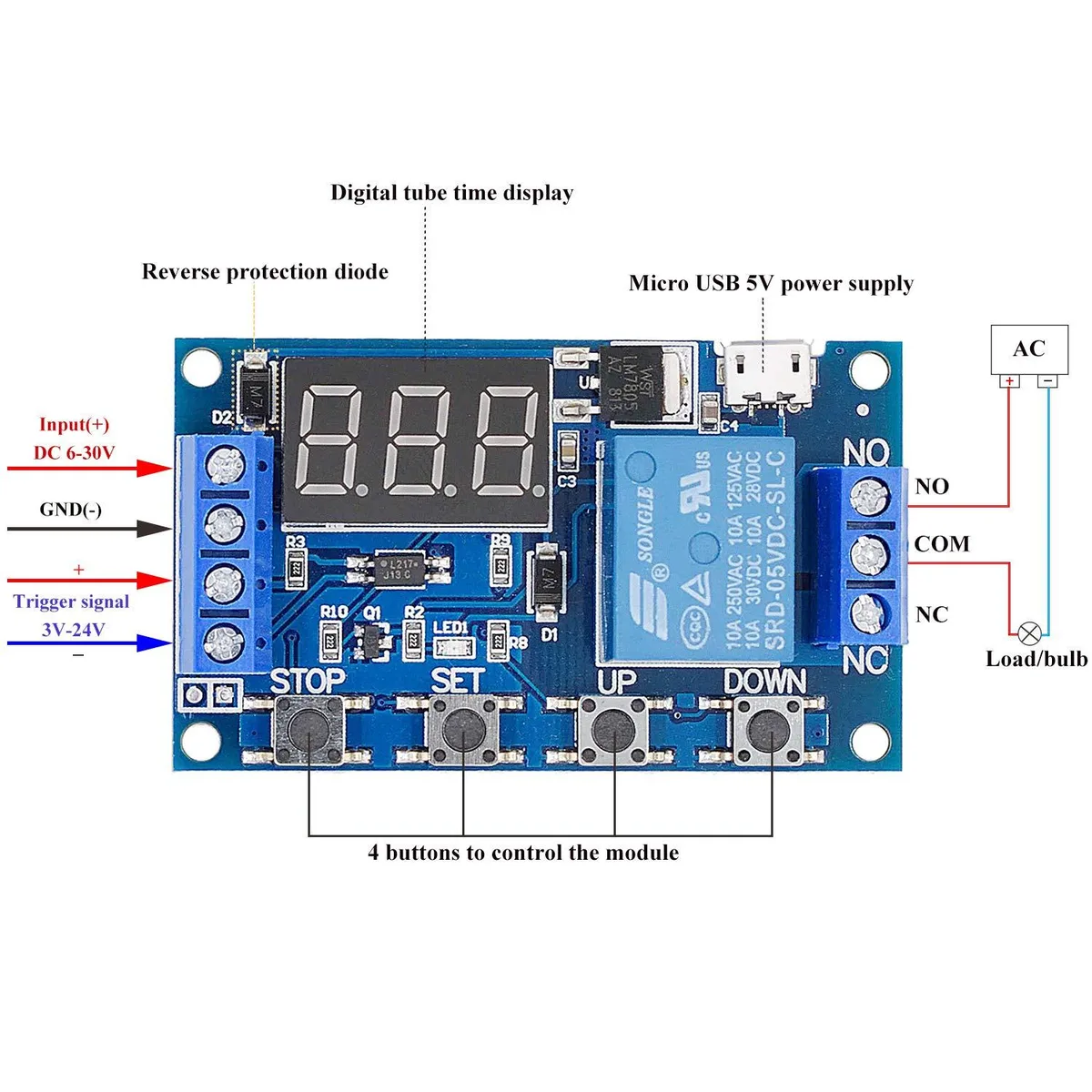

This two-pack supplies DC 6-30V timer relays with micro USB 5V power input for smart home, industrial and irrigation control. Each module offers independently adjustable OP conduction time, CL off time and LOP cycle count with permanent parameter storage. A built-in diode protects against accidental reverse polarity on the supply lines.

Timing Range 0.1s to 999mins

The continuously adjustable timing span covers 0.1 seconds up to 999 minutes, letting the same hardware handle short pulses and long delays without extra components. Trigger modes P1.1 through P3.1 define how re-trigger signals behave, from ignore to reclock to reset. All settings remain saved after power loss.

Sustained Load Behaviour

The normally open contact is rated for AC 250V/10A and DC 30V/10A maximum load, so the relay can switch resistive or inductive circuits continuously within those limits. Operating current draws 50mA with a 20mA static draw, and the board enters sleep mode after five minutes of inactivity to reduce heat. Working temperature spans -20 to 60°C.

Highlights

  • Multifunction timer relay with programmable delay modes
  • DC 6V to 30V operating voltage with micro USB 5V supply
  • Reverse polarity protection via built-in diode
  • Sleep mode turns off display after 5 minutes
  • Adjustable timing range from .1 seconds to 999 minutes

Specifications

No published specifications for this item yet.

Questions about this item

What does the 999-minute maximum timing range allow me to automate?

The timer can run cycles up to 999 minutes, so you can schedule long irrigation runs, ventilation periods or equipment protection sequences without needing an external controller.

How does the DC 6-30V operating window limit the loads I can switch?

The relay contacts are rated for AC 250V at 10A and DC 30V at 10A, so the supply voltage range only powers the module while the switched circuit can handle mains-level voltage and current.

Will the 6.4 by 3.8 by 1.7 cm module fit inside a standard DIN-rail enclosure?

At 6.4 cm long, 3.8 cm wide and 1.7 cm deep the board is small enough for most compact enclosures, but you should verify the internal clearance of your specific DIN-rail housing before mounting.
