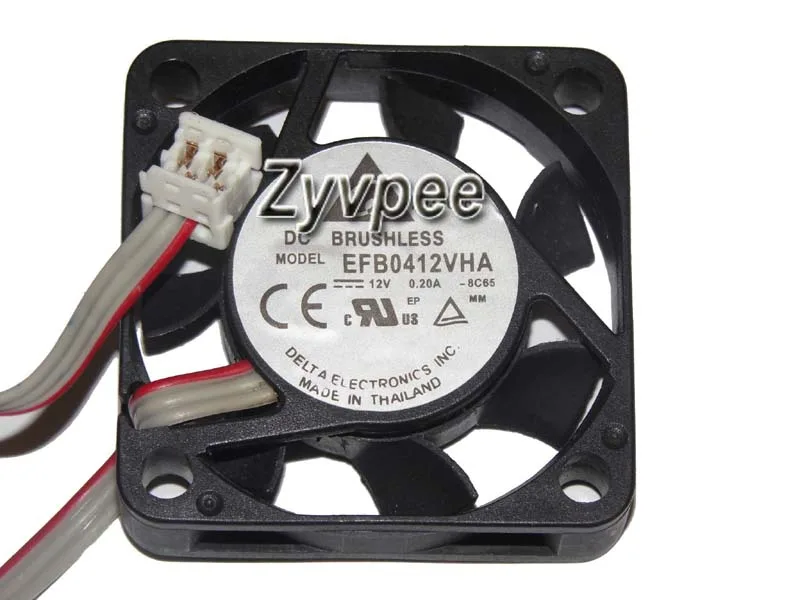

Black 40x10mm case fan with 3-pin connector

Zyvpee

Zyvpee EFB0412VHA 8C65 40x10mm 12V 0.2A 3-pin case fan

SKU CH-HC4W-FMZ41

A 40 mm by 10 mm ball-bearing case fan running at 12 V and 0.2 A with a three-pin connector

  • TypeCase Fan
  • Bearing TypeBall
  • Power Connector3 Pin
  • ColorBlack
  • LEDNon-LED
  • FeaturesCase Fan
  • Compact 40x10 mm design fits tight chassis spaces
  • Ball bearing ensures durable, low-friction operation
  • 12 V 0.2 A rating keeps power draw minimal
  • Three-pin connector enables direct motherboard control
  • Non-LED black frame suits stealth builds

40 mm ball-bearing case fan

The Zyvpee EFB0412VHA 8C65 is a compact 40*10MM case fan built for 12 V DC systems. It draws 0.2 A through a standard 3-pin power connector and uses a ball bearing for reliable rotation. The non-LED black frame suits industrial or embedded builds where space is tight and lighting is unwanted.

Replaces larger or sleeve-bearing 4010 fans

This unit fits the same 40 mm mounting pattern as common 4010 models but upgrades the bearing to ball type for longer service life in continuous operation. The jump is worth it when the existing fan has developed noise or vibration from sleeve wear, or when a 3-wire tachometer signal is needed for monitoring. It does not serve builds that require PWM speed control or a 4-pin header.

Limited by 3-pin voltage control

Speed regulation relies on the motherboard or controller varying the 12 V supply, so fine-grained PWM curves are not available. The 3-pin interface provides a tachometer output but cannot accept a separate PWM duty-cycle signal. Builders who need closed-loop speed profiles or software-defined fan curves should look for a 4-pin PWM alternative.

Highlights

  • Compact 40x10 mm design fits tight chassis spaces
  • Ball bearing ensures durable, low-friction operation
  • 12 V 0.2 A rating keeps power draw minimal
  • Three-pin connector enables direct motherboard control
  • Non-LED black frame suits stealth builds

Specifications

Brand3ccooler.com
SeriesEFB0412VHA 8C65
ModelEFB0412VHA
TypeCase Fan
Bearing TypeBall
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesCase Fan
Dimensions40*10MM

Questions about this item

Will the 40x10mm frame fit my 40mm mounting holes?

Yes, the fan measures 40 by 10 millimetres and uses the standard 40mm hole pattern.

How do I connect the 3-pin plug and which wire does what?

Plug the three-pin connector into a 12V motherboard header; the third wire carries the tachometer signal for speed monitoring.

When should I expect to replace the ball-bearing fan?

Ball bearings typically run for tens of thousands of hours; replace the unit when noise increases or rotation slows.
