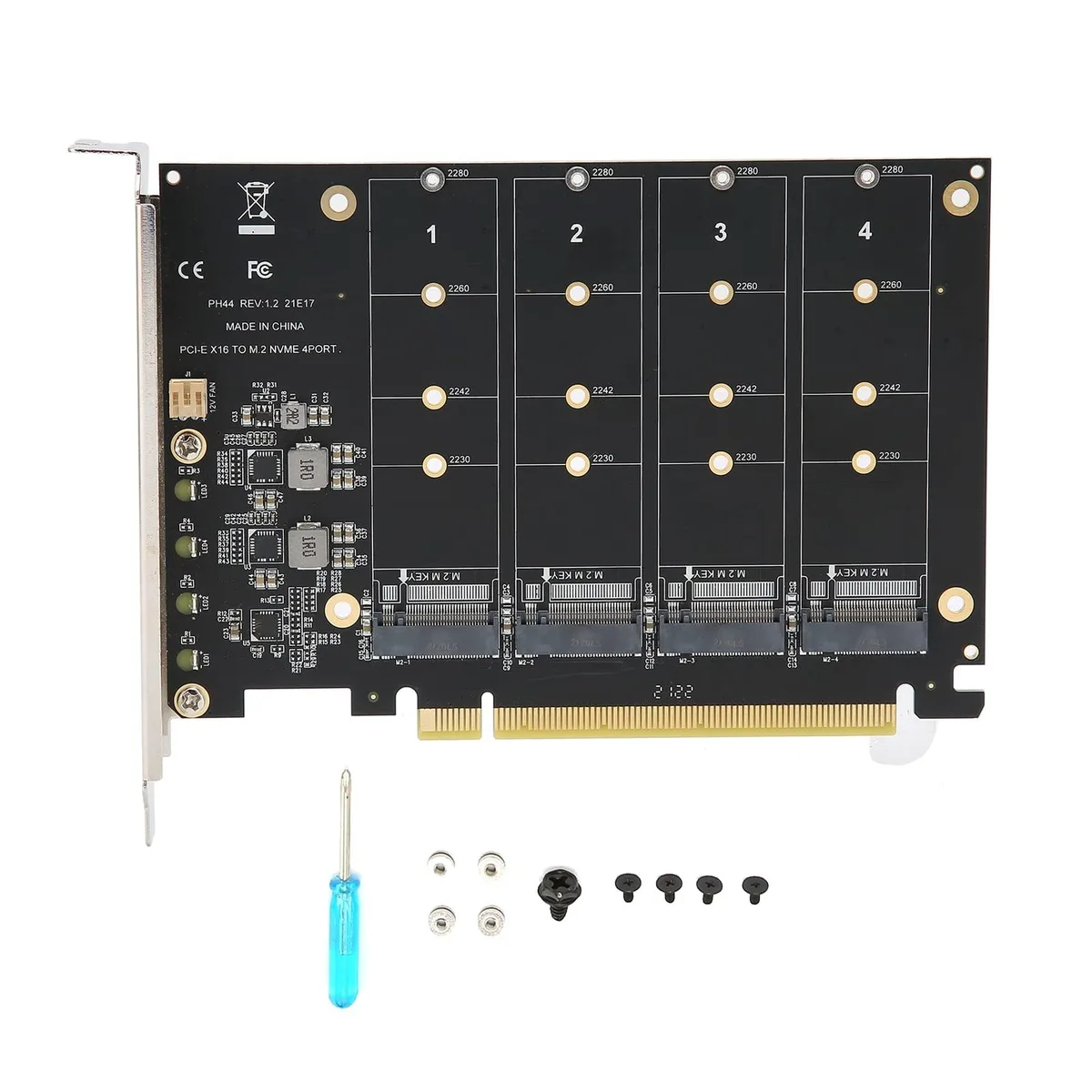

Black PCIe expansion card with four M.2 NVMe slots and LED indicators

WRIARICH

WRIARICH PH44 4-port NVMe data adapter

SKU CH-G0W8-D8TGT MPN PH44

Adds four M.2 NVMe slots over a PCIe 3.0/4.0 x16 link with LED status lights

  • Typeblack
  • ColorBlack
  • Cable Length5 in.
  • Specificationspci_express_x4, 3.2 L x 20.2 W x 26.1 H centimeters, 0.13 ki
  • Connector A30
  • Connector StyleStandard
  • Add four NVMe drives at once with a single PCIe x16 slot
  • Soft RAID across four identical NVMe SSDs for data consistency
  • PCIe 3.0 and 4.0 support with 32 Gbps per port bandwidth
  • Thick PCB and reinforced x16 connector keep drives secure
  • Four LED indicators show each drive status at a glance

What this adapter does

The WRIARICH PH44 is a PCIe x16 expansion card that adds four M-key M.2 NVMe slots to a desktop system. It accepts 2230, 2242, 2260 and 2280 form-factor drives and presents each at up to 32Gbps. The card targets builders who need high-density NVMe storage without occupying front-panel bays.

Before you order

Your motherboard must support PCIe bifurcation so the x16 slot can be split into x4/x4/x4/x4 or equivalent lanes. It also needs an available x16 slot that is not shared with other PCIe devices such as a graphics card or onboard NVMe. A driver installation is required in the operating system. The package includes mounting nuts, screws and a screwdriver.

Under sustained load

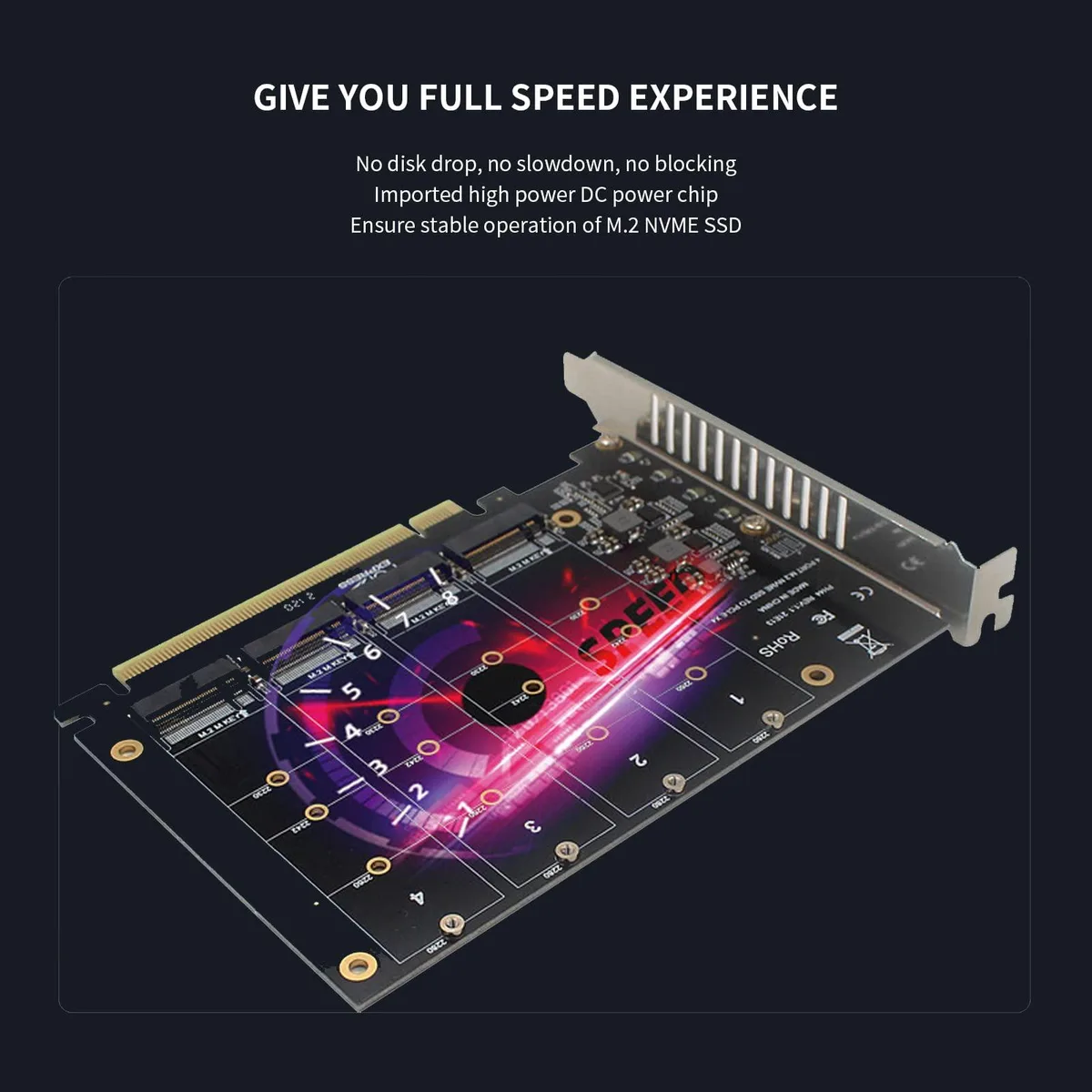

Each of the four ports maintains a full 32Gbps signal path thanks to a high-power DC power chip on the board. The thicker PCB and solid x16 edge connector keep the electrical connection stable during long transfers. Four onboard LEDs show individual drive activity so you can verify that no disk drops or slows down during extended RAID or parity operations.

Highlights

  • Add four NVMe drives at once with a single PCIe x16 slot
  • Soft RAID across four identical NVMe SSDs for data consistency
  • PCIe 3.0 and 4.0 support with 32 Gbps per port bandwidth
  • Thick PCB and reinforced x16 connector keep drives secure
  • Four LED indicators show each drive status at a glance

Specifications

BrandDell
SeriesPH44
ModelGugxiom92704c3exh14383-11
Part NumberGugxiom92704c3exh14383-11
Typeblack
ColorBlack
Cable Length5 in.
Specificationspci_express_x4, 3.2 L x 20.2 W x 26.1 H centimeters, 0.13 kilograms, PH44, 43201400
Connector A30
Connector StyleStandard
Package Quantity1
Package Contents1, false
Disclaimernot_applicable

Questions about this item

Does the PH44 come with everything needed to install four M.2 NVMe SSDs, or do I need extra parts?

The package includes the adapter card, four nuts, five screws and a screwdriver. No additional mounting hardware is required for the four supported M.2 sizes.

How do I decide which M.2 length — 2230, 2242, 2260 or 2280 — to use with the PH44?

The card accepts all four lengths simultaneously. Choose the length that matches each SSD you own; the mounting holes and supplied screws cover 2230 through 2280.

What does the 4 × 32 Gbps figure mean for actual transfer rates on my system?

Each of the four slots can deliver up to 32 Gbps when the motherboard provides PCIe 3.0 or 4.0 bifurcation and the SSD supports that speed. Real throughput depends on the drive and motherboard configuration.
