Compact grey docking station with integrated USB-C cable, multiple ports on front and back

Wavlink

Wavlink WL-UMD08 USB-C docking station triple 4K 85W PD

SKU CH-J8V0-XAGHK MPN WL-UMD08

Connects three 4K monitors at 60 Hz via two HDMI and one DisplayPort while delivering 85 W pass-through charging, plus gigabit Ethernet, two 5 Gbps USB-A ports, two 480 Mbps USB-A ports.

  • ColorBlace/Grey
  • CompatibilitySuitable for your thunderbolt 3/4 laptops or devices with fu
  • Ports SpecPD3.0 supports up to 85W Pass Through Charging, 2 x USB3.0 A
  • FeaturesMST triple displays to extend different pages to 3 monitors
  • ContentIn the box: 1 x USB-C Triple Display docking station1x Quick

Color Blace/Grey

Option 85W

  • Triple 4K monitors extend your workspace using two HDMI and one DisplayPort
  • 85 W pass-through charging powers your laptop while you work
  • Gigabit Ethernet gives a stable wired connection up to 1000 Mbps
  • Two USB 3.0 ports transfer files at up to 5 Gbps
  • SD and microSD card reader reads cards up to 2 TB at 25 MB/s

Triple 4K docking station for USB-C laptops

The Wavlink WL-UMD08 connects a laptop with a full-featured USB-C or Thunderbolt 3/4 port to three external displays using two HDMI 2.0 outputs and one DisplayPort 1.4 output. It is aimed at professionals who need extended desktop space for tasks such as programming, design review or financial analysis. The integrated 50 cm host cable keeps the unit close to the computer without extra cabling.

Aluminium finish with twelve integrated ports

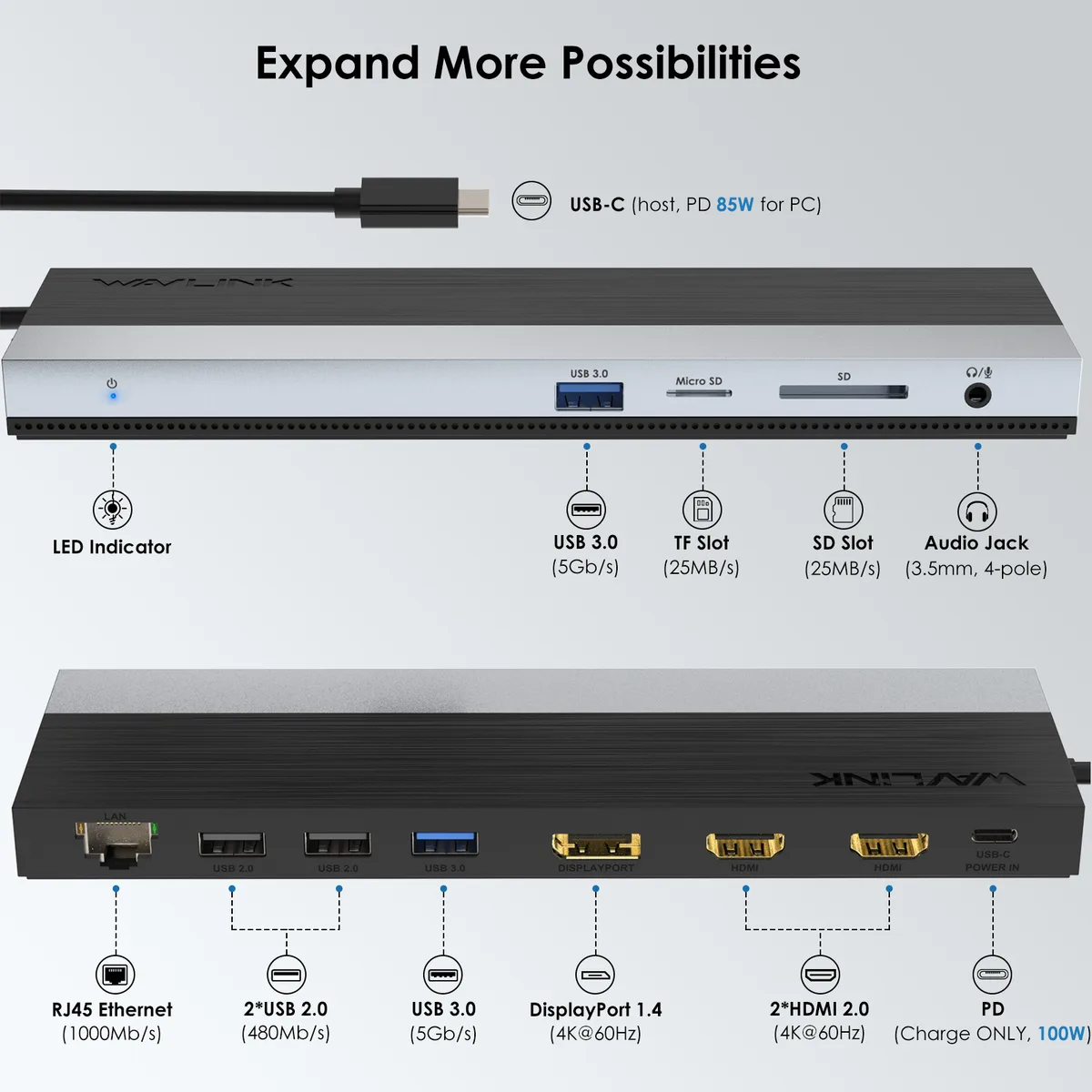

The enclosure provides two USB-A 5 Gbps ports, two USB-A 480 Mbps ports, a Gigabit Ethernet jack, a TRRS 3.5 mm audio combo jack and an SD/Micro SD 3.0 card reader that accepts one card at a time. An upstream USB-C port accepts up to 100 W Power Delivery input and passes up to 85 W to the host laptop, so the dock powers the computer while driving peripherals and displays.

MST limits and Mac single-display constraint

Windows systems use Multi-Stream Transport to extend three independent 4K images; a single HDMI or DisplayPort can reach 4K at 60 Hz, two monitors drop to 4K at 30 Hz, and three monitors run at dual 4K 30 Hz plus 1080p 60 Hz. Intel-based Macs and Apple silicon Macs can only extend one external monitor regardless of the dock’s capabilities. The SD and Micro SD slots cannot operate simultaneously.

Highlights

  • Triple 4K monitors extend your workspace using two HDMI and one DisplayPort
  • 85 W pass-through charging powers your laptop while you work
  • Gigabit Ethernet gives a stable wired connection up to 1000 Mbps
  • Two USB 3.0 ports transfer files at up to 5 Gbps
  • SD and microSD card reader reads cards up to 2 TB at 25 MB/s

Specifications

BrandWavlink
ModelUMD08
Part Number1x USB-C to Host with integrated cable 50cm length 2 x HDMI 2.0 1 x DisplayPort 1.4 1x USB-C supports PD 100W IN 2x USB-A 5Gbps 2x USB-A 480Mbps 1x Gigabit Ethernet 1x SD/Micro SD 3.0 1x Combo Audio 1x LED light Indicator
ColorBlace/Grey
CompatibilitySuitable for your thunderbolt 3/4 laptops or devices with full-featured type-c port(support charging and video output). Works with MacBook Pro/Air 2021/2020/2019/2018/2017/2016, iMac/ iMac Pro, Google Chromebook Pixel, Huawei MateBook Pro, Dell, Surface Book 2, HP, Lenovo, etc.
Ports SpecPD3.0 supports up to 85W Pass Through Charging, 2 x USB3.0 A port speed up to 5Gbps, 2 x USB2.0 A port speed up to 480Mbps, 2 x HDMI (2.0), 1 x DisplayPort (1.4), Integrated TRRS 4-pole phone jack, SD/Micro SD V3.0 Card Reader slot, 1x RJ45 10/100/1000Mbps Ethernet, 1x LED Power Indicator
FeaturesMST triple displays to extend different pages to 3 monitors 4K displays, featuring 2 x HDMI and 1 x DisplayPort PD3.0 passthrough charging, with power in 100W to charge your laptop up to 85W Multiple USB A ports, Gigabit Ethernet port, Audio/Mic jack, card readers to make up for missing functions of computer Driver-free Plug and Play, compatible with PC with USB-C Alt Mode or Thunderbolt 3/4 port
ContentIn the box: 1 x USB-C Triple Display docking station1x Quick Start Guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What resolution and refresh rate does the DisplayPort 1.4 output support when a single monitor is connected?

A single DisplayPort 1.4 connection can drive one monitor at 4K 60Hz when the host supports DSC.

What is the length of the integrated host cable and what clearance does it need behind the laptop?

The built-in USB-C cable is 50 cm long, so allow at least that much space behind the port for a clean bend.

Does the dock need any driver installation on Windows before the three video outputs become active?

Windows uses the native DisplayPort Alt Mode driver; just plug the dock into a full-featured USB-C port and the displays appear.
