Black rectangular USB-C docking station with HDMI, two DisplayPorts, Ethernet, audio jack, card slots and four USB-A ports

Wavlink

Wavlink UMD01 USB-C Docking Station Triple 4K 65W PD

SKU CH-3FH1-0Q5TR

Connects a USB-C laptop to three 4K displays, wired Ethernet, four USB 3.0 ports, audio, and SD cards while delivering 65 W charging

  • ColorBlack/Gray
  • CompatibilityComprehensive Compatibility: A USB-C expansion hub for Apple
  • Ports SpecDC Jack, USB-C(upstream), 2 x Displayport, 1 x HDMI, 1 x RJ4
  • FeaturesOne HDMI(HDMI2.0) and two DP(DP1.4) , supports up to dual 4K
  • Content1 x USB-C Triple Display docking station 1 x USB-C to USB-C

Color Black/Gray

Option 65W

  • Triple 4K@60Hz output via HDMI 2.0 and two DP 1.4 ports
  • 65 W USB-C Power Delivery keeps laptop charged while working
  • Four USB 3.0 ports plus USB-C deliver 5 Gbps data speeds
  • Gigabit RJ45 Ethernet provides stable 1000 Mbps wired connectivity
  • SD and microSD slots read both cards simultaneously at 104 Mbps

Triple 4K Docking Station for USB-C Laptops

The Wavlink UMD01 adds three external displays, wired networking, four USB 3.0 ports and card readers through a single USB-C cable. It delivers up to 65 W of power to the host laptop while driving HDMI and dual DisplayPort outputs at 4K 60 Hz.

Windows users who want multi-monitor productivity

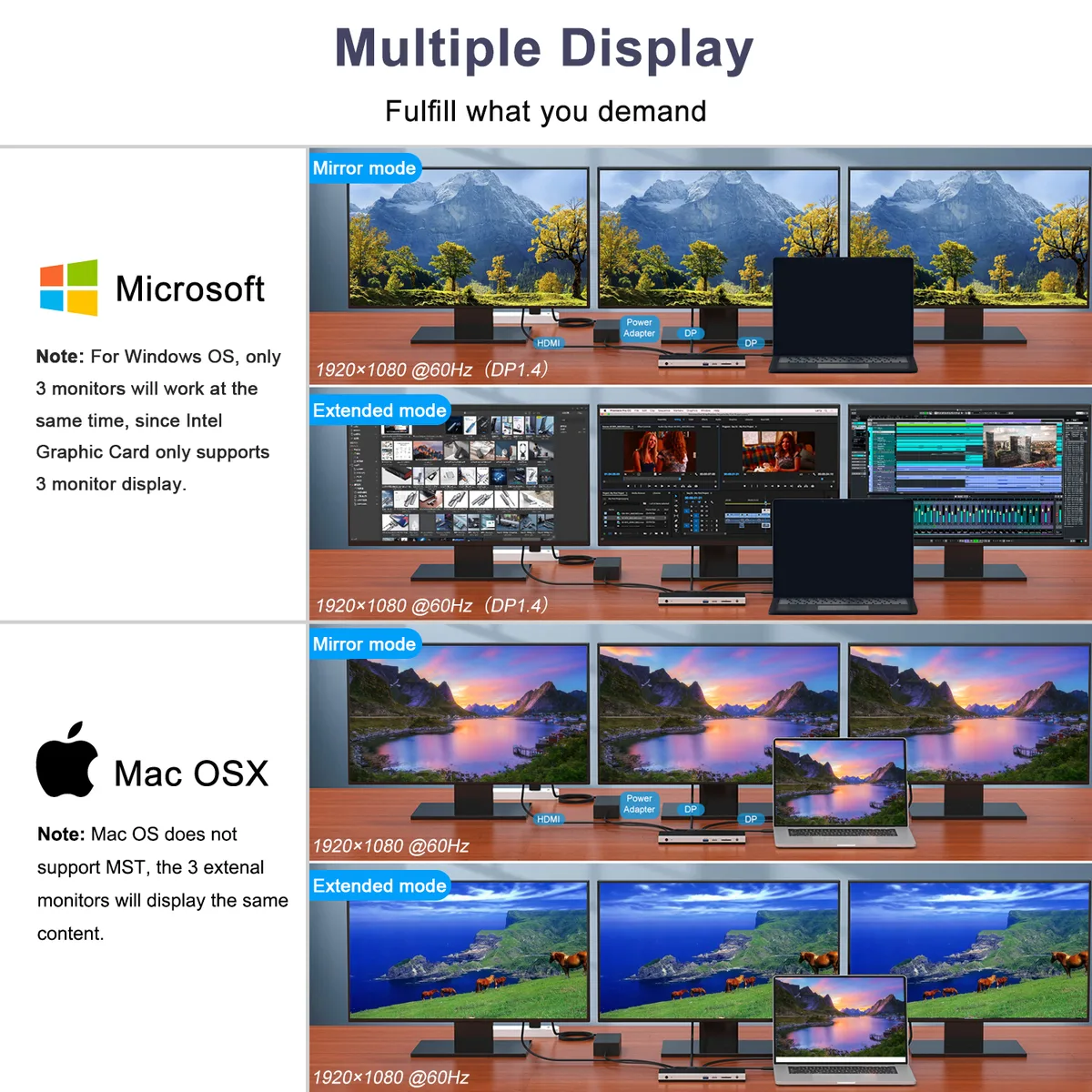

Windows supports MST for independent extended desktops across two or three screens. macOS only mirrors the same image on every external monitor, so Mac owners needing true multi-monitor extension should look elsewhere. The dock also requires a host port with DP Alt Mode video output.

65 W upstream power delivery

The included 100 W adapter powers the hub and passes 65 W to the connected laptop. If your notebook needs more than 65 W to charge under load, this dock will not keep the battery full.

Highlights

  • Triple 4K@60Hz output via HDMI 2.0 and two DP 1.4 ports
  • 65 W USB-C Power Delivery keeps laptop charged while working
  • Four USB 3.0 ports plus USB-C deliver 5 Gbps data speeds
  • Gigabit RJ45 Ethernet provides stable 1000 Mbps wired connectivity
  • SD and microSD slots read both cards simultaneously at 104 Mbps

Specifications

BrandWavlink
ModelUMD01
Part NumberOne monitor: DisplayPort((DP1.4): Resolution up to 4K@60Hz(HBR3,DP1.4) HDMI(HDMI 2.0): Resolution up to 4K@60Hz(HBR3,DP1.4)Dual monitors: Dual DisplayPort(DP1.4): Resolution up to 4K@60Hz(HBR3,DP1.4), DisplayPort(DP1.4) + HDMI(HDMI 2.0): Resolution up to 4K@60Hz(HBR3,DP1.4)Triple monitors (simultaneously): DisplayPort 1(DP1.4): Resolution up to 1080P@60Hz DisplayPort 2(DP1.4): Resolution up to 1080P @60Hz HDMI (HDMI 2.0): Resolution up to 1080P @60Hz
ColorBlack/Gray
CompatibilityComprehensive Compatibility: A USB-C expansion hub for Apple MacBook, Apple MacBook Pro 2016/2017/2018/2019/2020, Apple iMac/ iMac Pro (21. 5 inch, 27 inch), Google Chromebook Pixel, Huawei MateBook, Huawei MateBook Pro, Dell, Surface Book2, HP, Lenovo, and Samsung S9, S9 Plus, S8, S8 Plus, Note 9, Note 8, Huawei New version phones and many other Type C laptops. Compatible with most type-c and thunderbolt 3/4 devices.

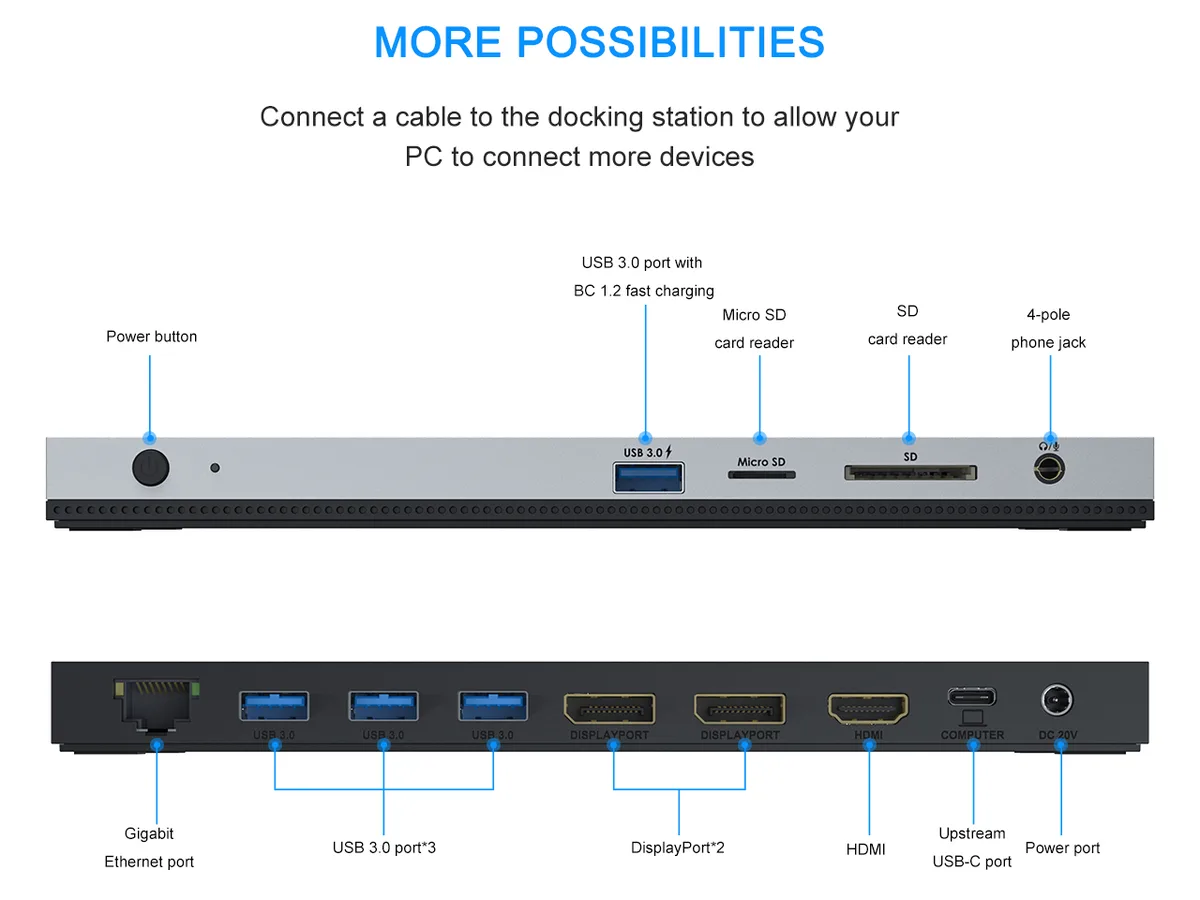

Ports SpecDC Jack, USB-C(upstream), 2 x Displayport, 1 x HDMI, 1 x RJ45, 4-Pole Phone Jack, SD / TF CardReader, 4 x USB3.0-A
FeaturesOne HDMI(HDMI2.0) and two DP(DP1.4) , supports up to dual 4K@60Hz (HBR3, DP1.4) or triple displays. Supports USB Power delivery up to 65W/100W (Pro) upstream charging to laptop SD V3.0 /Micro SD Card Reader slot data transfer speed up to 104MB/s Four USB 3.0 A port support up to 5Gbps with one port support BC1.2 fast charging, and One USB3.1 Gen2 Ethernet port supports up to 1 Gbps (10/100/1000 Mbps) One combo Audio/Mic port Compatible with PC with an available USB-C with ‘DisplayPort Alternate mode’(Alt Mode) or Thunderbolt 3/4 port Driver-free Plug and Play Special decent design wi
Content1 x USB-C Triple Display docking station 1 x USB-C to USB-C 1m cable(E-mark) 1 x Power Adapter 1 x AC Power 1.5m Cable 1 x Quick Start Guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the UMD01 need my laptop's USB-C port to support DisplayPort Alt Mode for the two DP 1.4 and one HDMI 2.0 outputs to work?

Yes, the upstream USB-C connection must carry DisplayPort Alt Mode so the dock can drive its two DisplayPort 1.4 ports and one HDMI 2.0 port at up to 4K 60 Hz.

Will the dock's 65 W Power Delivery charge an older laptop that only accepts 45 W over USB-C?

The dock negotiates power with the host, so a 45 W laptop will draw only what it needs while the dock reserves up to 65 W for charging.

How can I confirm the UMD01 is delivering 4K 60 Hz to each monitor in a triple-display setup?

In Windows display settings, verify each external monitor shows 3840×2160 at 60 Hz; on macOS all three externals will mirror at the same resolution.
