Green rectangular HAT board with gold 40-pin header, SIM and TF slots, USB port, audio jack, two LEDs

WaveShare

WaveShare SIM7600G-H 4G HAT network card

SKU CH-9V4J-TMS1N

Adds global 4G LTE Cat 4 connectivity up to 150 Mbps downlink plus GNSS positioning to Raspberry Pi, Jetson Nano, Arduino or STM32 boards via 40-pin header and USB

  • CPU TypeOther
  • LTE CAT4 downlink up to 150Mbps for fast mobile broadband
  • GNSS multi-constellation positioning with GPS, BeiDou and Glonass support
  • 40-pin GPIO header plus broken-out UART for Raspberry Pi, Jetson Nano, Arduino and STM32
  • Onboard CP2102 USB-UART converter and USB port for AT-command debugging
  • Dual-voltage 3.3V/5V operation with 1.8V/3V SIM slot and TF card storage

4G HAT for Raspberry Pi and Jetson

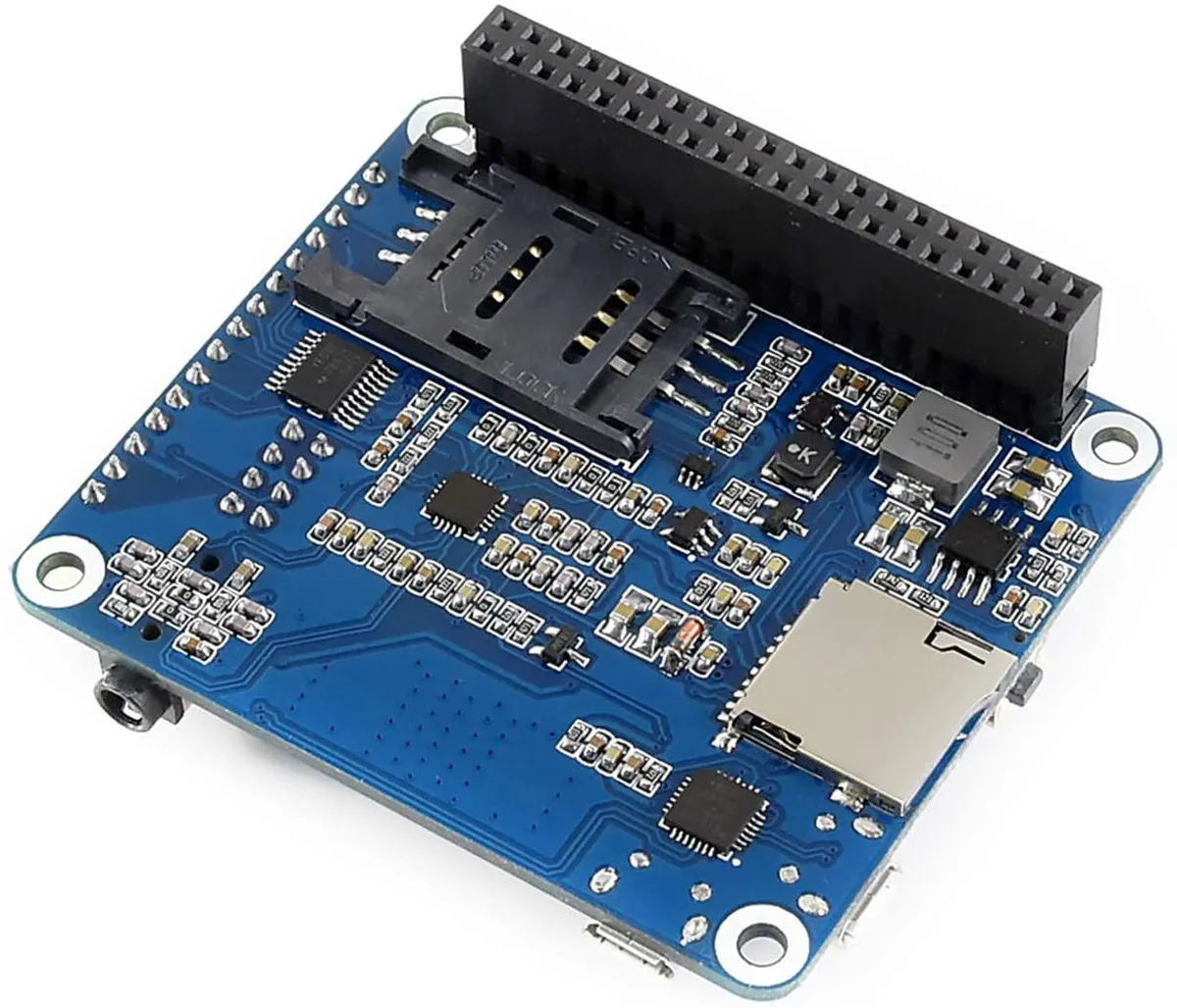

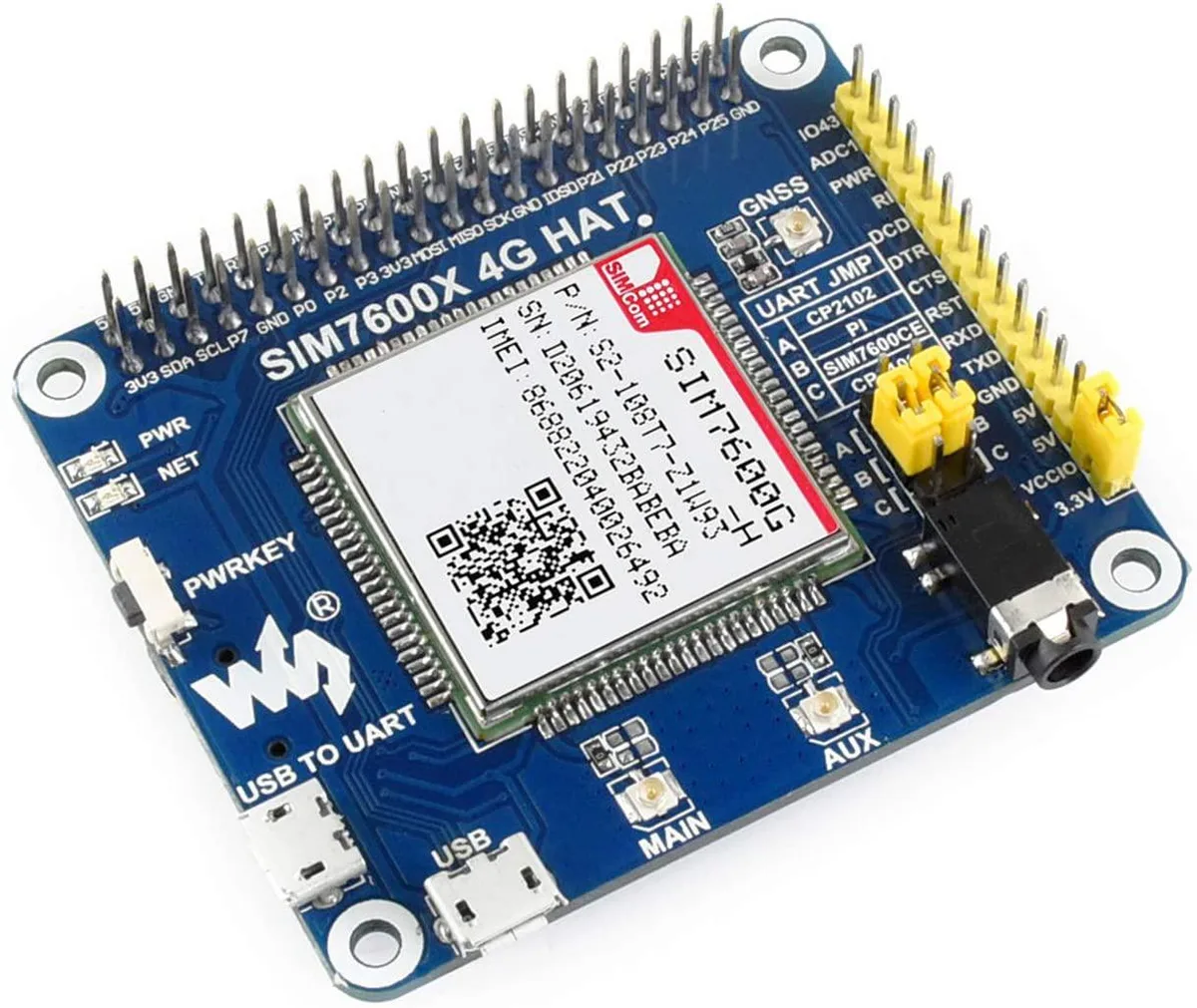

The WaveShare SIM7600G-H adds LTE CAT4 connectivity up to 150 Mbps downlink plus GNSS positioning to Raspberry Pi 4B, 3B+, 3B, 2B, Zero and Zero W boards as well as Jetson Nano. It also breaks out UART pins for Arduino and STM32 hosts. A SIM slot accepts 1.8 V or 3 V cards and a TF slot stores local data.

Low power consumption and simple monitoring

The module is described as having pretty low power consumption and can be configured for 3.3 V or 5 V logic via an onboard voltage translator. Two LED indicators show working status at a glance. An onboard CP2102 USB-to-UART converter and USB port give direct serial access for AT command testing and GPS data retrieval without extra adapters.

Global LTE CAT4 with GNSS

The single specification that decides fit is the SIM7600G-H modem supporting LTE CAT4 at 150 Mbps downlink with GPS, BeiDou, Glonass and LBS positioning worldwide. Buyers who need higher LTE categories, 5G NR or carrier-specific bands not covered by the global module should look elsewhere.

Highlights

  • LTE CAT4 downlink up to 150Mbps for fast mobile broadband
  • GNSS multi-constellation positioning with GPS, BeiDou and Glonass support
  • 40-pin GPIO header plus broken-out UART for Raspberry Pi, Jetson Nano, Arduino and STM32
  • Onboard CP2102 USB-UART converter and USB port for AT-command debugging
  • Dual-voltage 3.3V/5V operation with 1.8V/3V SIM slot and TF card storage

Specifications

CPU TypeOther

Questions about this item

How do I mount the HAT on a Raspberry Pi 4B and which header pins must line up?

Align the 40-pin GPIO extension header with the Pi's 40-pin connector and press down evenly; the board also breaks out UART control pins for Arduino or STM32 hosts.

What consumable parts will need replacement during the life of the board?

The nano-SIM card and micro-TF card are the only user-replaceable media; the CP2102 USB-to-UART bridge and onboard audio decoder are soldered and not designed for swap-out.

What throughput ceiling appears first when the link runs continuously at full load?

LTE CAT4 caps downlink at 150 Mbps, so sustained transfers will hit that radio-layer limit before the USB or UART interfaces become bottlenecks.
