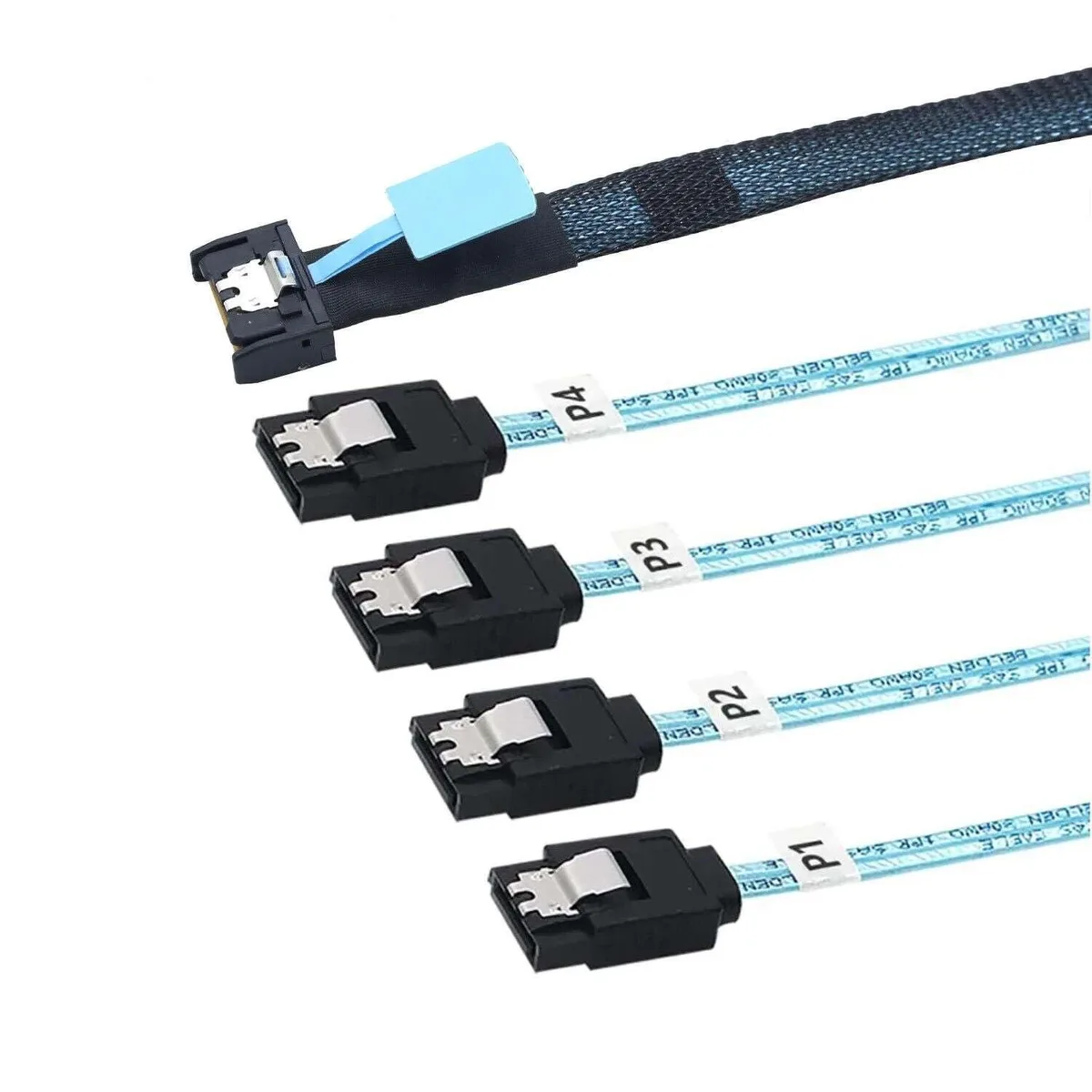

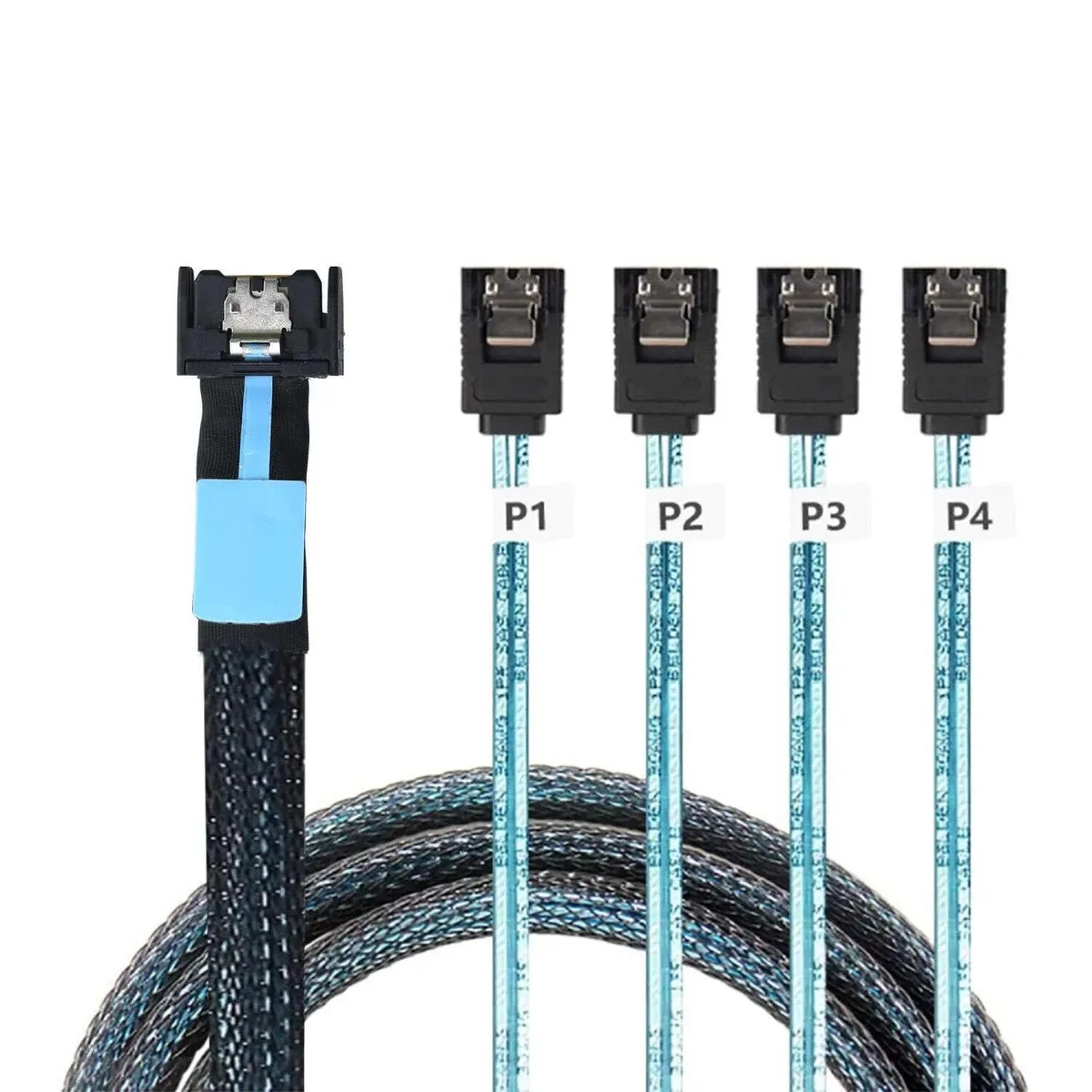

Flat 100cm cable with 38-pin MCIO connector splitting to four SATA female ports

Vszerda

Vszerda SFF-8654 38P MCIO 4i to 4X SATA Female Extender Cable 100CM

SKU CH-BHD6-JBTCB

Connects an SFF-8654 38-pin port to four SATA 6 Gbps drives with a 100 cm flat cable for dense server bays

  • TypeSAS
  • Length18
  • Connector DetailMcio
  • Terminal GenderMale-to-Male
  • Speed6 gigabits_per_second
  • SpecificationsSAS
  • SFF-8654 interface supports SAS 4.0 speeds up to 24Gbps
  • Four SATA 7Pin connectors each deliver 6Gbps SATA 3.0 performance
  • Flat cable design simplifies routing in tight server chassis
  • Hot-plug support allows drive swaps without server shutdown
  • 100cm length provides flexible placement in rack environments

SFF-8654 38-pin to four SATA 7-pin

This Vszerda cable converts a single SFF-8654 38-pin MCIO 4i port into four SATA 7-pin female connectors. It supports the SAS 4.0 standard at up to 24 Gbps on the host side while each SATA link runs at 6 Gbps. The 100 cm flat ribbon design eases routing in dense server chassis.

Suited for SAS backplanes with SATA drives

Builders populating SATA hard drives or SSDs into a server backplane that exposes an SFF-8654 4i connector will find this extender a direct fit. Hot-plug capability allows drive swaps without powering down. Systems requiring more than four SATA devices or a different host connector type need an alternative solution.

100 cm flat-cable length

The cable measures 100 cm end to end, setting the maximum distance between the motherboard MCIO port and the drive cage. Verify that this reach matches your chassis layout before ordering.

Highlights

  • SFF-8654 interface supports SAS 4.0 speeds up to 24Gbps
  • Four SATA 7Pin connectors each deliver 6Gbps SATA 3.0 performance
  • Flat cable design simplifies routing in tight server chassis
  • Hot-plug support allows drive swaps without server shutdown
  • 100cm length provides flexible placement in rack environments

Specifications

BrandST-JY
ModelMCIOSFF8654-4XST-FE
TypeSAS
Length18
Connector DetailMcio
Terminal GenderMale-to-Male
Speed6 gigabits_per_second
SpecificationsSAS
ShieldingHigh-speed transfer, flexible extender design, durable construction
FeaturesHigh-speed transfer, flexible extender design, durable construction

Questions about this item

How can I verify the cable is delivering the 24 Gbps link speed after installation?

Check the host controller or HBA firmware for a negotiated SAS 4.0 link at 24 Gbps on each of the four lanes; the SATA drives will show a 6 Gbps SATA 3.0 connection on their respective ports.

What connectors and drives are included, and what must I supply?

The cable provides a 38-pin SFF-8654 4i plug on one end and four SATA 7-pin female receptacles on the other; you must supply the SATA drives and a motherboard or controller with an SFF-8654 4i port.

Which version should I choose for a 100 cm run in a dense server chassis?

The 100 cm flat-cable variant is the only length offered; its slim profile fits tight spaces and maintains signal integrity for the 24 Gbps SAS 4.0 uplink and four 6 Gbps SATA 3.0 downlinks.
