Black PCIe x16 expansion card with four M.2 NVMe slots and LED indicators

Vszerda

Vszerda ph44 SATA / eSATA cable

SKU CH-QEM6-EEB7K MPN ph44

Adds four M.2 NVMe SSDs via a PCIe x16 slot with individual activity LEDs and onboard power regulation

  • Four LED indicators show drive access and read-write activity
  • High-power DC chip delivers stable power to each M.2 NVMe SSD
  • Supports four-disk soft RAID under Windows 10 for data redundancy
  • PCIe 3.0 and 4.0 protocol support with x16 split interface
  • Includes baffle, locking hardware, studs, screws and screwdriver for installation

4-Port NVMe RAID Expansion Card

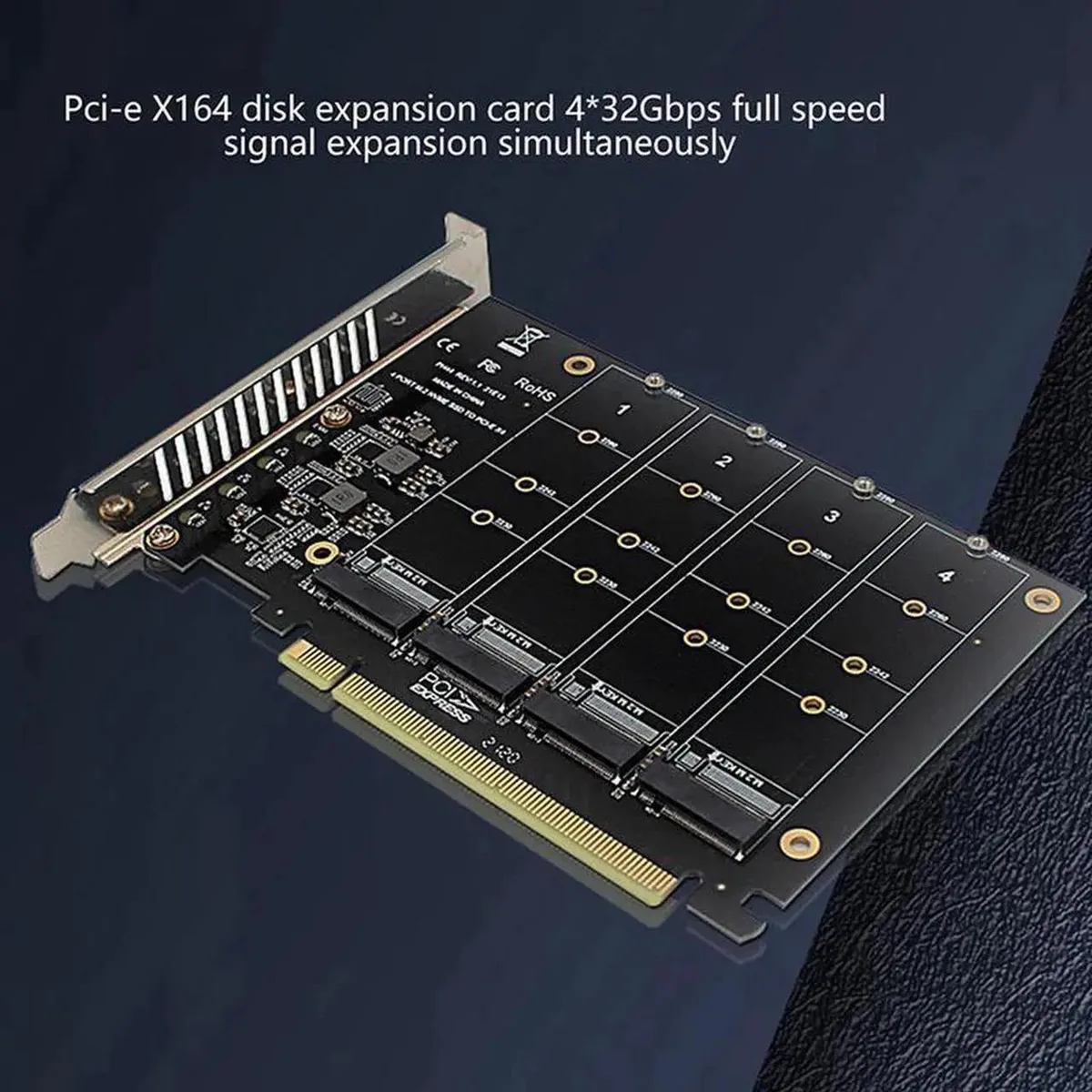

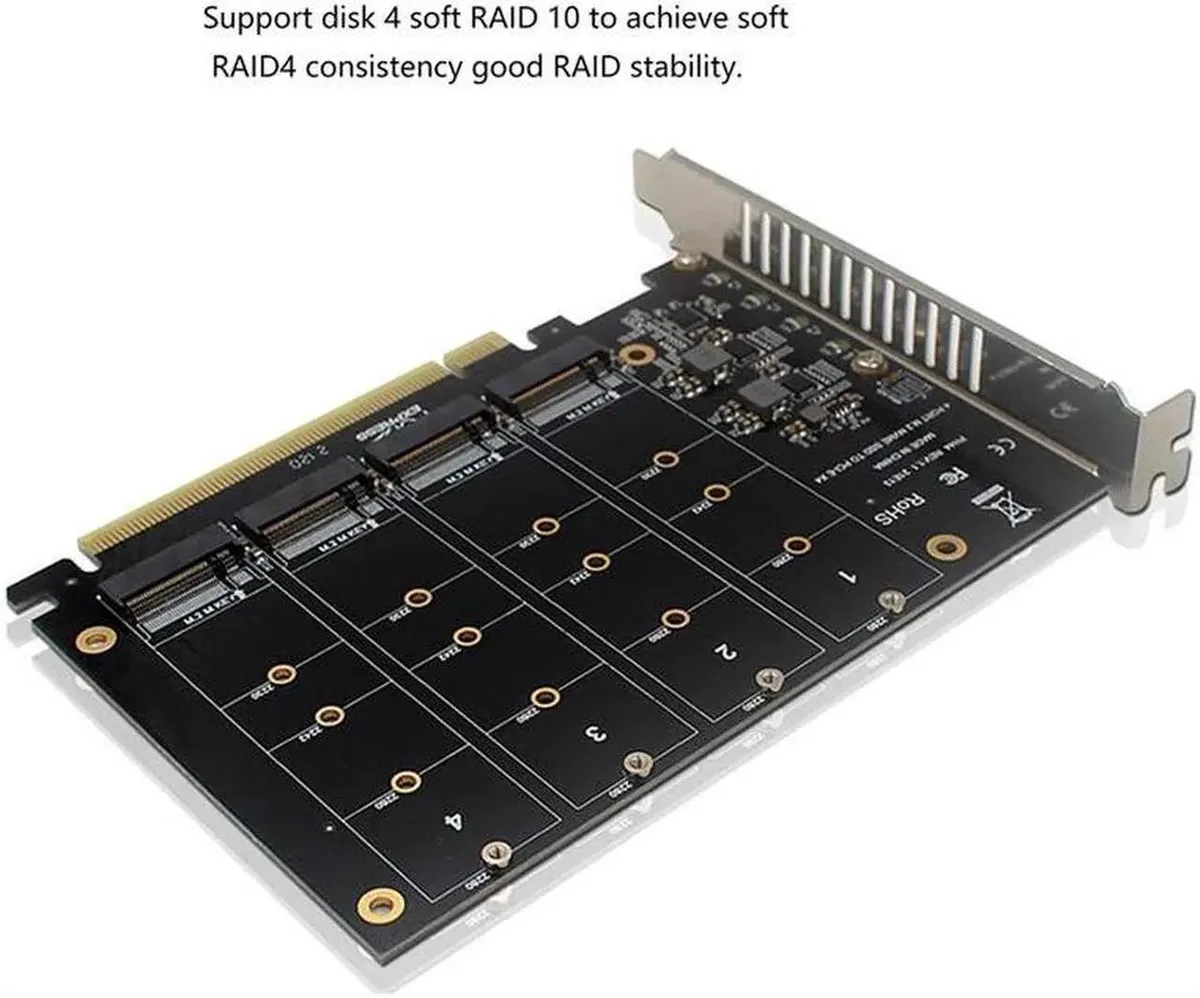

The Vszerda ph44 installs in a PCIe x16 slot and provides four M.2 NVMe drive positions with individual LED status indicators. An onboard high-power DC chip supplies stable power to every installed SSD. The card supports soft RAID across all four drives under Windows 10.

PCIe 3.0 and 4.0 Transport Protocol

The card operates with PCIe 3.0 and 4.0 signalling, delivering up to 32 Gbps per drive lane. It requires a motherboard that supports PCIe bifurcation or native PCIe RAID functionality to address all four NVMe devices simultaneously.

Builders Adding Multiple NVMe Drives

Suited for enthusiasts building a four-drive NVMe array where the platform exposes enough PCIe lanes and bifurcation support. Not suited for systems lacking PCIe splitting or for users needing SATA or eSATA connectivity.

Highlights

  • Four LED indicators show drive access and read-write activity
  • High-power DC chip delivers stable power to each M.2 NVMe SSD
  • Supports four-disk soft RAID under Windows 10 for data redundancy
  • PCIe 3.0 and 4.0 protocol support with x16 split interface
  • Includes baffle, locking hardware, studs, screws and screwdriver for installation

Specifications

No published specifications for this item yet.

Questions about this item

What does 4 × 32gbps mean for each M.2 NVMe drive installed?

Each slot can run at up to 32 Gbps, so four NVMe SSDs each get full PCIe 3.0 x4 bandwidth simultaneously.

Which PCIe generations does the x16 interface support and what does that limit?

The card works with PCIe 3.0 and 4.0; total throughput is capped by the host slot generation you install it in.

What clearance and mounting hardware are needed to fit the 14.3 × 12 × 10.2 cm board?

It occupies a full-height x16 slot and includes a baffle, lock screws, chassis screws, studs, locking-plate screws and a screwdriver for secure mounting.
