Black NGFF B+M adapter board with five SATA ports

Vszerda

Vszerda NGFF Key B+M to SATA 3.0 5-Port Adapter JMB575 2280

SKU CH-BVST-G2XF0

Adds five SATA 3.0 ports to an NGFF Key B+M slot using a JMB575 controller

  • ColorBlack
  • Weight11 grams
  • Connect five SATA drives through one M.2 slot using JMB575 port-multiplier
  • Single-chip JMB575 handles five independent SATA 3.0 channels with on-board micro-processor
  • Meets Serial ATA Port Multiplier Spec 1.2 for reliable multi-drive operation
  • Complies with Port Select Spec 1.0 and supports BIST and loopback diagnostics

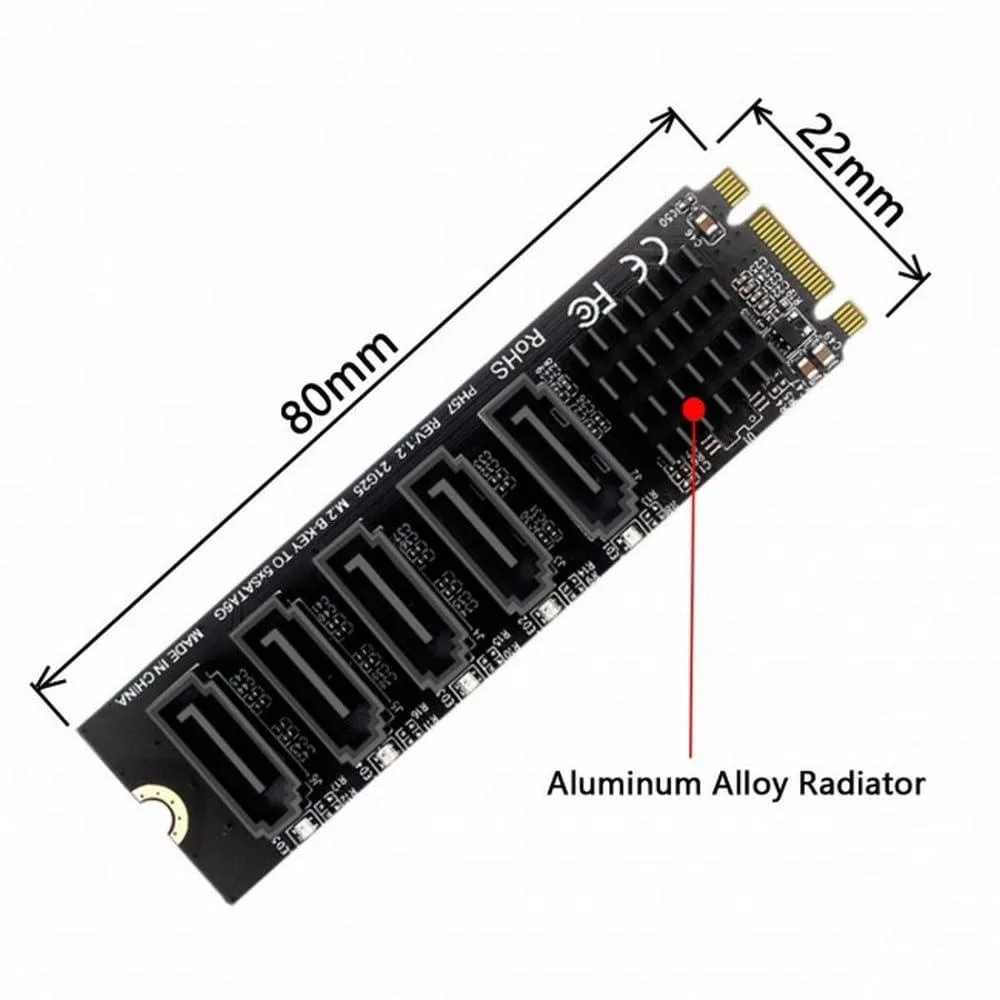

  • Lightweight 11-gram black adapter fits NGFF Key B+M 2280 slots

NGFF Key B+M 5-Port SATA Adapter

The Vszerda adapter converts a single NGFF Key B+M slot into five SATA 3.0 ports using the JMB575 controller. It targets builders who need to attach multiple 2.5-inch drives to a compact board or mini-PC that only offers an M.2 socket. The compact black PCB weighs 11 grams and fits a 2280-length slot.

Check M-Key Slot and Port Multiplier Support

Verify that your motherboard or laptop provides an M.2 slot wired for Key B+M SATA signalling, not PCIe only. The host must also support SATA Port Multiplier revision 1.2 or Port Select revision 1.0 so all five drives appear to the operating system. Without that support only the first drive may be visible.

JMB575 Controller with Cascaded Ports

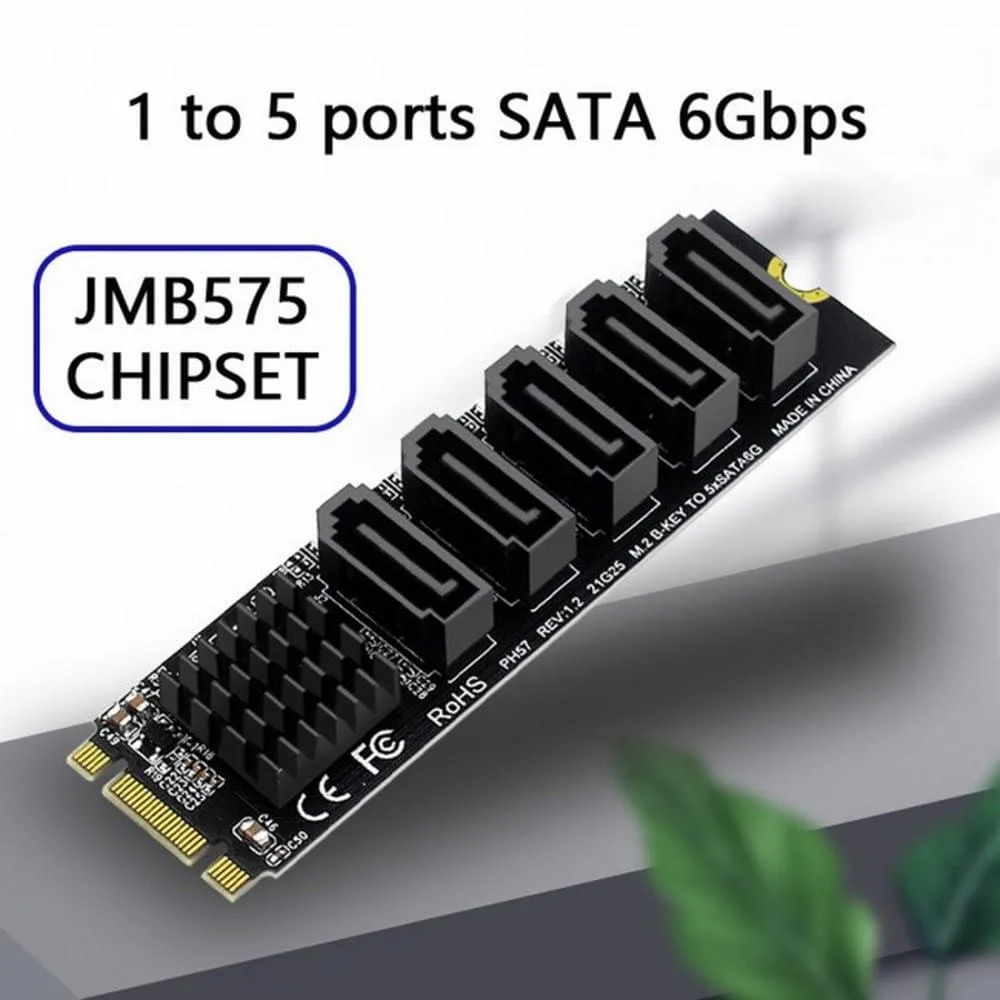

The JMB575 integrates five independent SATA 6 Gbps channels and a microprocessor on one chip, enabling cascaded operation for up to five drives. It complies with Port Multiplier 1.2 and Port Select 1.0, plus BIST and loopback diagnostics. Five standard SATA data connectors face upward for straightforward cable routing in tight chassis.

Highlights

  • Connect five SATA drives through one M.2 slot using JMB575 port-multiplier
  • Single-chip JMB575 handles five independent SATA 3.0 channels with on-board micro-processor
  • Meets Serial ATA Port Multiplier Spec 1.2 for reliable multi-drive operation
  • Complies with Port Select Spec 1.0 and supports BIST and loopback diagnostics
  • Lightweight 11-gram black adapter fits NGFF Key B+M 2280 slots

Specifications

BrandVszerda
ColorBlack
Weight11 grams

Questions about this item

Does the Vszerda NGFF Key B+M to SATA 3.0 5-Port Adapter include SATA data cables or power cables in the box?

The adapter board weighs 11 grams and provides five SATA 3.0 ports; SATA data cables and drive power connections are not included and must be sourced separately.

Which version of the JMB575 controller should I choose for a motherboard with an NGFF Key B+M slot?

This model uses the JMB575 controller in a 2280 form factor designed specifically for NGFF Key B+M slots, delivering five independent SATA 6Gbps channels from that single interface.

What does the 6Gbps SATA 3.0 rating mean when five drives are connected through the single NGFF Key B+M link?

The JMB575 supports Port Multiplier Revision 1.2 and Port Select Revision 1.0, allowing up to five drives to share the host link with command-based or FIS-based switching across the 5 ports.
