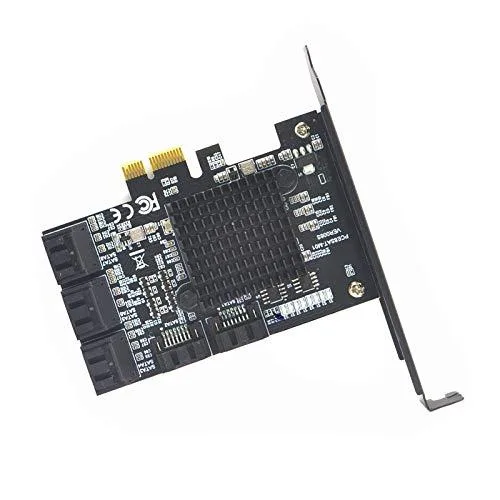

Vszerda 8-port SATA 3.0 PCIe card with six blue straight cables and low-profile bracket

Vszerda

Vszerda 8 Port SATA 3.0 PCIe Card 6 Blue Straight Cables Low Profile Bracket

SKU CH-4EFY-ZHM5N

Adds eight SATA 3.0 ports via a PCIe x1 slot with six blue straight cables and a low-profile bracket

  • Color6*Blue Straight Cable
  • Conductorcopper
  • 8 ports add storage capacity with Marvell 88SE9215 chip
  • 6 Gbps transfer speed via SATA 3.0 specification
  • PCIe x1 slot fits x2 x4 x8 x16 slots
  • Low profile bracket suits compact cases
  • 6 blue straight copper cables included for quick setup

Eight-port SATA 3.0 expansion card

This Vszerda adapter adds eight SATA 3.0 ports through a single PCI-Express x1 slot. It uses the Marvell 88SE9215 chip and includes a low-profile bracket for small-form-factor cases. Six blue straight SATA cables are supplied in the box. The card suits builders who need more drive connections than the motherboard provides.

Check your motherboard and drives

Verify that a free PCI-Express x1 slot is available; the card also fits x2, x4, x8 and x16 slots. Confirm that your target drives use the SATA interface and that your operating system is among the supported versions. The controller operates in AHCI or IDE mode, so ensure the system disk was installed in AHCI mode if you intend to boot from this card.

Fits a standard build

The card draws power from the PCI-Express slot and requires no extra power connector. Its low-profile bracket allows installation in slim chassis without blocking adjacent slots. Hot-swap capability lets you add or remove drives without shutting down. The on-board heat sink keeps the controller cool during sustained transfers.

Highlights

  • 8 ports add storage capacity with Marvell 88SE9215 chip
  • 6 Gbps transfer speed via SATA 3.0 specification
  • PCIe x1 slot fits x2 x4 x8 x16 slots
  • Low profile bracket suits compact cases
  • 6 blue straight copper cables included for quick setup

Specifications

BrandVszerda
Color6*Blue Straight Cable
Conductorcopper

Questions about this item

Does the card come with cables and a low-profile bracket, or do I need to buy them separately?

The package includes six blue straight SATA cables and a low-profile bracket, so no extra cables or brackets are required.

Which Marvell chip does this card use, and does it support eight SATA ports?

It uses the Marvell 88SE9215 chip and provides eight SATA 3.0 ports, although only six cables are supplied.

What does the 6.0 Gbps rating mean when the card is installed in a PCIe 2.0 x1 slot?

Each port can reach 6.0 Gbps, but the single PCIe 2.0 lane caps total throughput at about 4 Gbps, so simultaneous transfers on all eight drives will share that bandwidth.
