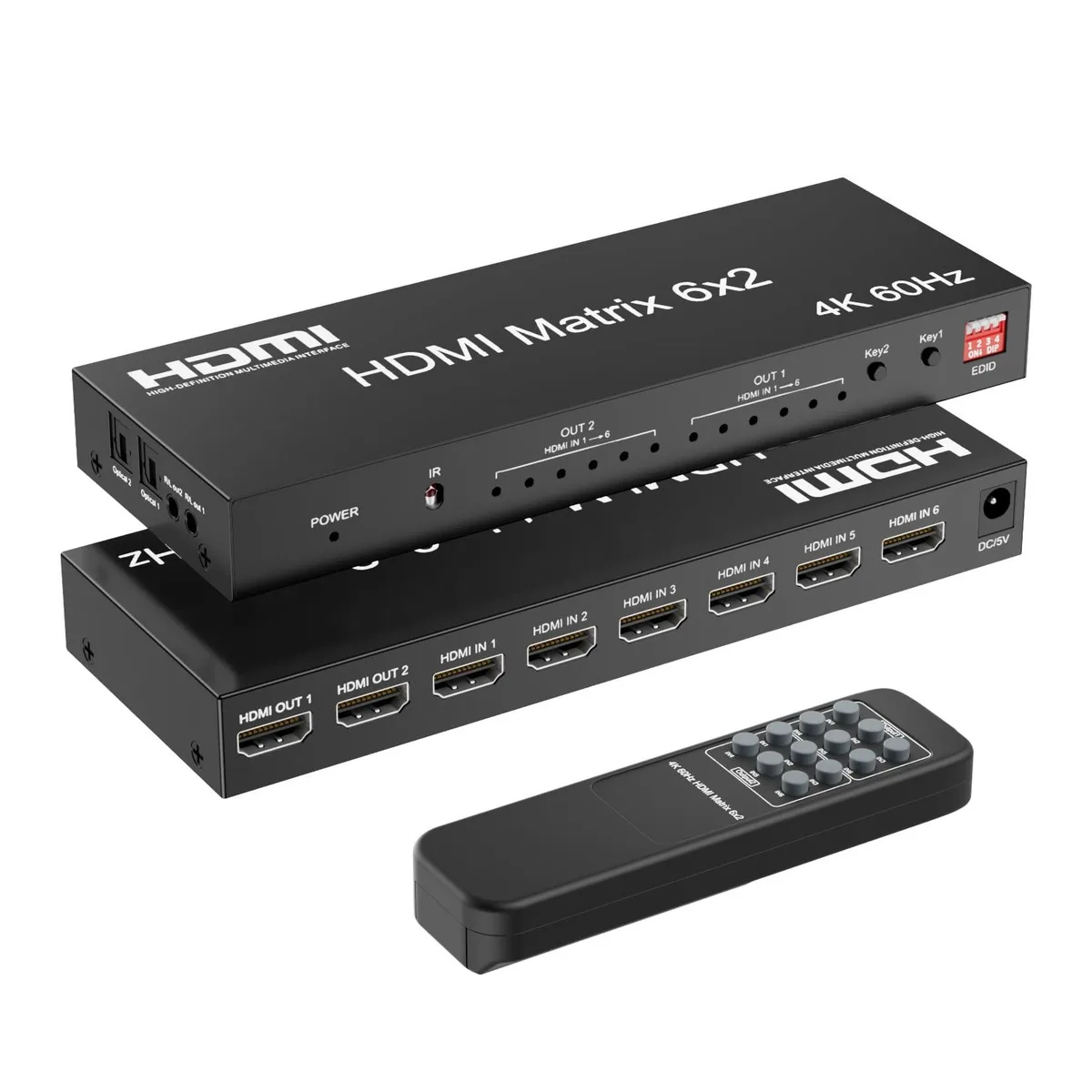

Black rectangular HDMI matrix switch, six inputs two outputs, remote included

Vszerda

Vszerda 6x2 HDMI 2.0 Matrix Switch Splitter with Audio Extractor

SKU CH-XG7N-2JZJ5

Distributes six HDMI sources to two displays at 4K 60 Hz with 18 Gbps bandwidth and extracts audio via optical SPDIF and 3.5 mm outputs

  • TypeHDMI
  • Input Connector8
  • Output ConnectorFemale
  • Maximum Resolutions4K 6X2 Matrix with EDID
  • Dimensions7.5 in x 4.7 in x 3.5 in
  • Weight0.54 kilograms
  • Distributes six HDMI sources to two independent displays
  • 4K at 60 Hz via 18 Gbps HDMI 2.0 bandwidth
  • Extracts audio to optical SPDIF and 3.5 mm analog outputs
  • EDID management ensures correct resolution handshake
  • IR remote selects any input for either output

Six-input two-output matrix

The Vszerda 6x2 HDMI 2.0 matrix switch routes six source devices to two displays independently. It suits installers who need simultaneous but different content on two screens in a home theatre, meeting room or digital-signage setup. Each output can show any input without affecting the other. Buyers who need more than two simultaneous zones should look elsewhere.

Installation and common issues

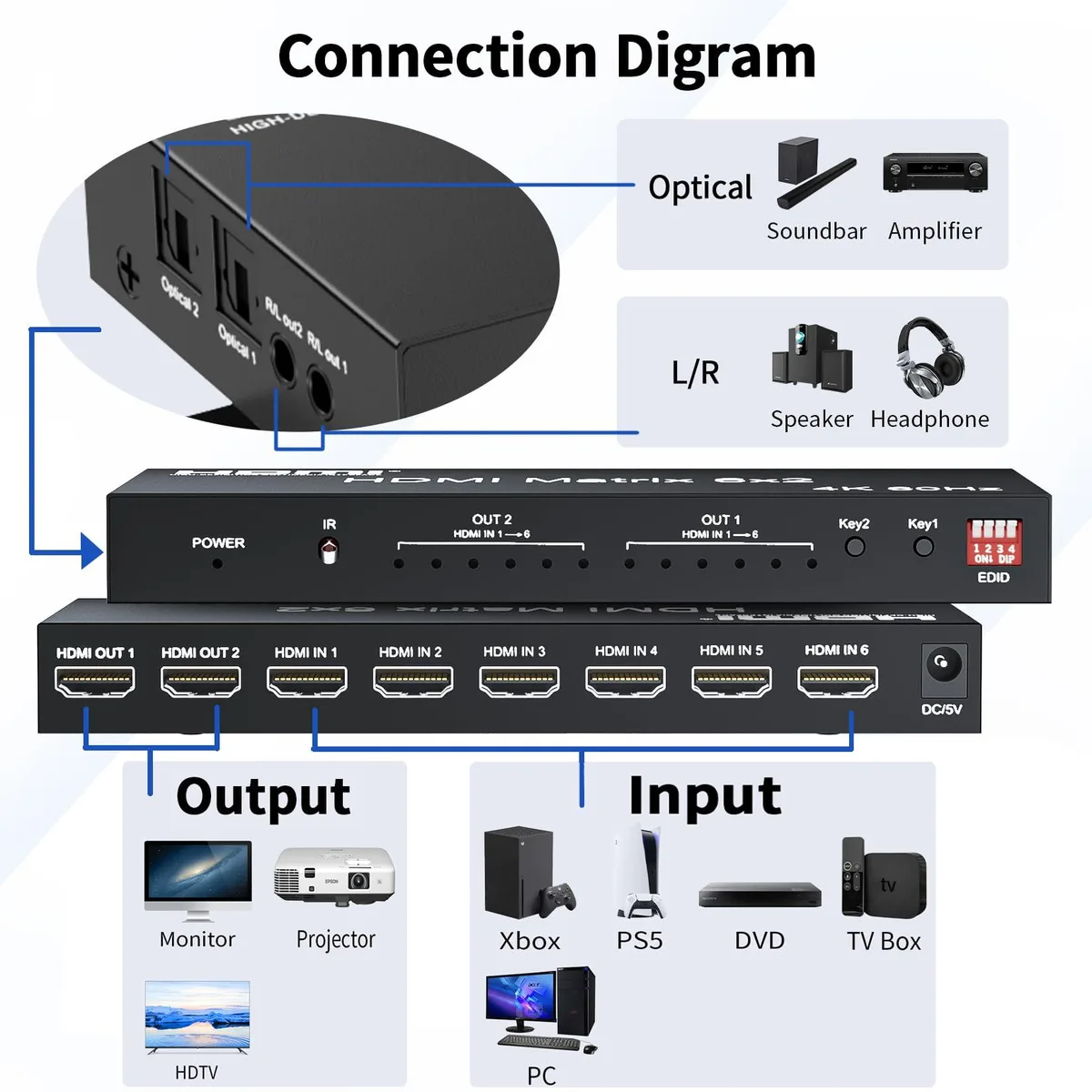

Connect sources and displays with certified HDMI 2.0 cables that use pure copper conductors and all nineteen pins wired. The unit does not pass CEC commands, so device control must be handled separately. When a 2.1 source or display is used, manually limit the resolution to 4K at 60 Hz or no signal will appear. IR remote and front-panel buttons select inputs for each output.

Sustained-load behaviour

The switch maintains 18 Gbps bandwidth continuously for 4K 60 Hz HDR and Dolby Vision signals across both outputs. Audio extraction to dual optical SPDIF and 3.5 mm analogue ports remains stable during long sessions, supporting LPCM, Dolby TrueHD and DTS-HD formats. No active cooling is present, so ensure adequate ventilation in enclosed racks.

Highlights

  • Distributes six HDMI sources to two independent displays
  • 4K at 60 Hz via 18 Gbps HDMI 2.0 bandwidth
  • Extracts audio to optical SPDIF and 3.5 mm analog outputs
  • EDID management ensures correct resolution handshake
  • IR remote selects any input for either output

Specifications

BrandLUKFOCAB
ModelSFXHD6X2-PA
Part NumberHDMI Matrix Switch 6X2
TypeHDMI
Input Connector8
Output ConnectorFemale
Maximum Resolutions4K 6X2 Matrix with EDID
Dimensions7.5 in x 4.7 in x 3.5 in
Weight0.54 kilograms

Questions about this item

How can I confirm the matrix is passing 4K@60Hz correctly after connecting my sources?

Verify the display shows 3840*2160 at 60Hz in its info menu, ensure HDR or Dolby Vision indicators appear if the content supports them, and check that both outputs switch independently via the remote without signal loss.

What comes in the box and which cables must I provide myself?

The unit includes the 6x2 matrix, an IR remote, and a power adapter. You must supply six HDMI input cables and two HDMI output cables that are certified for 18Gbps bandwidth, plus any optical or 3.5mm audio cables for extracted sound.

Should I choose a different version if I only need stereo audio extraction?

This model already provides both optical SPDIF and 3.5mm stereo outputs on each zone, so no separate version is required; simply use the 3.5mm jack for analog stereo and leave the optical port unused.
