Vszerda
Vszerda 4K HDMI Multiviewer Switch 9x1 10 Display Modes
Displays up to nine 4K 30 Hz or 1080p 60 Hz HDMI sources on one screen with ten selectable layouts and seamless switching via buttons or IR remote
- View 9 sources simultaneously on one screen with 10 display modes
- Switch between 9 HDMI inputs seamlessly without signal interruption
- Supports 4K at 30 Hz and 1080p at 60 Hz resolution
- Compatible with HDMI 1.4 and HDCP 1.4 protected content
- Control via front-panel buttons or included IR remote

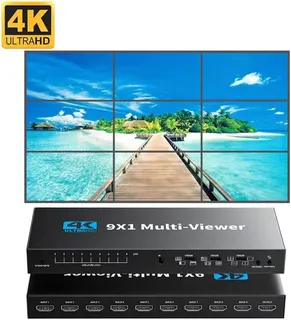

Nine-Input HDMI Multiviewer
The Vszerda 9x1 HDMI multiviewer accepts nine HDMI sources and combines them onto a single display. It is built for installers, security operators and multi-system users who need simultaneous visibility of every feed. The unit switches cleanly between full-screen and multi-window layouts without interrupting the output signal. IR remote and front-panel buttons give direct control over the active layout.
HDMI 1.4 and HDCP 1.4 Interface Limits
Video passes through an HDMI 1.4 pathway limited to a 10.2 Gbps bandwidth ceiling. HDCP 1.4 protection is supported, so protected sources will display correctly. The output tops out at 3840x2160 at 30 Hz; higher refresh rates at 4K are not possible over this interface. Colour depth is offered at 24, 30 or 36 bits per pixel depending on the source timing.

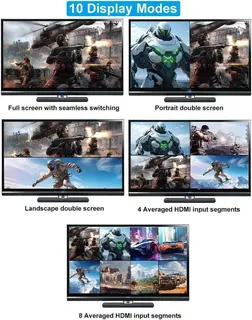

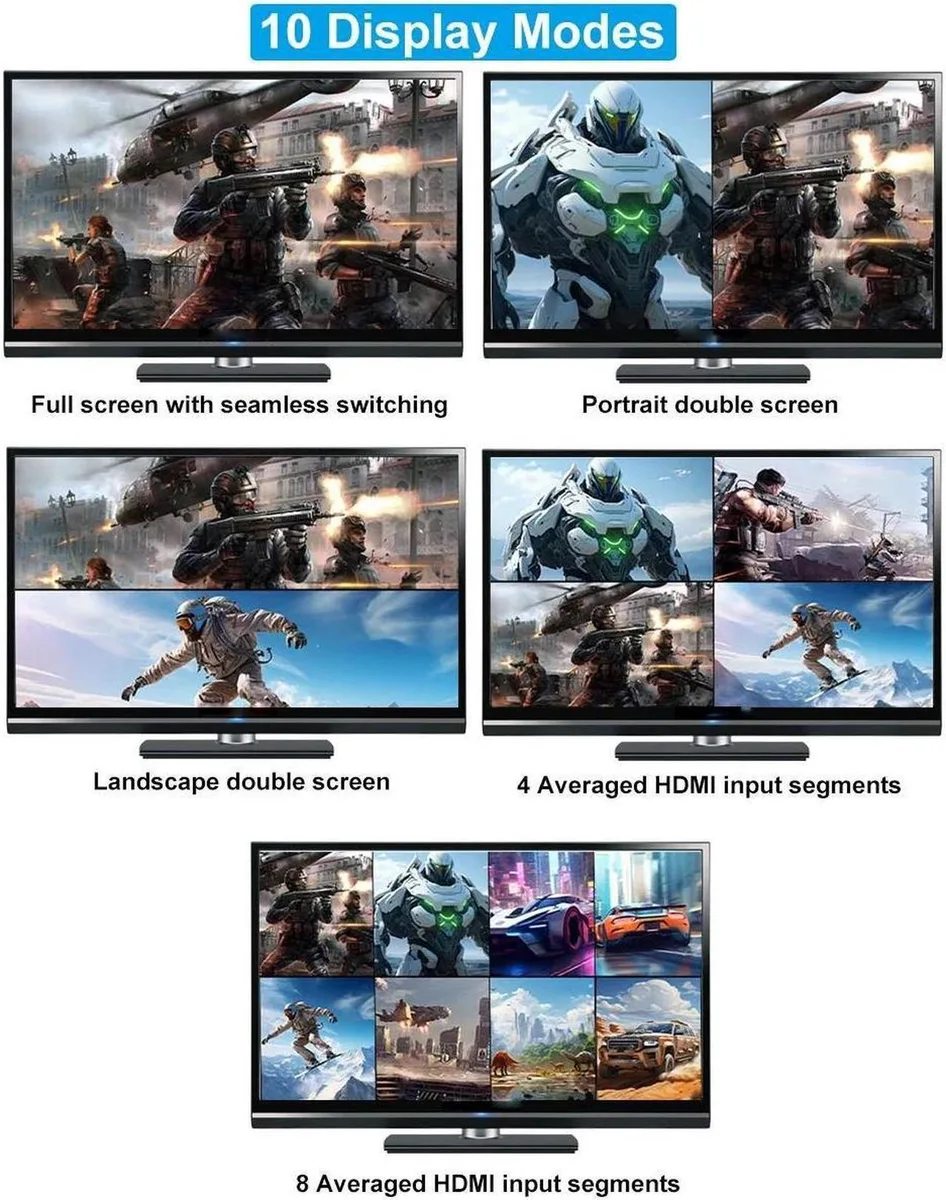

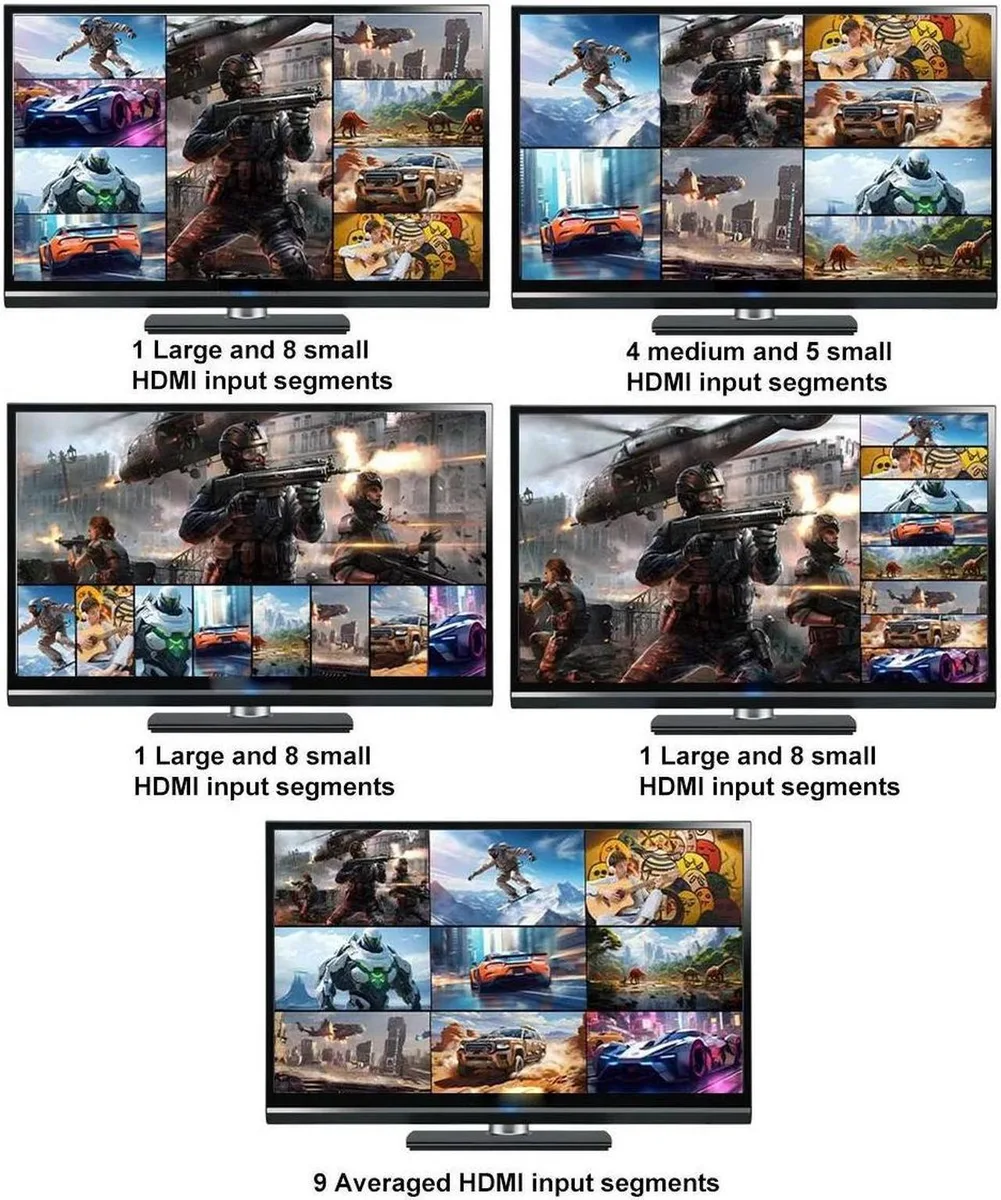

Ten Layout Modes and Resolution Headroom
Ten preset screen-division modes arrange the nine inputs in grids, picture-in-picture or full-screen views. The scaler handles 480i, 480p, 576i, 567p, 720p, 1080i and 1080p at 60 Hz natively. At 4K 30 Hz the combined image fits within the bandwidth limit, but nine simultaneous 4K 60 Hz streams would exceed the 10.2 Gbps pipe. Users needing 4K 60 Hz per window must reduce the active input count or accept a lower output refresh rate.
Highlights
- View 9 sources simultaneously on one screen with 10 display modes
- Switch between 9 HDMI inputs seamlessly without signal interruption
- Supports 4K at 30 Hz and 1080p at 60 Hz resolution
- Compatible with HDMI 1.4 and HDCP 1.4 protected content
- Control via front-panel buttons or included IR remote
Specifications
No published specifications for this item yet.
Questions about this item
Which display mode should I choose for nine sources?
The unit offers ten viewing modes; one shows all nine inputs tiled on a single screen, while the others let you pick any single source full-screen.
What does the 4K 30 Hz rating mean for my monitor?
The switch passes 3840×2160 at 30 Hz and 1080p at 60 Hz, so a 4K display will refresh at 30 Hz when all nine sources are active.
Does the HDMI 1.4 connection limit colour depth or bandwidth?
The link runs at up to 10.2 Gbps and supports 24, 30 or 36 bit colour within the HDMI 1.4 and HDCP 1.4 specification.
