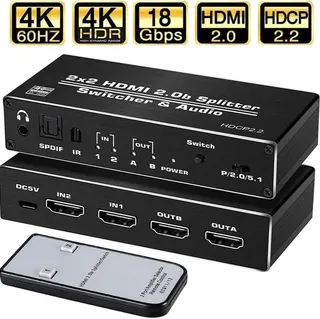

Small black box with HDMI ports and audio outputs, remote included

Vszerda

Vszerda 2x2 HDMI Switch Splitter Audio Extractor Optical SPDIF 3.5mm AUX 4K@60Hz HDCP 2.2

SKU CH-6RBP-Z2TBF

Two HDMI sources connect to two displays at 4K 60 Hz with optical and 3.5 mm audio extraction

  • Extract audio via optical SPDIF or 3.5 mm AUX output
  • Switch two HDMI sources to two displays with IR remote or button
  • HDMI 2.0b and HDCP 2.2 compliant for protected 4K content
  • Downscaling lets one screen show 4K while the other shows 1080p
  • 18 Gbps bandwidth carries 4K 60 Hz YUV 4:4:4 up to 10 metres

2x2 HDMI matrix with audio extraction

The Vszerda 2x2 HDMI switch splitter routes video and audio from two HDMI sources to two displays at the same time. It supports 4K at 60 Hz, HDR10 and 3D formats with HDMI 2.0b and HDCP 2.2 compliance. An IR remote and a front button let you switch sources without cable swaps. Optical SPDIF and 3.5 mm AUX outputs extract audio for external sound systems.

Replaces basic splitters that mirror one source

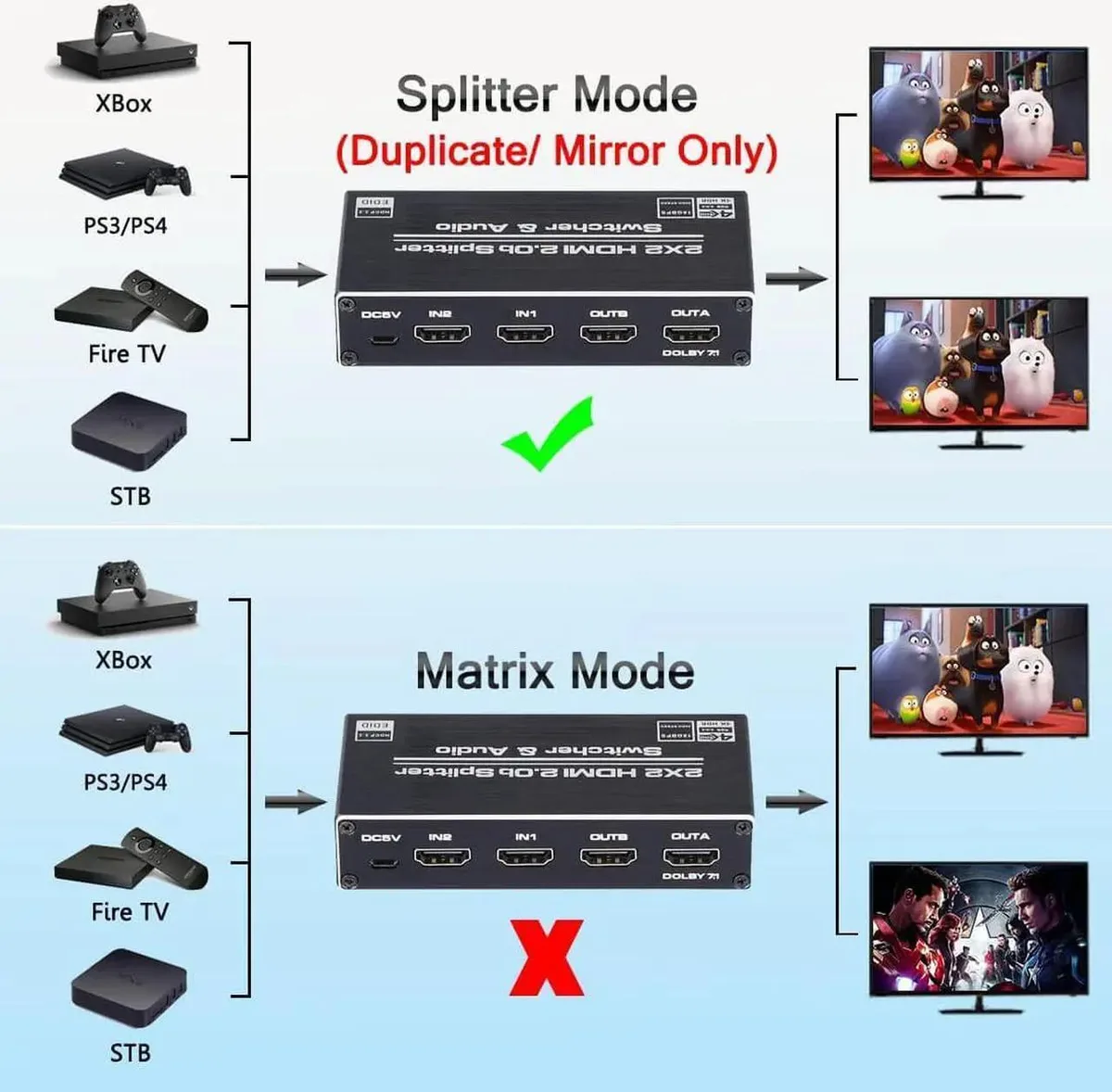

A simple 1x2 splitter cannot select between two sources or send different resolutions to each display. This matrix adds source switching, 4K-to-1080p downscaling on one output while the other keeps 4K, and audio breakout for receivers that lack HDMI inputs. The upgrade is worth it when you need to share a console and a media player across two screens with independent audio routing.

Limited to HDMI 2.0b 18 Gbps bandwidth

The 18 Gbps link caps 4K 60 Hz signals at 4:4:4 colour sampling and 8-bit depth; 10-bit or 12-bit HDR at 4K 60 Hz 4:4:4 exceeds the pipe. Cable runs over 10 metres at 4K 60 Hz or 20 metres at 1080p may lose stability. DTS 7.1 and multichannel PCM beyond the listed formats are not supported, and the matrix only mirrors content — it cannot extend a desktop across both outputs.

Highlights

  • Extract audio via optical SPDIF or 3.5 mm AUX output
  • Switch two HDMI sources to two displays with IR remote or button
  • HDMI 2.0b and HDCP 2.2 compliant for protected 4K content
  • Downscaling lets one screen show 4K while the other shows 1080p
  • 18 Gbps bandwidth carries 4K 60 Hz YUV 4:4:4 up to 10 metres

Specifications

No published specifications for this item yet.

Questions about this item

What size rack or shelf space does the 2x2 HDMI matrix need?

The unit is a compact box that sits on a shelf or desk; allow a few centimetres around the HDMI ports and the 3.5 mm jack for cable bend radius.

Which step do people miss when setting up the switcher with the IR remote?

Remove the plastic tab from the remote battery, aim at the front IR window, then press the input-select button until the LED shows the desired source for each output.

What upkeep will the optical SPDIF and 3.5 mm audio outputs need over time?

Keep the optical port dust caps on when not in use and wipe the 3.5 mm jack with a dry brush; no internal parts require service.
