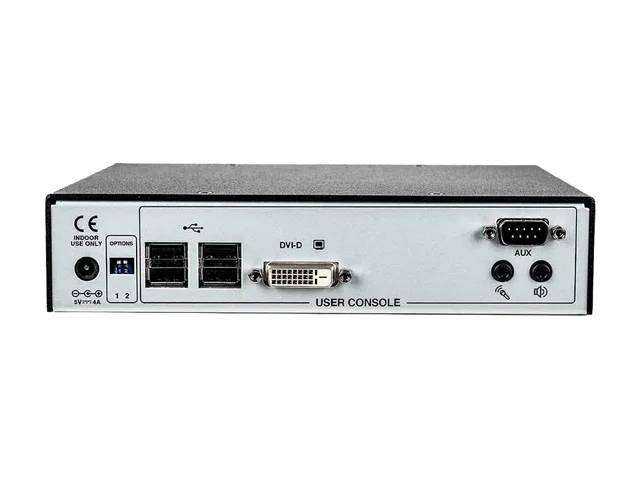

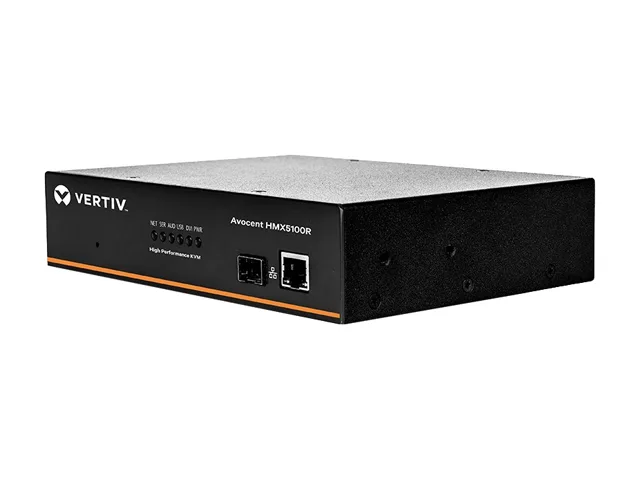

Vertiv HMX5100R-001 KVM receiver unit with DVI-D and RJ45 ports

Vertiv

Vertiv HMX5100R-001 KVM Extender Receiver DVI-D 1920x1200

SKU CH-F27N-D0FAE MPN HMX5100R-001

A KVM extender receiver delivering 1920x1200 DVI-D video and digital audio over IP with four USB ports and dual RJ-45 links

  • TypeConsumer Electronics
  • Monitor Connections1 x DVI-D
  • Video Resolution1920x1200
  • FeaturesEliminates Distance Limitations within the LAN - Allows comp

Style Single Receiver

Struck-through versions exist but are not stocked here.

  • Remote desktop access over IP network
  • DVI-D video at 1920x1200 resolution
  • Digital audio support for multimedia
  • Four USB ports for peripheral connectivity
  • Dual RJ-45 ports extend reach to 328.08 ft

Single DVI-D Receiver for IP KVM

The Vertiv HMX5100R-001 is a KVM extender receiver that delivers 1920x1200 video and digital audio over a wired LAN. It is built for operators who need at-the-desktop access to computing resources located in secure or temperature-controlled rooms. The unit supports one remote user with keyboard, mouse and USB peripheral connectivity.

Check Network and Peripheral Ports Before Ordering

Verify that your infrastructure provides two RJ-45 network ports and four USB ports at the receiver location for full functionality. The system requires a compatible HMX transmitter on the host side and a standard IP network to bridge the distance. Confirm the target computer outputs DVI-D video at 1920x1200 resolution for native compatibility.

Sustained Operation in Demanding Environments

Designed for continuous use in control rooms, broadcast editing and financial trading desks, the receiver maintains real-time video quality and control responsiveness over long sessions. Switching between sources occurs in less than a second without visible degradation. The wired IP connection eliminates the distance limitations of direct cabling up to 328.08 ft.

Highlights

  • Remote desktop access over IP network
  • DVI-D video at 1920x1200 resolution
  • Digital audio support for multimedia
  • Four USB ports for peripheral connectivity
  • Dual RJ-45 ports extend reach to 328.08 ft

Specifications

BrandAvocent
ModelHMX5100R-001
TypeConsumer Electronics
Monitor Connections1 x DVI-D
Video Resolution1920x1200
FeaturesEliminates Distance Limitations within the LAN - Allows computers and users to be located anywhere on the network
High-Quality DVI Video and Digital Audio - For intensive graphic and audio applications
Centralized Management - Via a single console, including access, desktop pooling and reporting
Centralized, User-Rights Management - HMX system allows user administration and authentication through AD, LDAP, TACACS+, RADIUS, RSA SecureID and NT
Greater Security - 128bit AES encryption for secure access
No Dedicated Cabling - Removes the need for dedicated cabling between user and compu
Shipping weight2.27 kg
Package size406 × 356 × 152 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the receiver include the SFP module and transmitter, or must they be purchased separately?

The receiver ships with the unit and its power supply; the SFP transceiver and matching transmitter are sold separately.

When should I choose the single-receiver HMX5100R-001 over a multi-user model?

Choose this model when only one remote operator needs access to a target computer over the IP network.

What does the 1920x1200 resolution mean for my daily workflow?

It delivers a full WUXGA desktop image at the remote console with digital audio and USB peripheral support.
